Connecting the AV Receiver—Continued
Connecting the Speaker Cables
FRONT SPEAKERS A
OTHERS

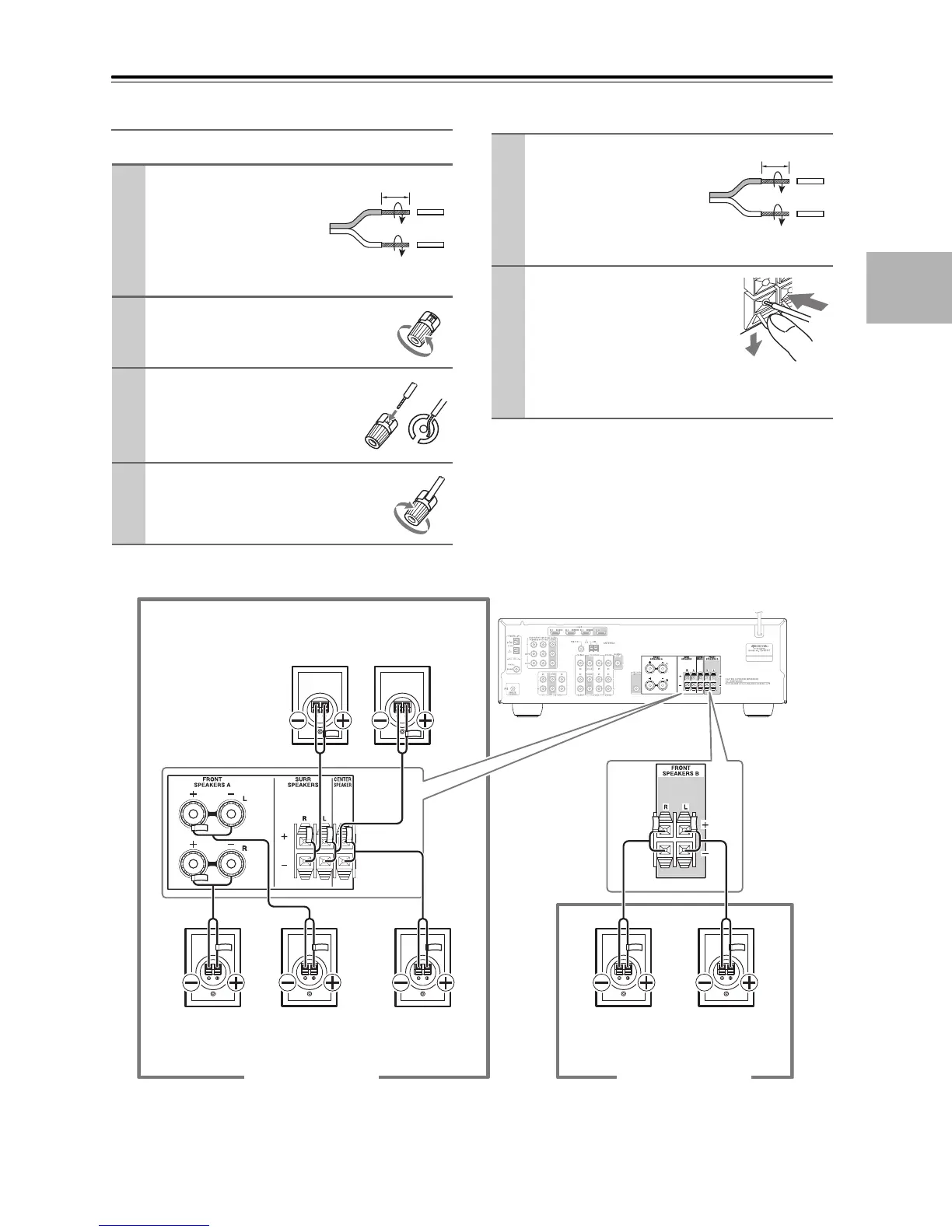

The following illustration shows which speaker should be connected to each pair of terminals.
1
Strip about 5/8" (15
mm) of insulation from
the ends of the
speaker cables, and
twist the bare wires
tightly, as shown.
2
Unscrew the terminal.
3
Fully insert the bare wire.
4
Screw the terminal tight.
5/8"(15mm)
1
Strip 3/8" (10 mm) of
insulation from the
ends of the speaker
cables, and twist the
bare wires tightly, as
shown.
2
While pressing the lever,
insert the wire into the
hole, and then release the
lever.
Make sure that the
terminals are gripping the bare wires, not
the insulation.
3/8"(10mm)
Front left
speaker A
Front right
speaker A
Center
speaker
Surround
left speaker
Front left
speaker B
Front right
speaker B
Surround
right speaker
Speaker Set B
Speaker Set A
