Connecting the AV Receiver—Continued
Note:
When it is connected at the same time as AUX INPUT AUDIO L/R terminal, the input of PORTABLE is given priority
to and outputted.

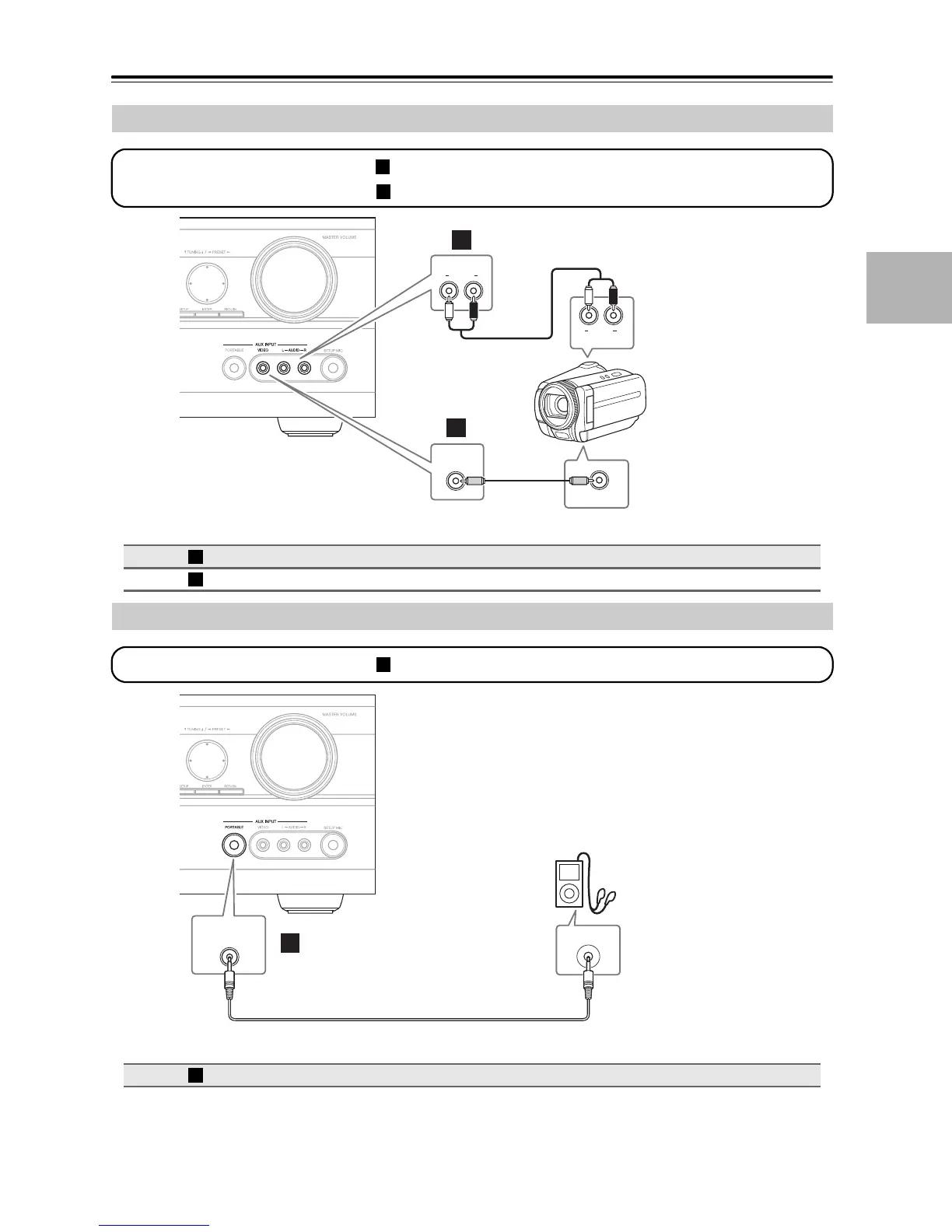

Connecting a Camcorder, Game Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO ⇐ Composite video output
AUX INPUT L-AUDIO-R ⇐ Analog audio L/R output
VIDEO OUT
AUDIO
AUX INPUT
L R
AUDIO
OUT
L R
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder,
game console,
etc.
A
a
Connecting a Portable Audio player
Connection AV receiver Signal flow Portable Audio Player
AUX INPUT PORTABLE ⇐ Analog audio Line output
AUX INPUT
PORTABLE
AUDIO LINE OUT
a
Step 1: Make the audio connection .
a
Portable
Audio Player
a
