8
Front & Rear Panels—Continued
For detailed information, see the pages in parentheses.
m DISPLAY button (40, 44)
Displays various information about the currently
selected input source.
n SETUP button
Opens and closes the setup menus.
o TUNING, PRESET, Arrow, and ENTER
buttons
When AM or FM is selected, the TUNING [q]/[w]
buttons are used for radio tuning, and the PRESET
[e]/[r] buttons are used to select radio presets (see
page 45). With the setup menus, they work as arrow
buttons and are used to select and set items. The
[ENTER] button is also used with the setup menus.
p RETURN button
Selects the previously displayed setup menu.
q MASTER VOLUME control (38)
Sets the volume of the AV receiver to Min, 1
through 79, or Max.
r PHONES jack (40)
This 1/4-inch phone jack is for connecting a
standard pair of stereo headphones for private
listening.
s MUSIC OPTIMIZER button (41, 61)
Turns the Music Optimizer on or off.
t Input selector buttons (38)
Select the following input sources: DVD/BD,
VCR/DVR, CBL/SAT, AUX, TV/TAPE, AM, FM,
CD.
u AUX INPUT (27, 48)
Used to connect a camcorder, game console, and so
on. There are input jacks for composite video and
analog audio.
PORTABLE (27):
Used to connect a portable Audio Player.
v SETUP MIC (34)
The Audyssey 2EQ Room Correction and Speaker
Setup microphone connects here.
For detailed information, see the pages in parentheses.
a A and B speaker indicators (13, 38)
Indicator A lights up when speaker set A is on.
Indicator B lights up when speaker set B is on.
b MUTING indicator (39)
Flashes while the AV receiver is muted.
c Listening mode and format indicators (49)
Show the selected listening mode and audio input
signal format.
d Tuning indicators (43)
FM STEREO (43):
Lights up when tuned to a stereo FM station.
RDS (46):
Lights up when tuned to a radio station that supports
RDS (Radio Data System).
AUTO (43):
Lights up when Auto Tuning mode is selected for
AM or FM radio. Goes off when Manual Tuning
mode is selected.
TUNED (43):
Lights up when tuned to a radio station.
e SLEEP indicator (39)
Lights up when the Sleep function has been set.
f Message area
Displays various information.
g Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: PCM.
h Audyssey indicator (34, 56)
Flashes during Audyssey 2EQ™ Room Correction
and Speaker Setup. Lights up when the “Equalizer
Settings” is set to “Audyssey”.

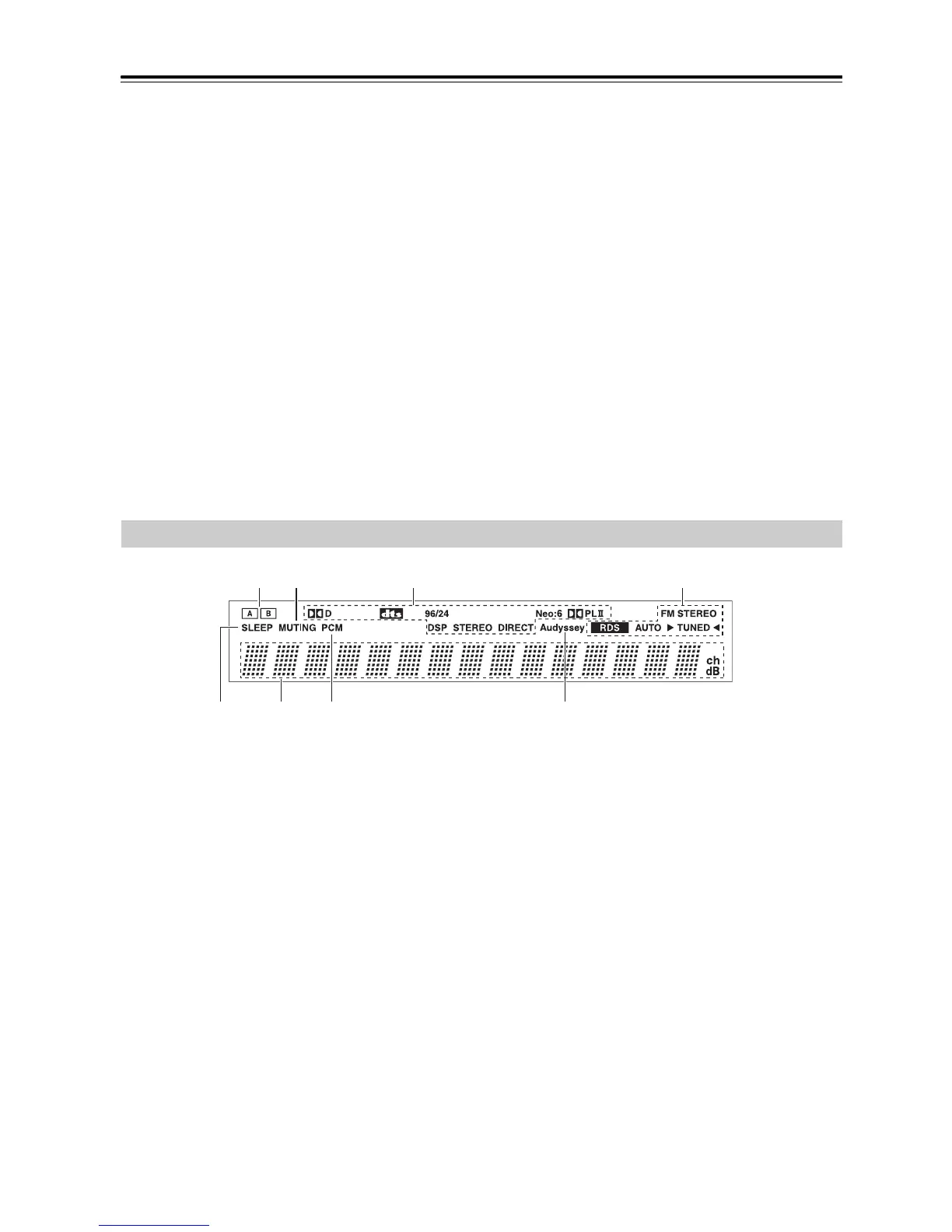

Display
a bc d
feh
g
