ontime AVC118 - J1-8: Cnc_Com; MOTION Signal Interface

SHENZHEN ONTIME TECHNOLOGY CO.LTD
11
CNC should begin the cutting motion. In case of serious
error occurred during the plasma cut, this signal will be
reset to high level. Active level: LOW.
Please refer to the MOTION signal interface circuit
illustration.
 J1-7: NC
 J1-8: CNC_COM
This is the common ground terminal of all above signals.

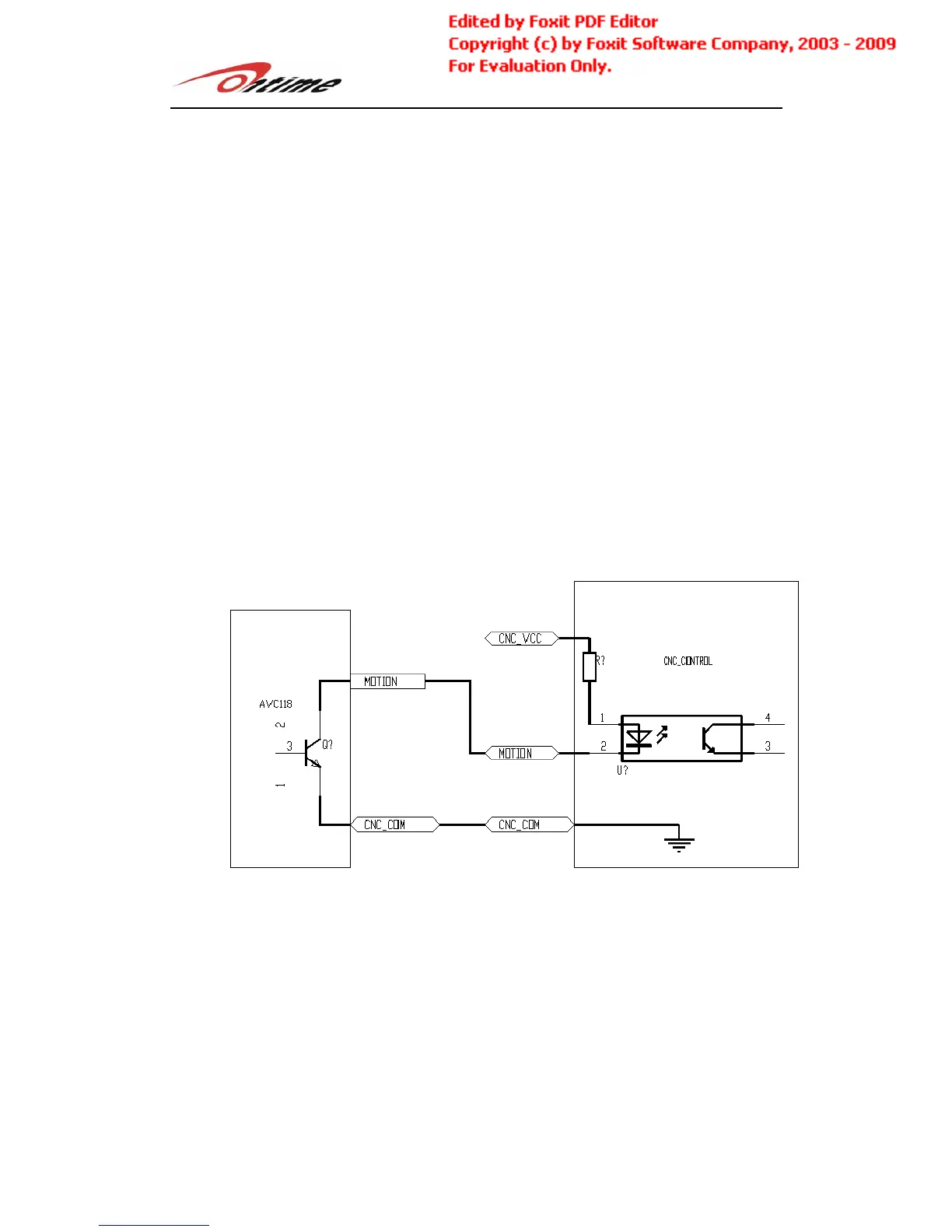

MOTION signal interface
