ontime AVC118 - Proximity Switch IHS Mode; J3-1: Proximity Switch Power Supply; J3-2: Proximity Switch Signal Input; J3-3: Proximity Switch Ground

SHENZHEN ONTIME TECHNOLOGY CO.LTD
13
Proximity switch IHS mode
Terminal: J3-1: +12V output, supply for proximity switch.
J3-2: proximity switch signal input.
J3-3: 0V, ground.
Proximity switch type:
NPN, normal open, sense distance 2mm.
If there is a short wire connected between terminal J3-2 and
j3-3, you should remove it before connecting the proximity
switch.
When more than one proximity switch used, the user can
design a proper interface board or refer to the simple series
connection illustration.

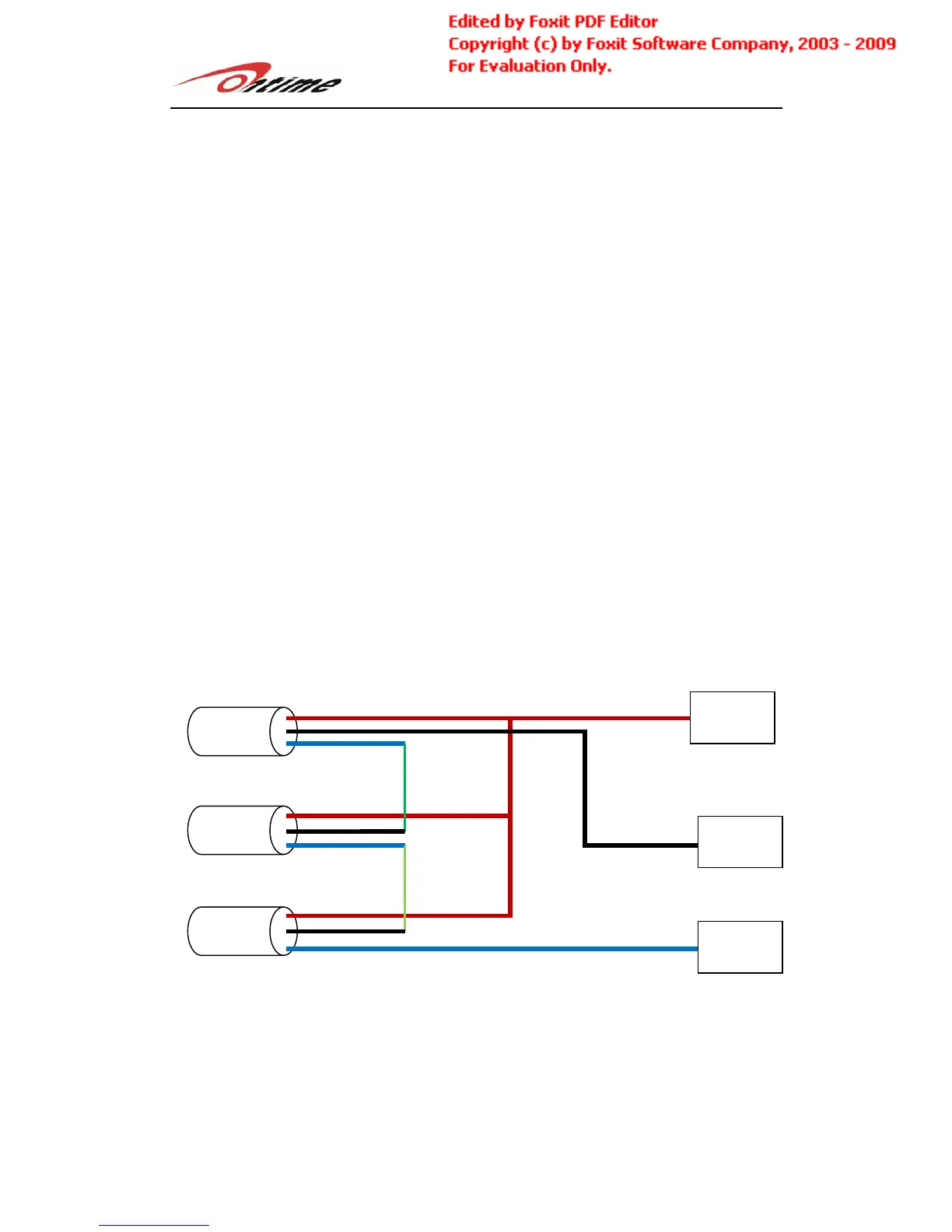

Simple series connection illustration.
DC24V+
DC24V-
SIGNAL
