2.8 Self Test
The Self-Test page helps the user to figure out whether the printer is operating normally. Below are some
general descriptions about the content of the Self-Test page.
Model: OD5+ (8 dot/mm)
Version: URC
Serial port : 96,N,8,1,XON/XOFF
################################
DRAM size : 2100K
User Memory: 4073K
Fmem: Used 000K, 000 Form(s)
Gmem: Used 000K, 000 Graphic(s)
Emem: Used 000K, 000 Font(s)
Amem: Used 000K, 000 AsianFont(s)
Code Page: 850
Speed: 3 Inch
Darkness: 10
Width: 640 dot
Length: 809 dot
Gap: 23 dot
Print Mode: Thermal Transfer
Reflective Sensor: ON (Detect OK)
LAN port : active
Network Settings: LAN ON-LINE
MAC address: 00-11-e5-01-51-63
IP protocol: dhcp
IP address: 192.168.1.2
Netmask: 255.255.255.0
Default gateway: 192.168.1.1
DNS: 192.168.1.10

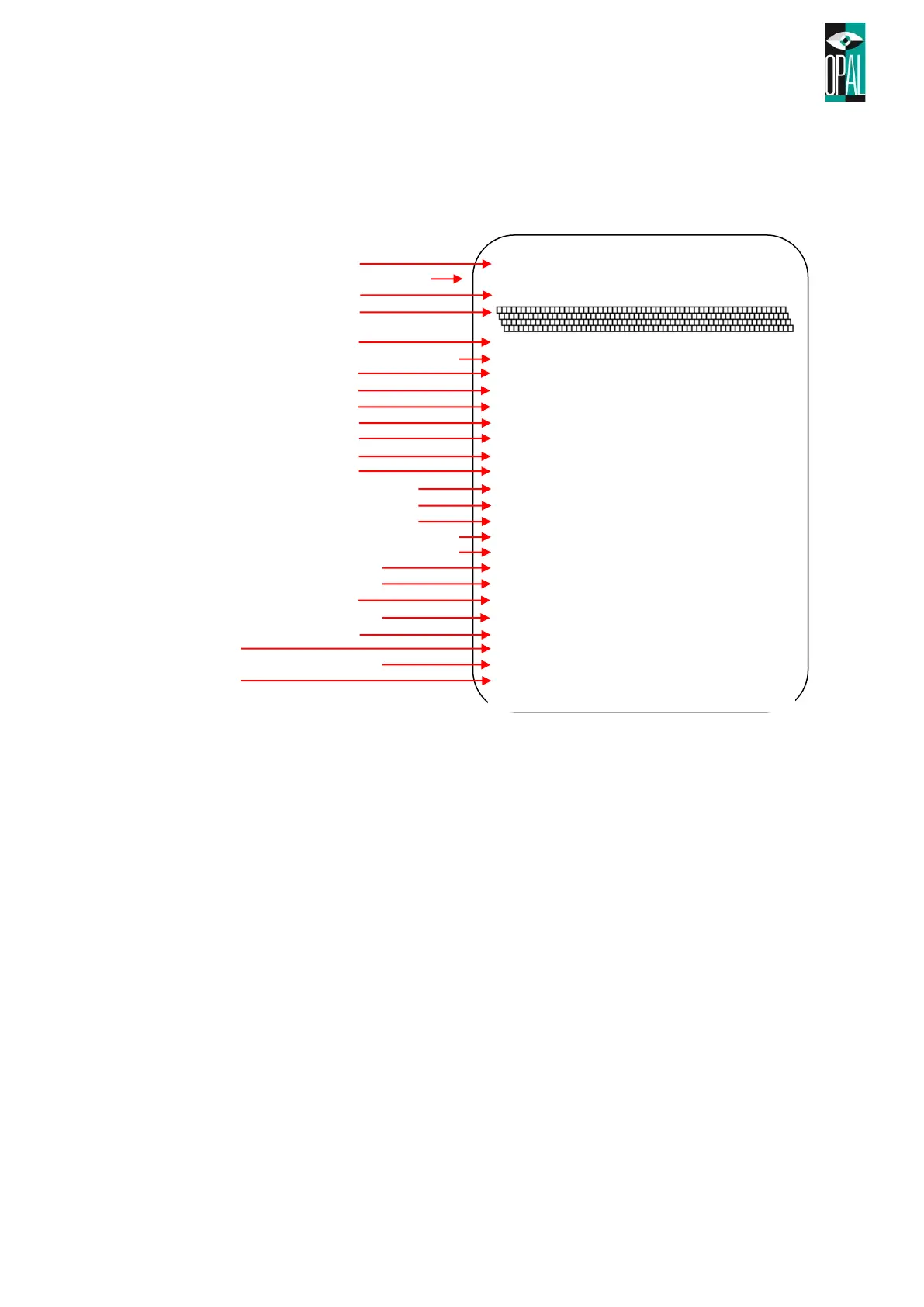

Model (printhead resolution)
Firmware version
Serial Port settings
Printhead test pattern
Cash-memory for print jobs
Available memory for forms, fonts and graphics
Number and size of forms
Number and size of graphics
Number and size of fonts
Number and size of asian fonts
Code Page (Standard 850)
Print speed
Print darkness
Label Width (640 dot / 8dot = 80mm)
Label Length (809 dot / 8dot = 101.1mm)
Label Gap (23 dot / 8dot = 2.9mm)
Print Mode: Thermal Transfer or Direct Thermal
Label Sensor: on/off (recognize label: ok/not ok)
LAN Port State (LAN active, USB inactive)
Network cable conected or not
MAC-Address of the ethernet card
DHCP or static IP-Protocol activ
IP-Address of the ethernet-card
Network mask
Default gateway of the network
DNS-Server
