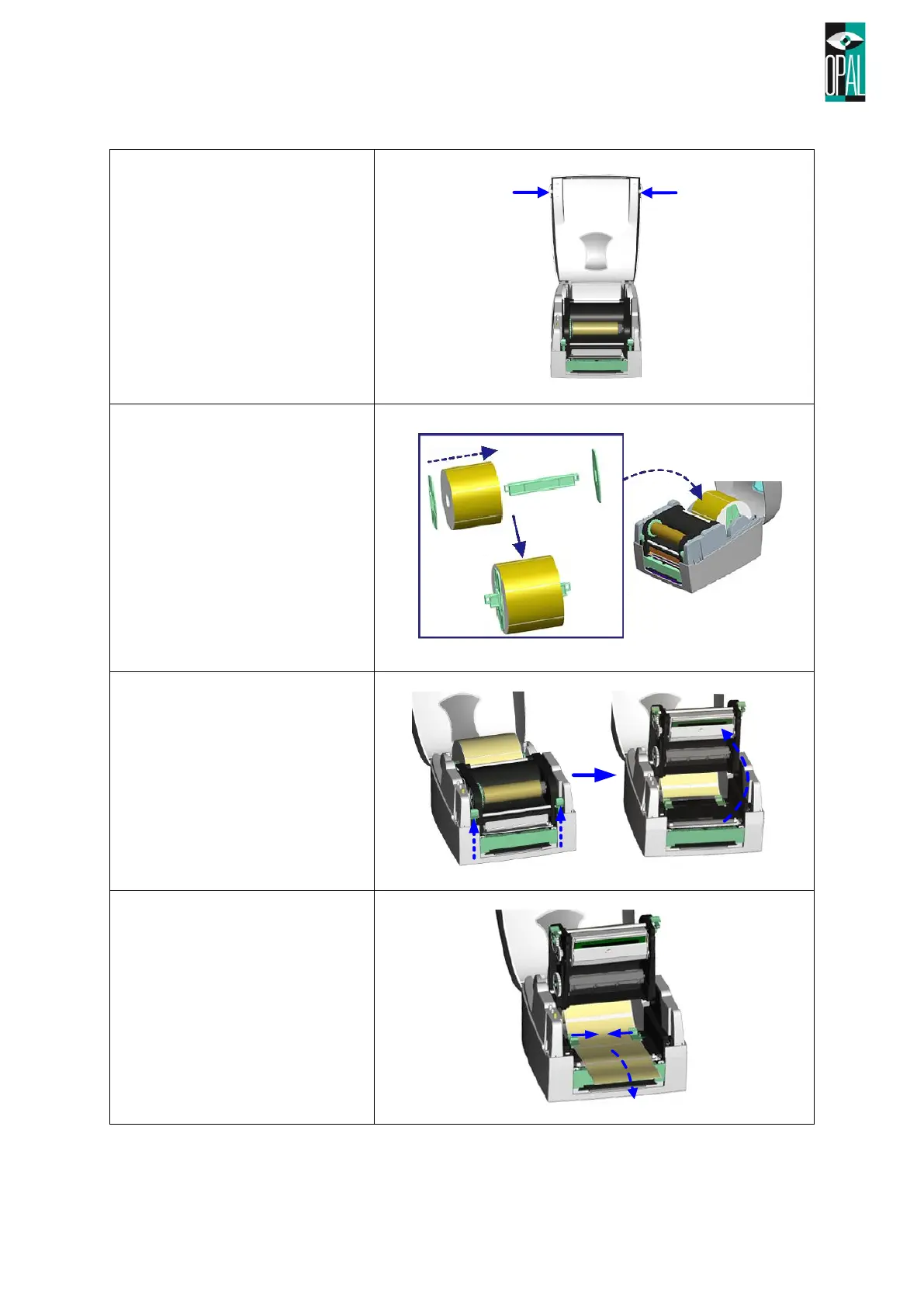

2.3 Label Installation with Stripper
1. Open the top cover by
pressing the Cover
Open Buttons on both
sides.
2. Place the label stock on
the label supply hub,
attach the guide plates
to the label stock holder.
Correct Placement is
shown in chapter 2.4
3. Loosen and lift the
printing mechanism by
pressing the locking
tenons.
4. Feed the label through
the Label Guides.
5. Align the Label Guides
to the label edge.
