2.2 Label Installation

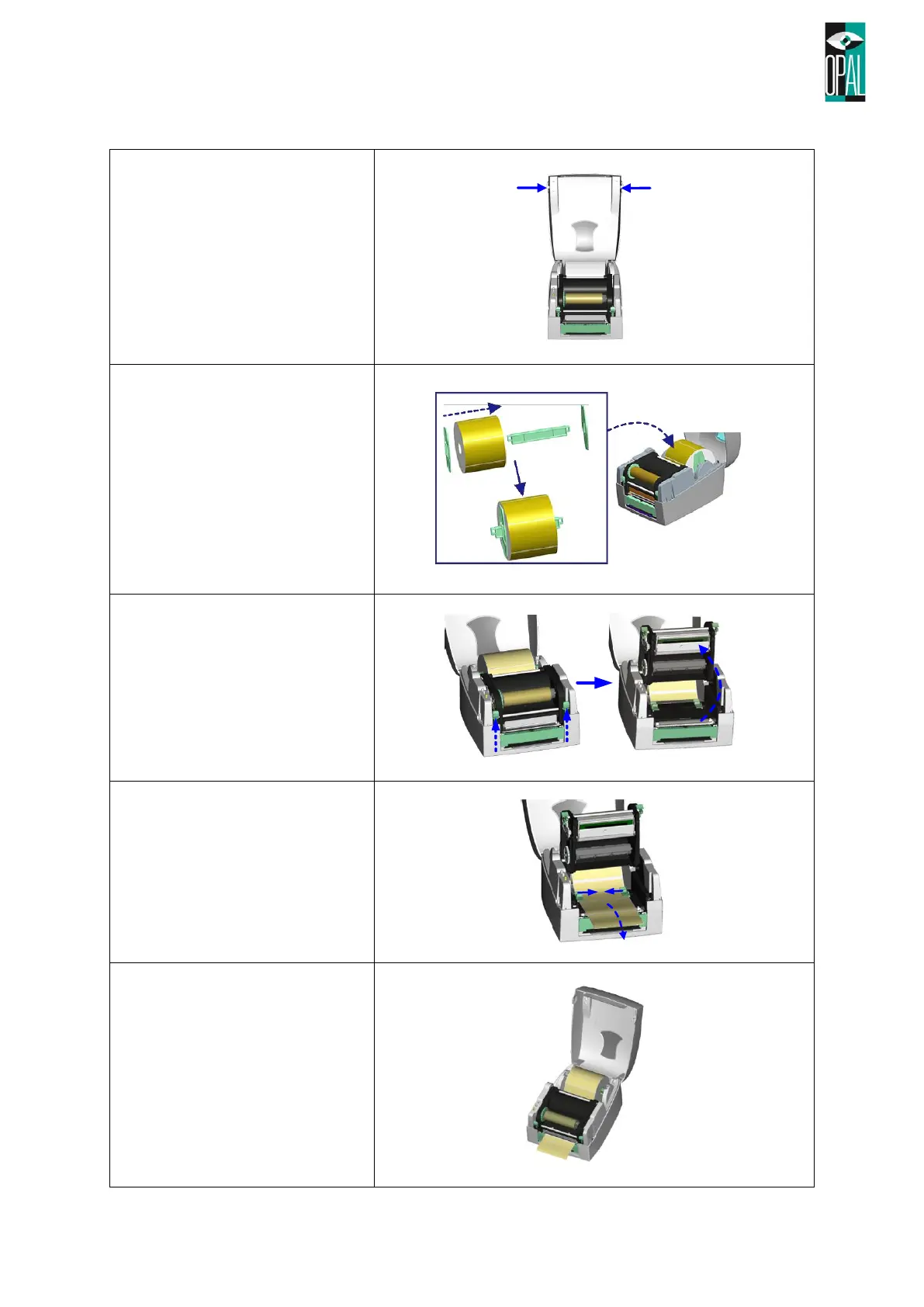

1. Open the top cover by
pressing the Cover
Open Buttons on both
sides
2. Place the label stock on
the label supply hub,
attach the guide plates
to the label stock holder.
Correct Placement is
shown in chapter 2.4
3. Loosen and lift the
printing mechanism by
pressing the locking
tenons.
4. Feed the label through
the two Label Guides to
the Tear-off Bar.
5. Align the label guides to
the label edge.
6. Close the printing
mechanism from the top
to finish label
installation.
