123Climate control

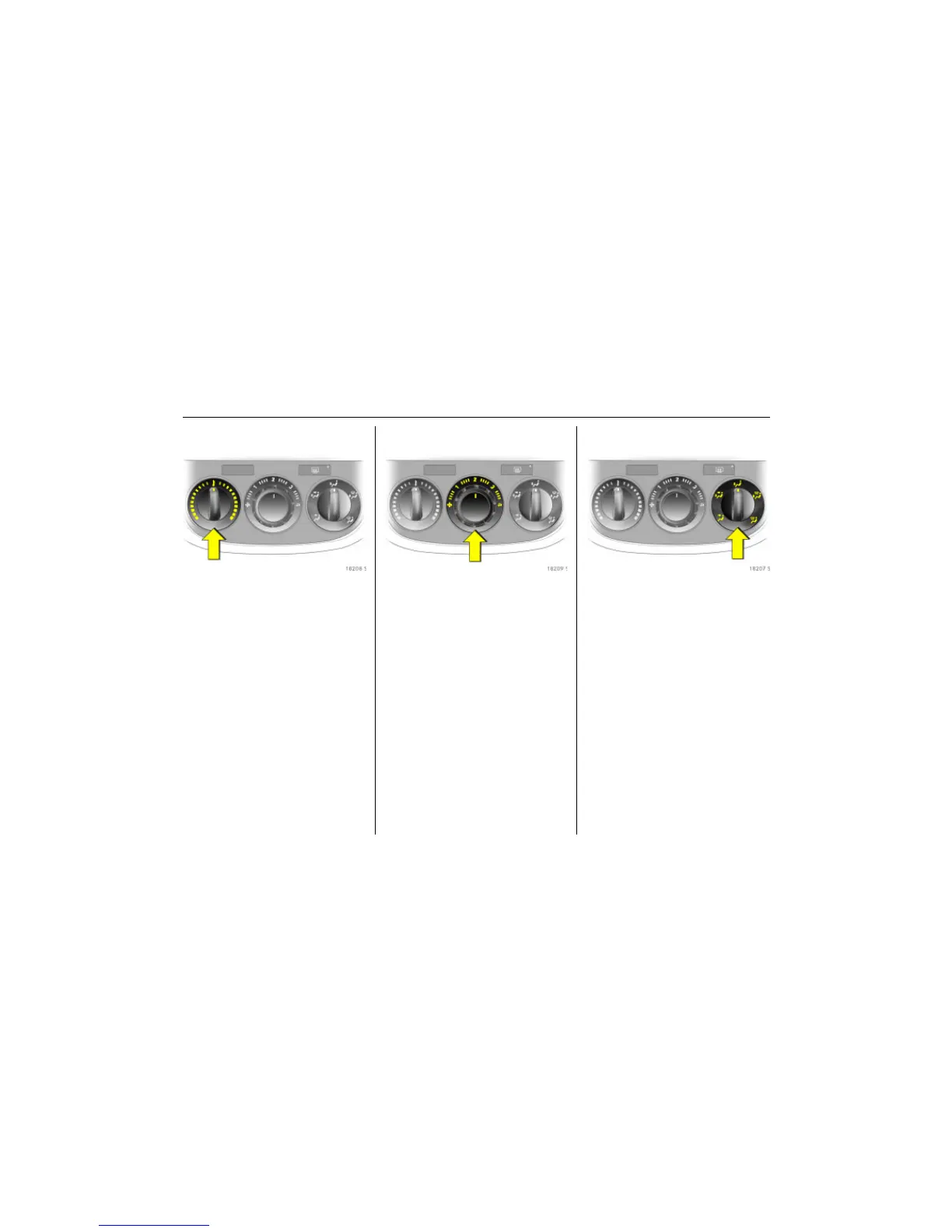

Picture no: 18208s.tif
Heating and ventilation system
Temperature
Adjusted using left-hand rotary switch.
The amount of heat is dependent on the
coolant temperature and is thus not fully
attained until the engine is warm.
Picture no: 18209s.tif
Air flow
Adjusted using centre rotary switch.
The rate of air flow is determined by the
fan. The fan should therefore also be
switched on during a journey.
Picture no: 18207s.tif
Air distribution
Set using right rotary switch.
Intermediate settings are possible.
Open the air vents when the switch is set to
L or M.
Turn clockwise = Warm
Turn anticlockwise = Cold
x Off
1 - 4 Selected fan speed
M To headroom via adjustable
air vents
L To headroom via adjustable
air vents, to footwell
K To footwell
J To windscreen, to front side
windows, to footwell
l To windscreen and front side
windows
