225Self-help, vehicle care
Picture no: 18404s.tif

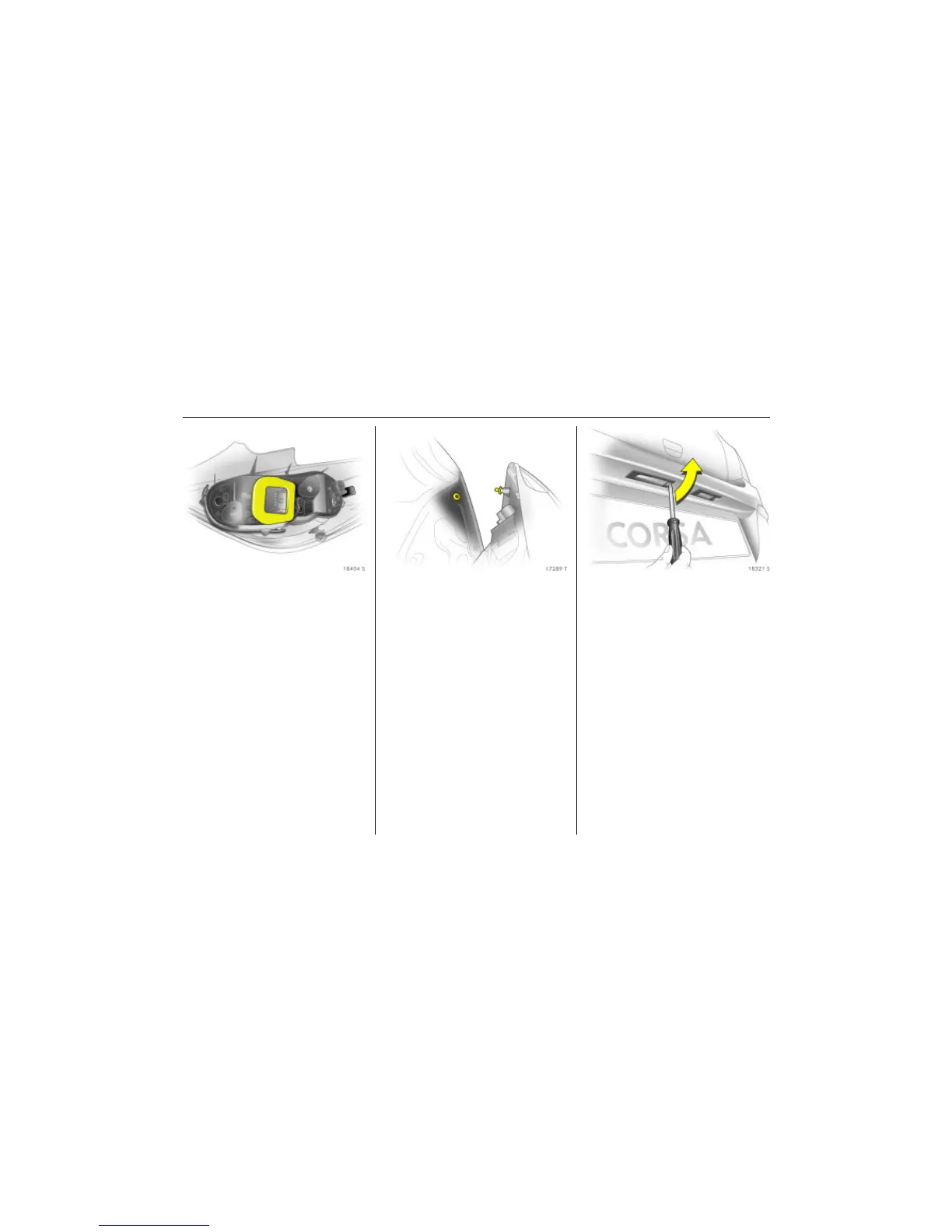

9. Ensure that the bulb holder seal is
positioned as illustrated. Fit the round
seal on the fastening bolt.
Picture no: 17289t.tif
10. Insert bulb housing in vehicle body,
engaging ratchet and bolt in recesses.
Tighten attachment nuts by hand.
Engage plug connector. Close and lock
flap.
11. Carry out the following steps to ensure
proper function of the tail lamps:
Picture no: 18321s.tif
Number plate lamp
1. Insert screwdriver vertically in bulb insert
as illustrated in figure. Press to the side
and release spring.
– Switch on ignition
– Operate brake
– Switch on parking lamps
