221Self-help, vehicle care
Picture no: 18261s.tif

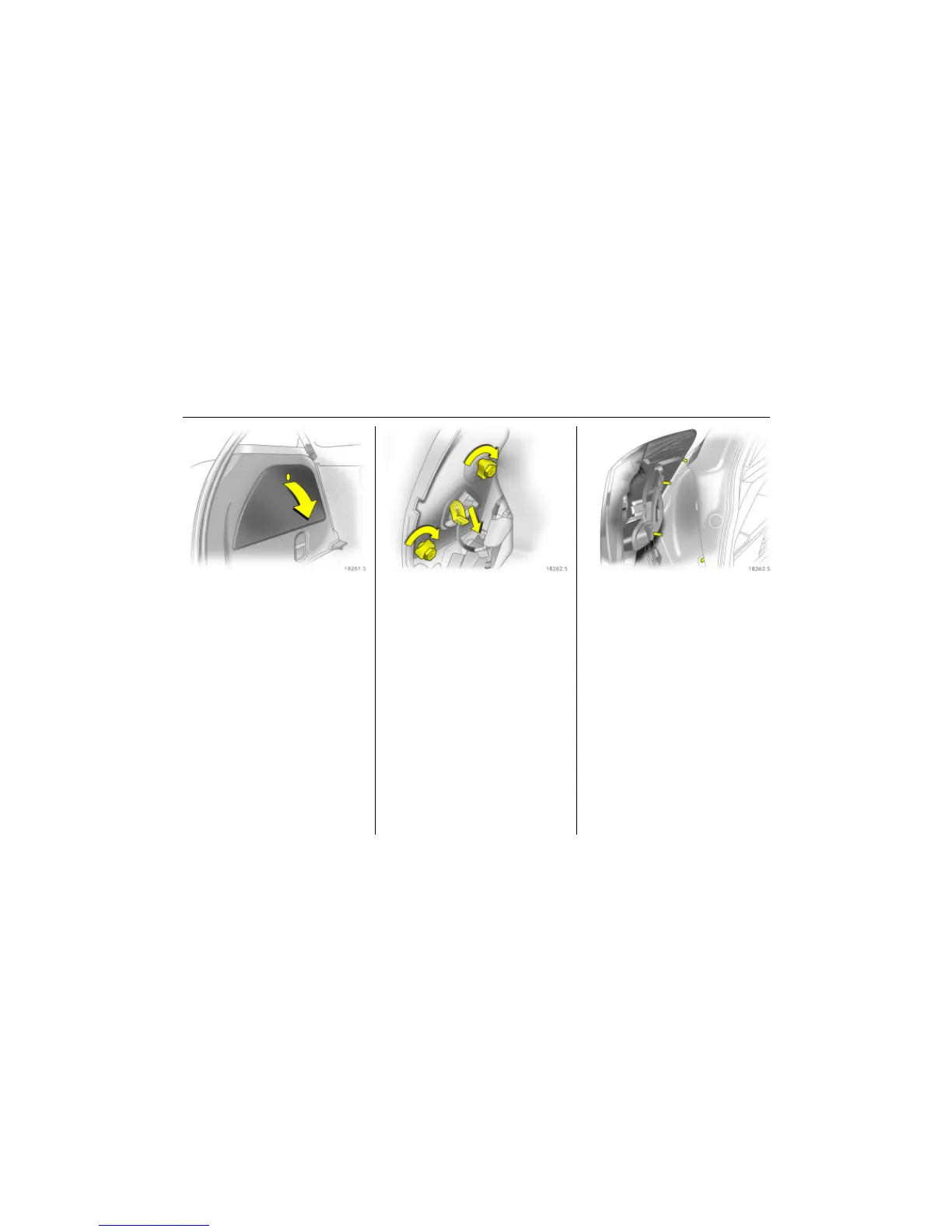

Tail lamps
5-door passenger vehicle
1. Disengage right and left cover in the side
luggage compartment trim, then open.
Picture no: 18262s.tif
2. Remove plug connector by pressing on
bulb holder tab.
3. Hold bulb housing from the outside;
unscrew two retaining nuts.
Picture no: 18263s.tif
4. Detach bulb housing towards the rear.
