Figure 5-5: Loosen Graphic Printer Thumbscrew
3. Swing open the paper guide to expose the graphics printer assembly, as
shown in Figure 5-6.

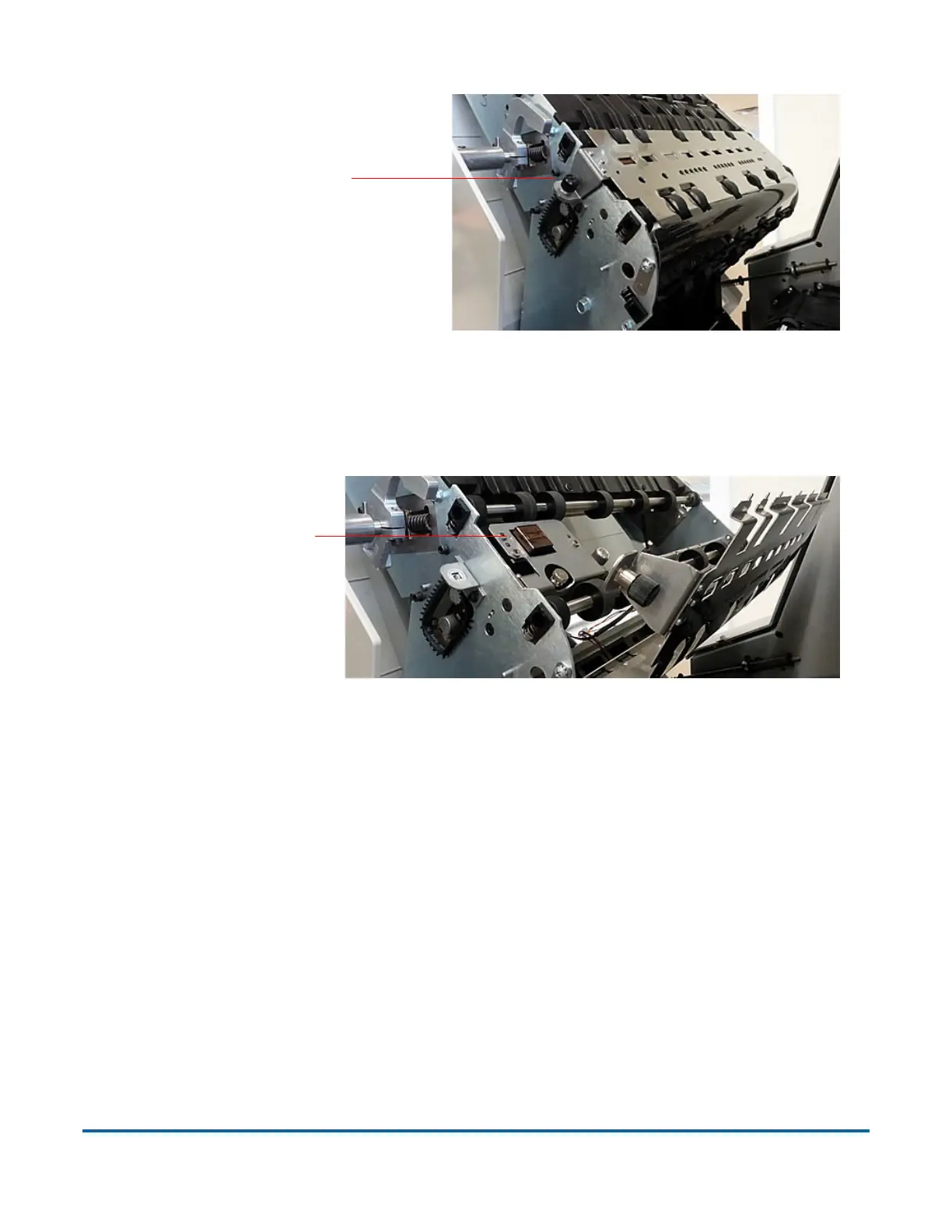

Figure 5-6: Graphics Printer Assembly
4. Loosen the thumbscrew on the IMTECH Graphics printer assembly shown
in Figure 5-7.
Loosen thumbscrew
Graphics Printer
assembly
