INSTALLATION
6
Rear Panel Connectors

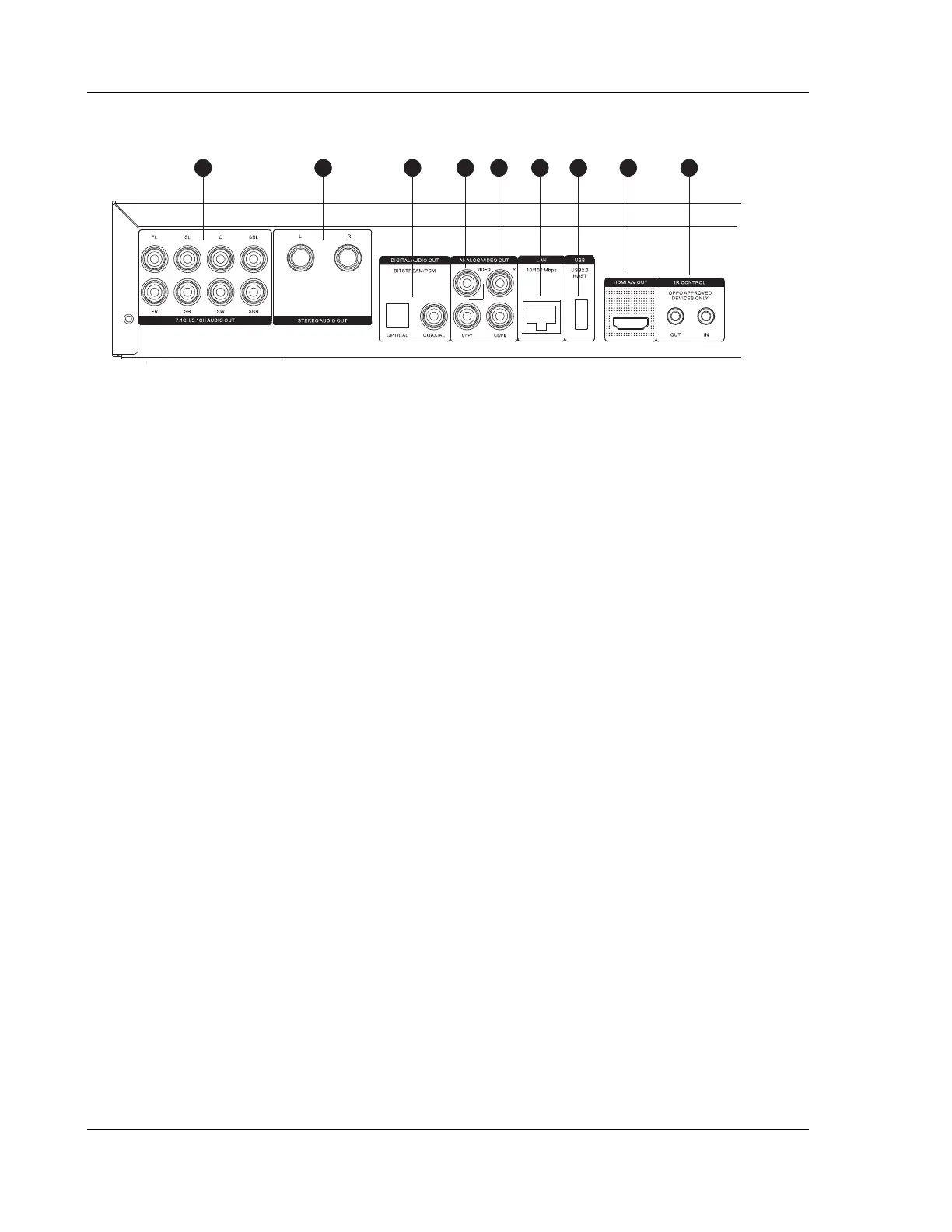

1 2 3 4 5 6 7 8 9
1. 7.1CH/5.1CH Audio Output
2. Stereo Audio Output
3. Coaxial and Optical Digital Audio Output
4. Composite Video Output
5. Component Video Output
6. Ethernet LAN Port
7. USB 2.0 Port
8. HDMI Output
9. IR IN and OUT Ports
In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the
IEC60-320 C18 type. Only the included AC power cord or an approved power cord with an IEC60-320 C17
type plug should be used.
