Connecting to a Receiver/Amplifier with 7.1ch/5.1ch Audio Input
Audio Interconnect Cables
Rear Panel
AUDIO/VIDEO MULTI -CHANNEL
RECEIVER
Receiver/Amplifier with 7.1ch Audio Input
FRONT SURROUND SUBWOOFER S. BACK
L
R
L
R
L
R
CENTER

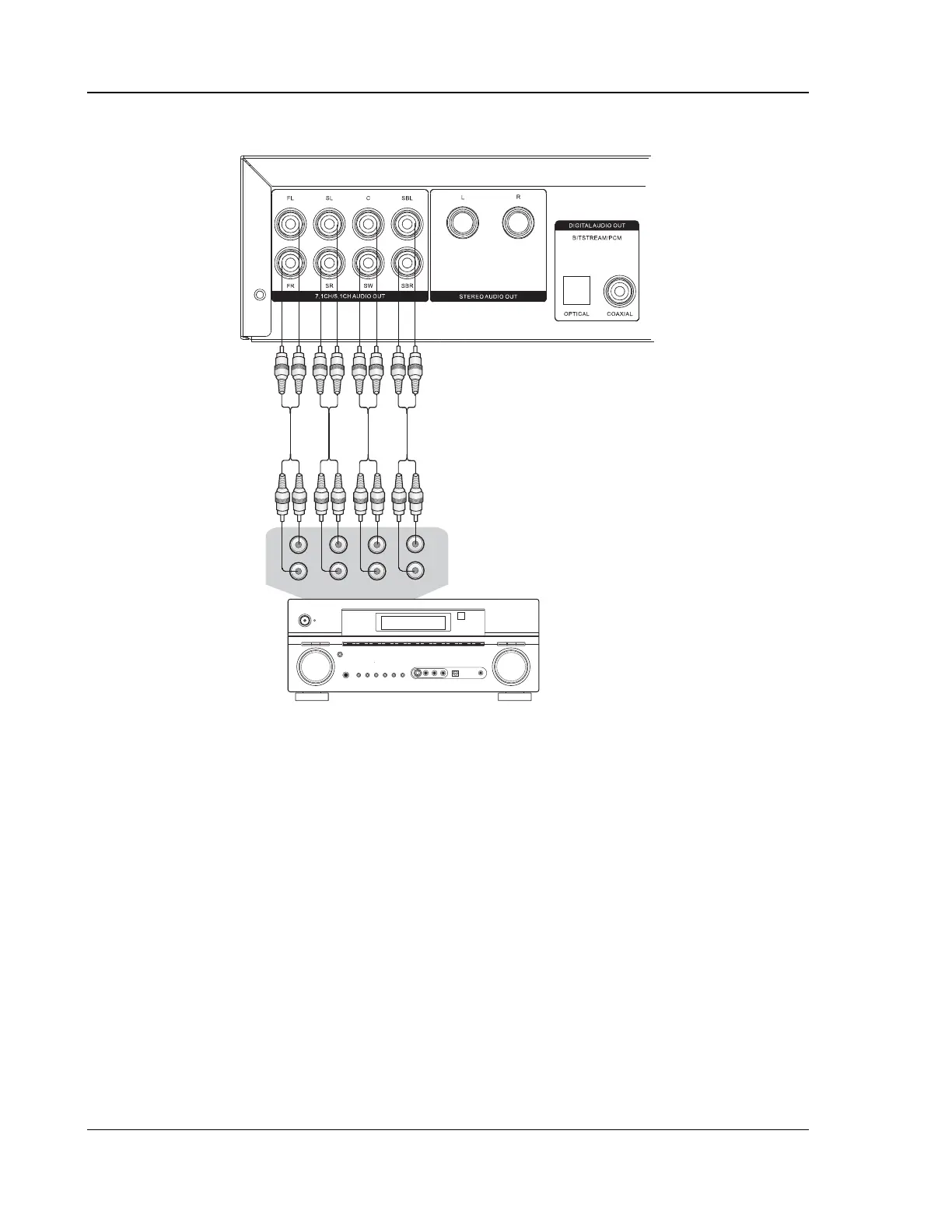

Method 5 – 7.1ch Analog Audio Connection
• Please use 8 RCA-style audio interconnect cables to connect the FL (Front Left), FR (Front
Right), SL (Surround Left), SR (Surround Right), C (Center), SW (SubWoofer), SBL (Surround
Back Left) and SBR (Surround Back Right) analog output terminals of the OPPO Blu-ray Disc
player to the corresponding multi-channel analog audio input jacks of your A/V receiver or
amplifier.
• If the A/V receiver or amplifier only has 5.1ch audio input, the SBL (Surround Back Left) and
SBR (Surround Back Right) terminals do not need to be connected.
