INSTALLATION
11

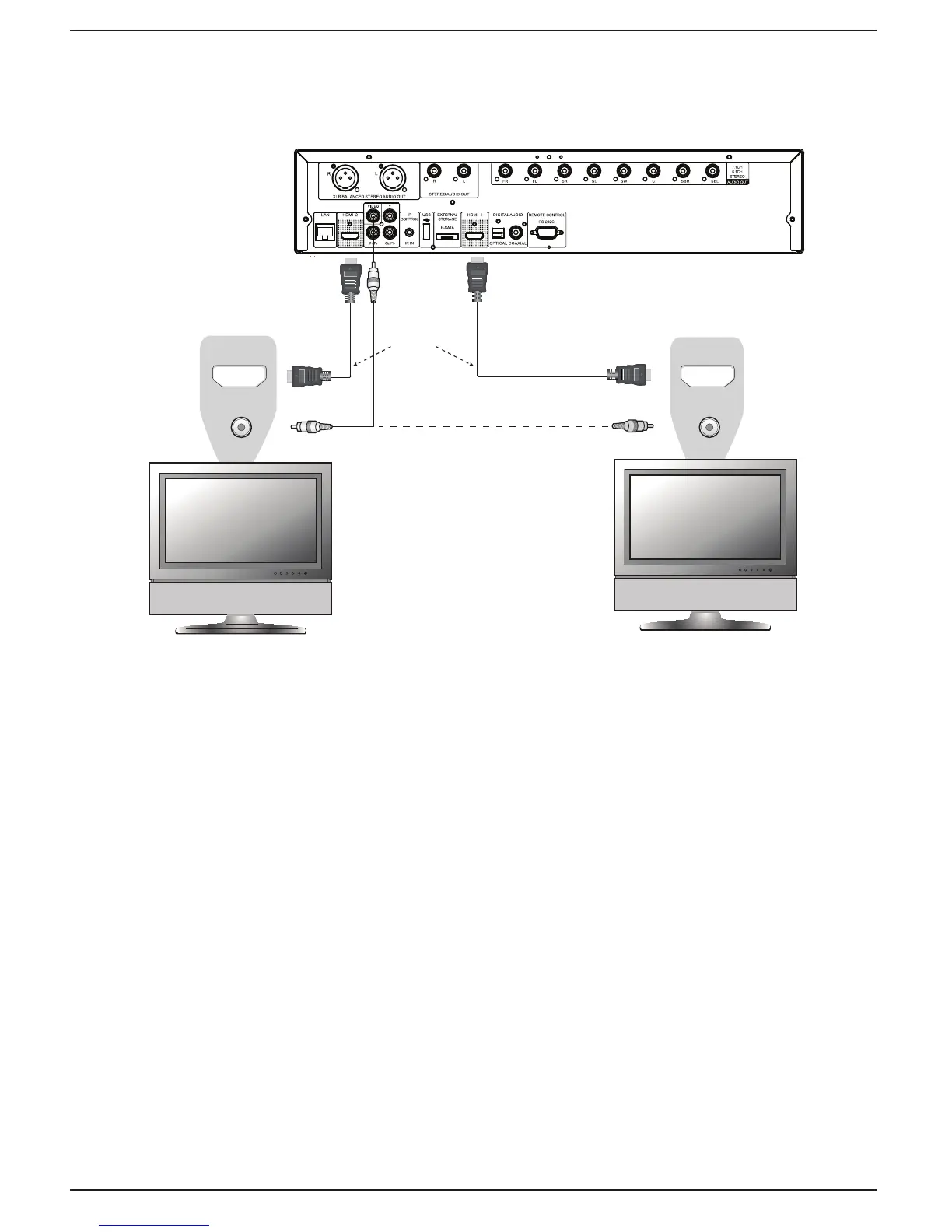

HDMI Connection to Two (2) TVs
Composite Video Cable
(optional)
Rear Panel
HDMI In
Video In
HDMI In
Video In
HDMI Cables
TV 1
TV 2
Method 2 –HDMI Connection Directly to two TVs
x The two HDMI outputs (HDMI 1 and HDMI 2) available on the rear panel of BDP-95 can be
connected to two TVs at the same time, and each output can deliver the digital video and audio
signals.
x We recommend to connect your main TV (the one with larger screen size or the one that you
would watch more often) to HDMI 1 thus to benefit from the dedicated video processor, and set
the “Primary Output” option in the setup menu to “HDMI 2” to make sure that the HDMI 2 can
output high bit rate audio signals (please see more details on page 54).
x You may connect the composite video cable to one of your TVs for trouble-shooting purpose,
please refer to page 10 for more details.
