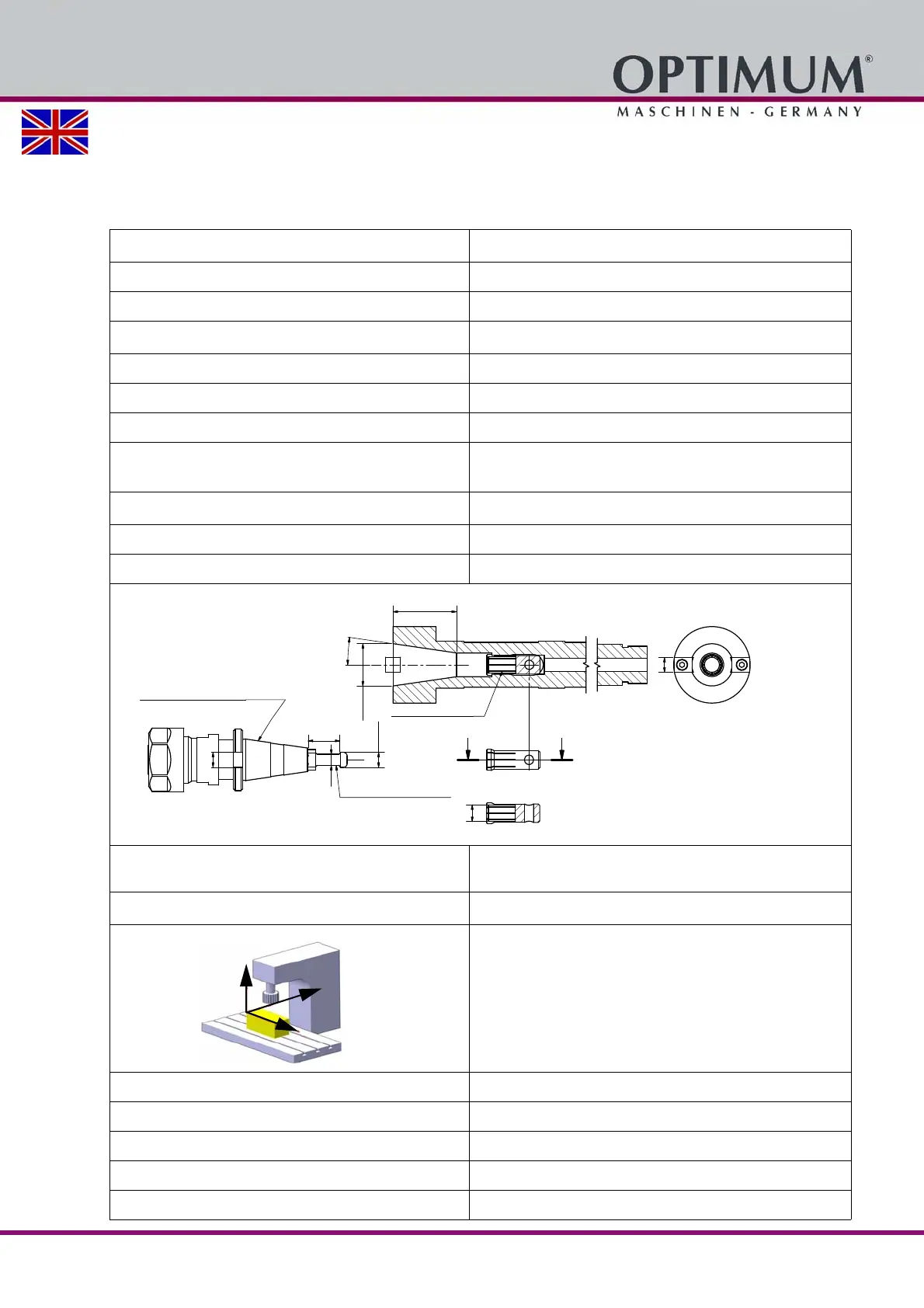

2 Technical specification
The following information represents the dimensions and indications of weight and the manu-
facturer‘s approved machine data.
2.1 Electrical connection
230V ~ 50Hz ~ 60Hz
Milling spindle motor power 950 W
2.2 Milling capacity
Drilling capacity in steel (S235JR) [mm] Ø 20
Drilling capacity in steel (S235JR) [mm] Ø 16
Max. milling head size [ mm] Ø 52
Max. end mill cutter size [ mm]
(Possible usable size with BT20)
Ø 12
2.3 Spindle seat
Spindle seat BT20 + 7:24 tool shank
Pull stud BT20 (Optimum)
Maximum distance between spindle nose - milling table
[mm]
370
2.4 Drill-mill head
Spindle sleeve stroke [mm] 50
Quill diameter [mm] 60
Manual travel Z axis [mm] 270
Throat [mm] 185
Inclination range ± 90°
E-E
G-G
EE
8,15P
6P
9P
17
8
34
Kegel / Taper 7:24 (SK20)
8,10
8
°
1
7
'
5
0
'
'
22,62P
Anzugsbolzen / Pull stud
Spannzange / Collet
+Z
+Y
+X
