4.13 Swivelling the milling head
The milling head can be swivelled to the right and to the left.
Loosen the fastening screw on the milling head.
Turn the drill-mill head to the desired position.
Retighten the fastening screw.
INFORMATION
The milling head should be aligned after resetting to the initial position with a dial indicator so
that holes can be produced with the spindle sleeve at a right angle.
Set the zero degree angle step using your set-up.

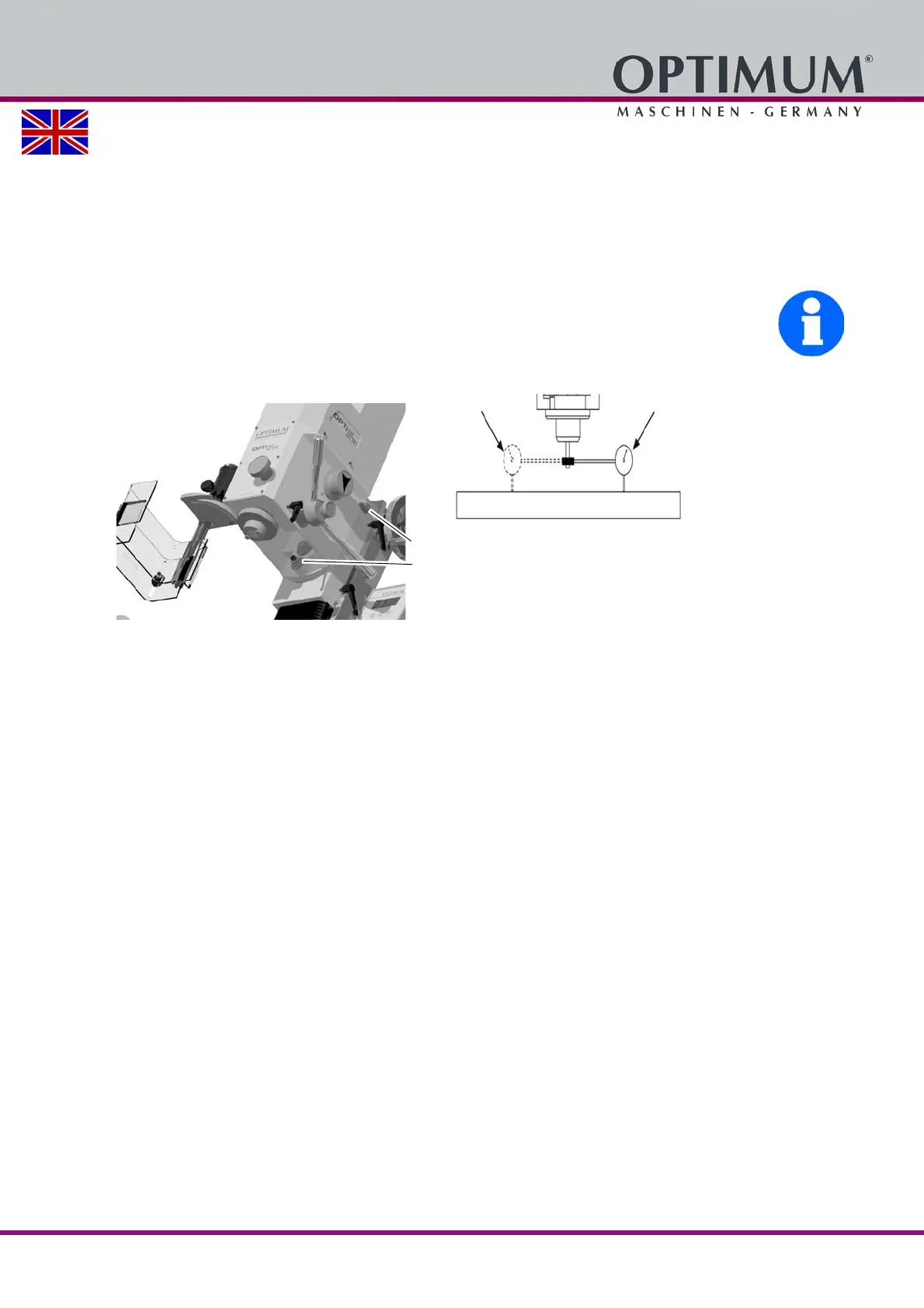

Img.4-3: Swivelling the milling head
Zero degree angle step
Clamping screw
