4 Operation

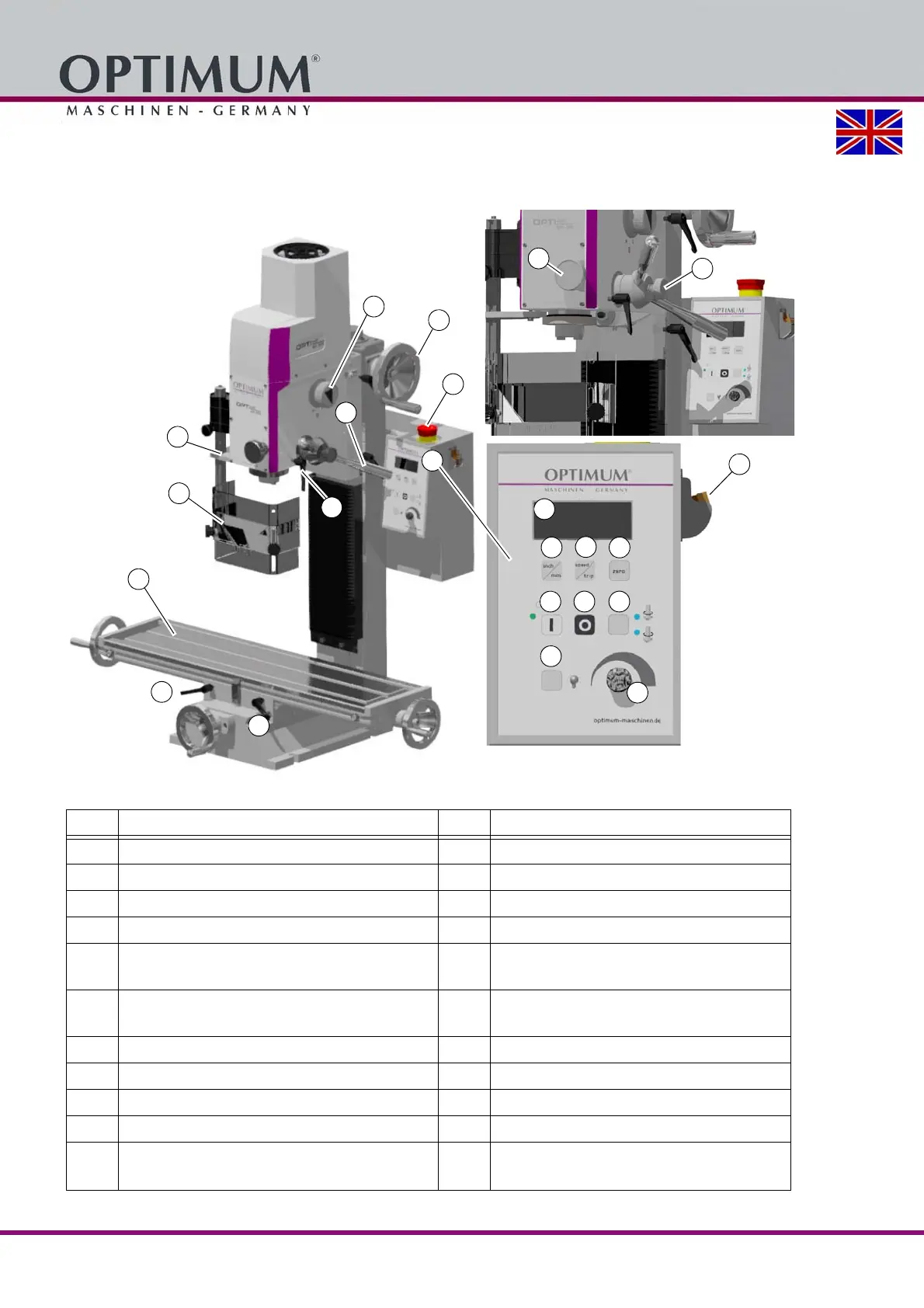

4.1 Control and indicating elements
2
3
6
8
9
9
9
5
4
7
1
12
11 13
14 15 16
17
10
18
21
19
20
Item Designation Item Designation
1 Control panel 2 Gear switch
3 Quill lever 4 Spindle protection
5 Emergency stop switch 6 Milling head height adjustment hand crank
7 Mechanical securing, quick clamping system 8 Milling table
9 Clamping lever 10
Display
• Depth display or speed display
11
Switching over display
• Millimetres or inches for depth display
12
Switching over display
• Speed or depth display of the quill
13 Display depth to zero 14 Spindle rotation ON
15 Spindle rotation OFF 16 Rotational direction spindle
17 LED Machine illumination ON / OFF 18 Infinitely variable speed adjustment
19 Activation of the fine adjustment 20 Fine adjustment of spindle sleeve
21 Main switch
Digital position display DRO5 , only on
MH22VD,
 Operation DRO5 on page 34
