5.2.3. Connection between MD-30C and COMPACT-E expansion unit
The CAN communication speed of the MD-30C is 33.3
kbit/s. For installation with COMPACT-E expa nsion units
with a communication speed of 500 kbit/s , a CAN-AV
speed adapter (code A465AV) must be inserted in the
bus to match the transmission speed between devices.
The a ttached ta ble shows the tra nsmission speed o f the
equipments:

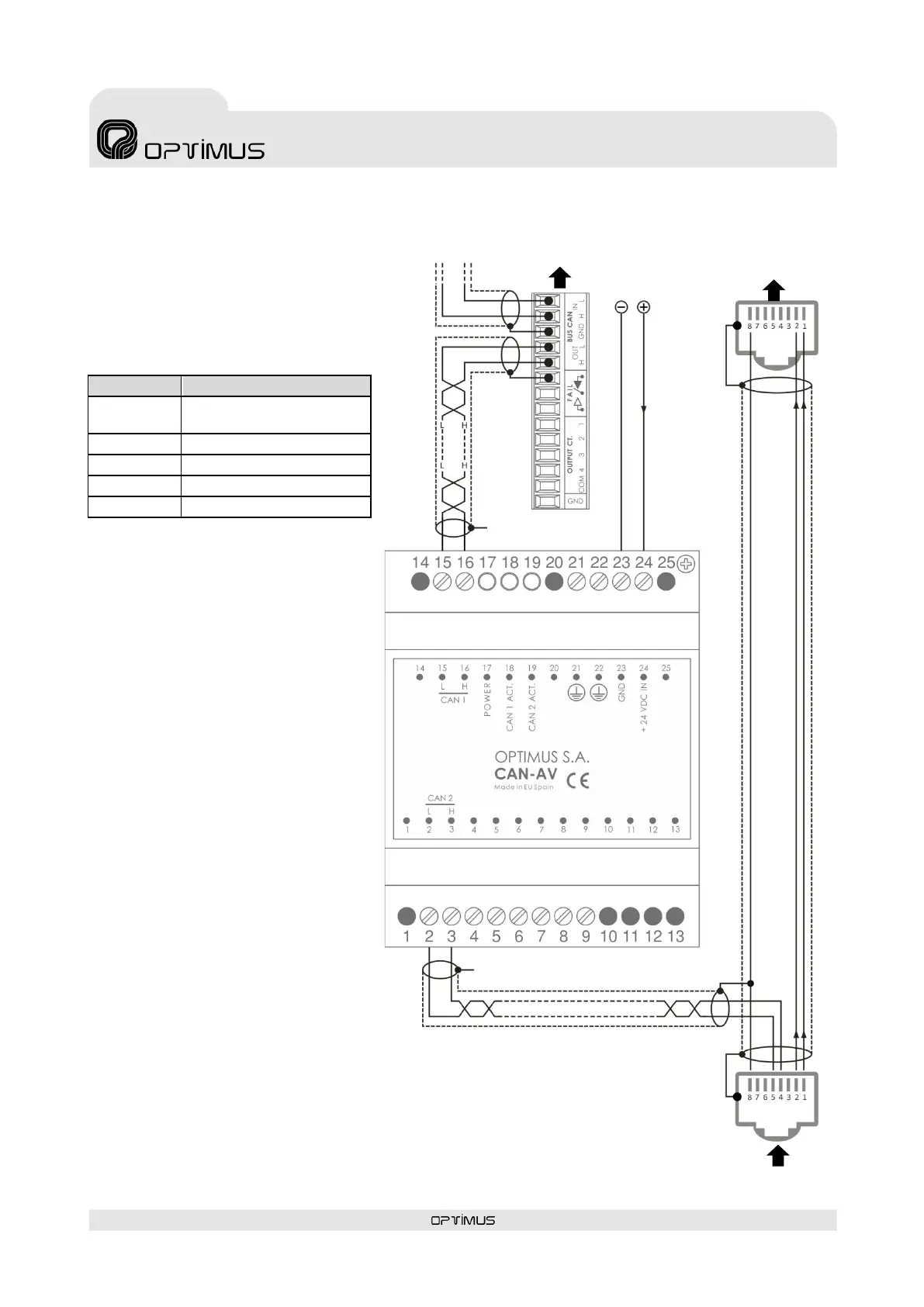

To connect an MD-30C to the COMPACT-E follow
fi gure 7.
EQUIPMENT SPEED TRANSMISSION
COMPACT
33.3 kbit/s o 500 kbit/s (built-
i n s peed a dapter )
COMPACT-E
500 kbi t/s
MD-30C
33.3 kbi t/s
ME-200C
33.3 kbi t/s
NS-CAN
33.3 kbi t/s
(RJ45 Connector
Front view)
To UMX-EA3 card
From RJ45 OUTPUT
MD-30C
(RJ45 Connector
Front view)
Figure 7
24V DC
POWER
SUPPLY
(Shield not
connected)
(Shield not
connected)
To COMPACT-E
expansion unit
