Optimus UP-67ETH - Page 43

UP-67ETH, UP-127ETH,
UP-247ETH, UP-367ETH
Digital power unit
UP-x7ETH version 1.1
43
(18)
(19)

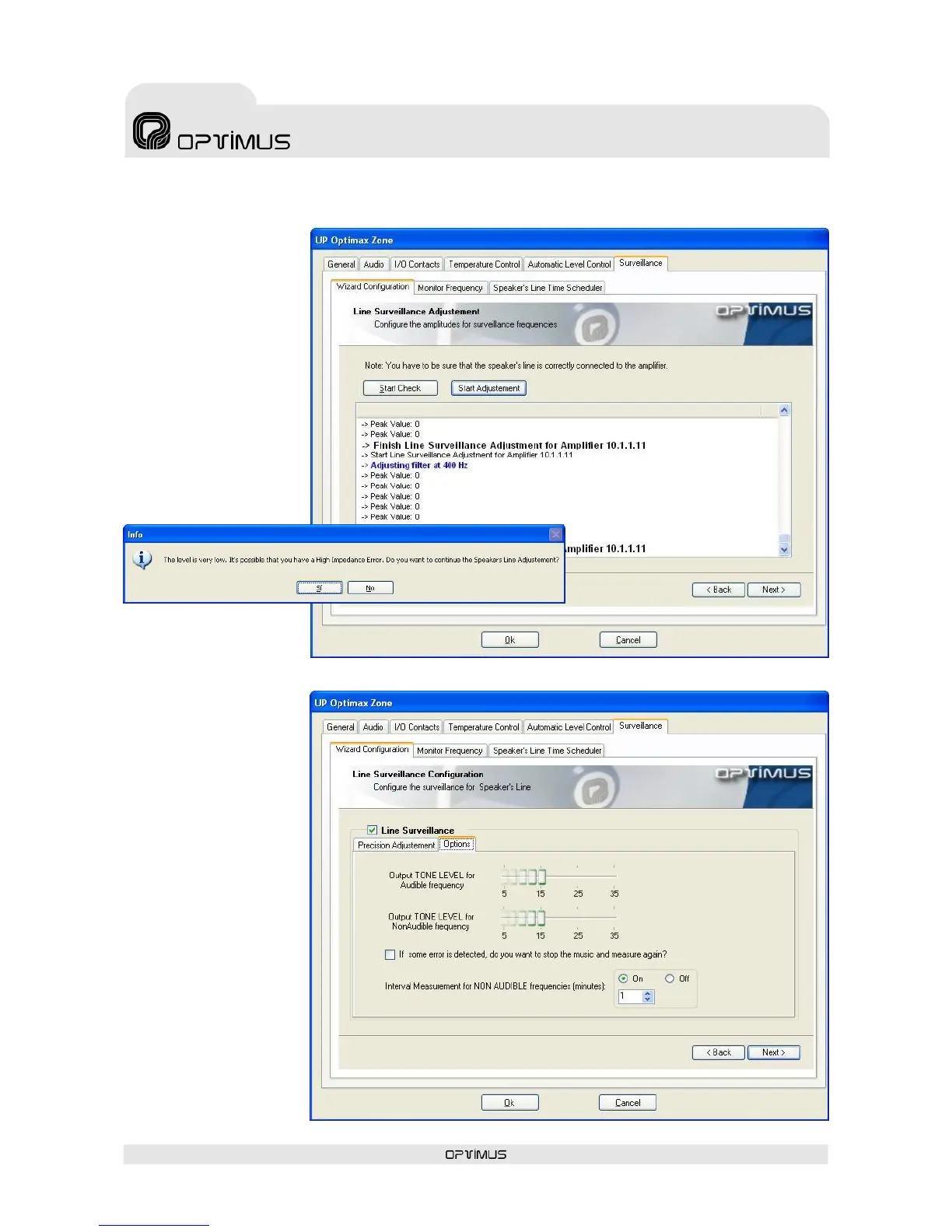

If the result of the setting
is not correct or the
values obtained are too
low (values below 200),
the output level of the
surveillance signal may
be too low. In this case,
a window informing of
the error appears.
Click on No (18) to stop
the setting.
Select Back (19) to
return to the previous
screen.
Select the Options tab
(14) and increase the
level of the detection
signal tone (20) and
(21).
Click on Next (1) and
proceed to set the line
surveillance once again.
(14)
(20)
(21)
(1)
