EDFA optical amplifier – user manual
30

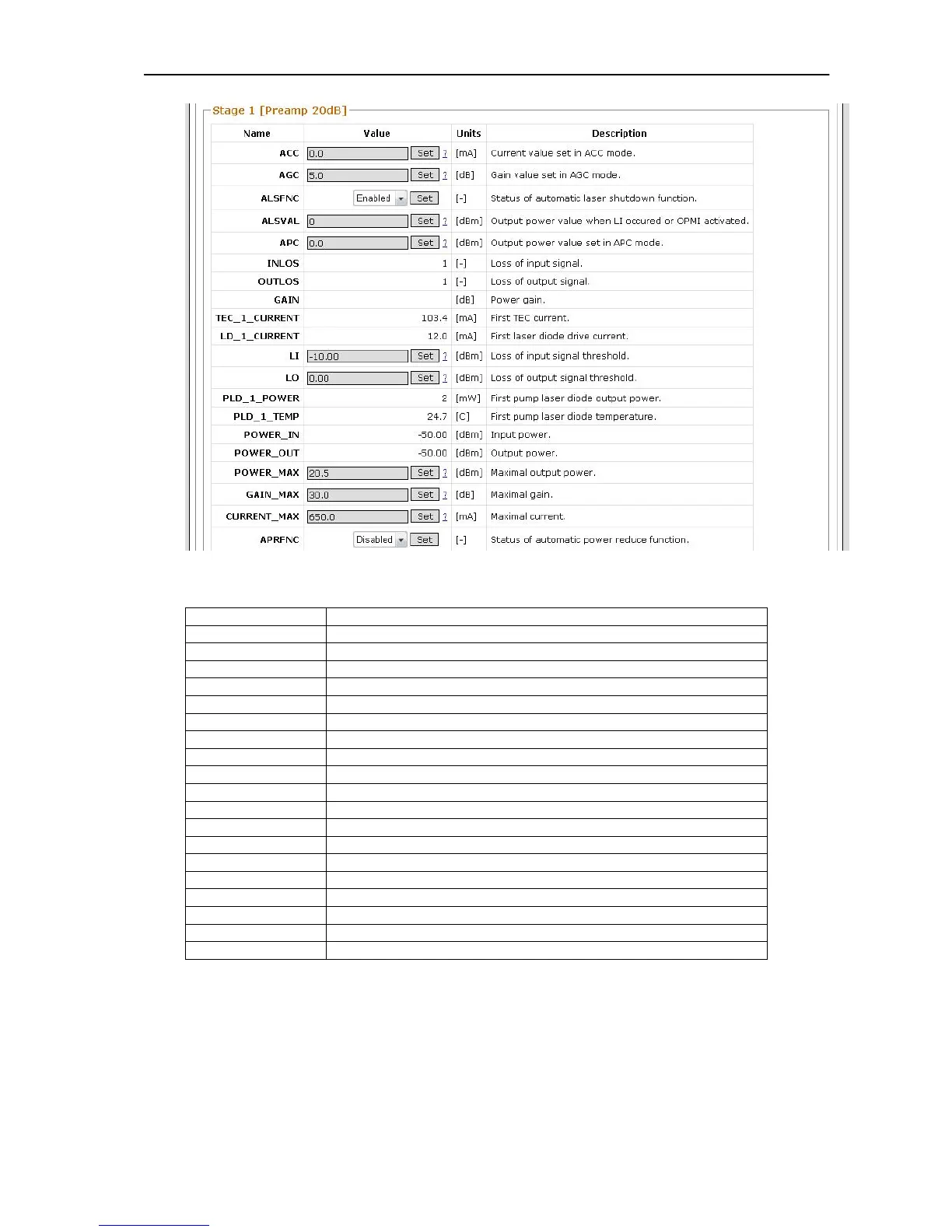

Picture 11 - Expert mode setting
ACC
Setting ACC mode / setting current of Pump diode [mA]
AGC
Setting AGC mode / setting constant Gain [dB]
ALSFNC
Enabled or Disabled Laser shutdown function
ALSVAL
Setting output power value when Loss input alarm is active [dBm]
APC
Setting APC mode / setting constant Output power [dBm]
INLOS
Loss of input alarm – 1 Active / 0 Not active
OUTLOS
Loss of output alarm – 1 Active / 0 Not active
GAIN
Actual gain report [dB]
TEC_1_CURRENT
Temperature control current [mA]
LD_1_CURRENT
First pump diode current [mA]
LI
Setting threshold value Loss of input alarm [dBm]
LO
Setting threshold value Loss of output alarm [dBm]
PLD_1_POWER
Output power from pump diode [mW]
PLD_1_TEMP
Pump diode Temperatures [°C]
POWER_IN
Input optical power [dBm]
POWER_OUT
Output optical power [dBm]
POWER_MAX
Set maximal output power [dBm] – protect EDFA unit
GAIN_MAX
Set maximal gain [dB] – protect EDFA unit
CURRENT_MAX
Set maximal pump diode current [mA] – protect EDFA unit
APRFNC
Enable or Disable Auto power reduce function
Table 8 - Expert mode
