13.2 Application note
This chapter shows some examples connection and using some models of
OPTOKON Amplifiers.

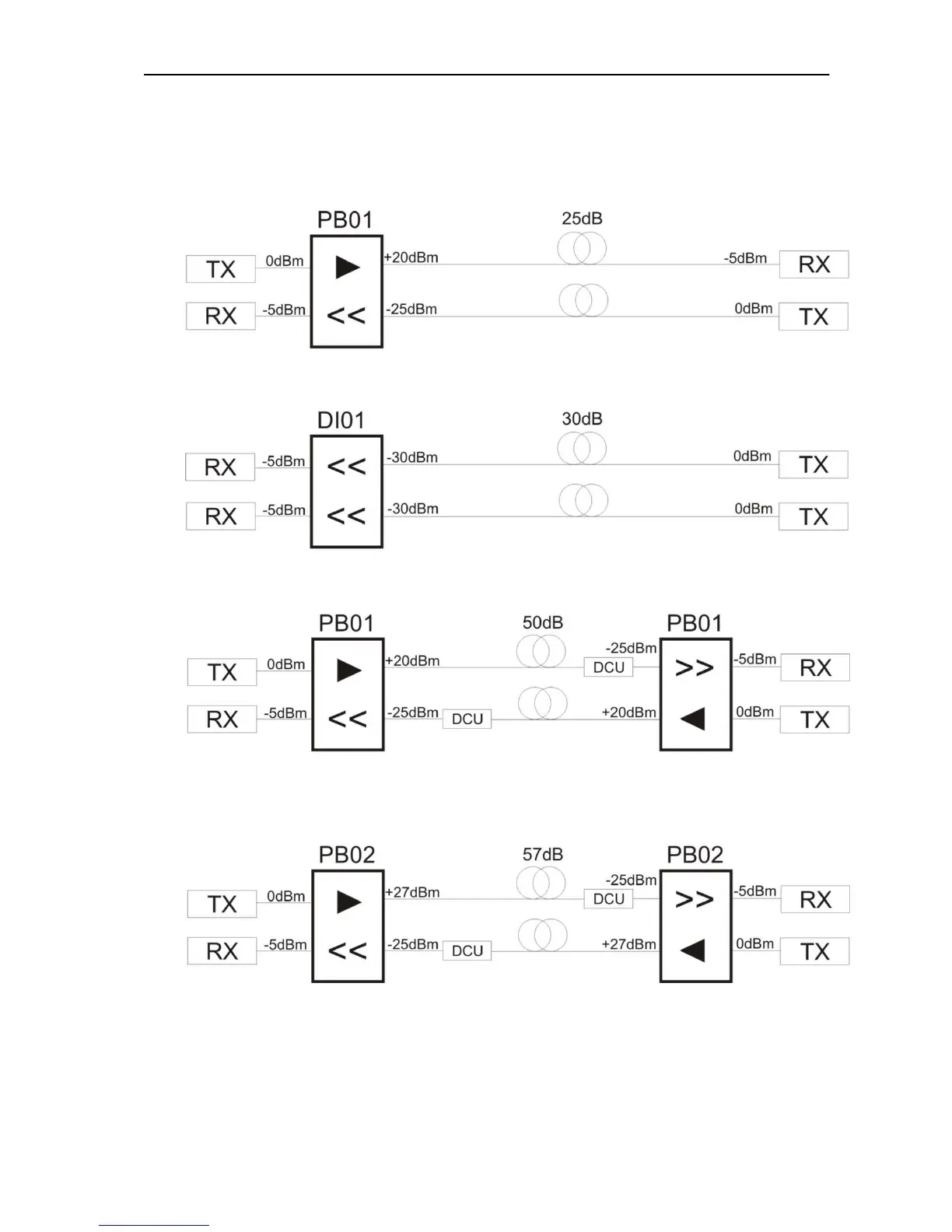

Picture 29 - Application note
Note: “►” Booster Amplifier
“>>” Pre-Amplifier
PBxx – Pre-Amplifier and Booster
DIxx – Dual Inline Amplifier
DCU – Dispersion Compensation Unit
