Optoma ES520 - EX530 Disassembly and Assembly

Delta Elec. Inc. ES520 & EX530 ver.02
Company Confidential Optoma___________________ Delta________________
41
2008/09/17
b. EX530 (DP-3511)
Removing the Lamp Cover and Lamp Module

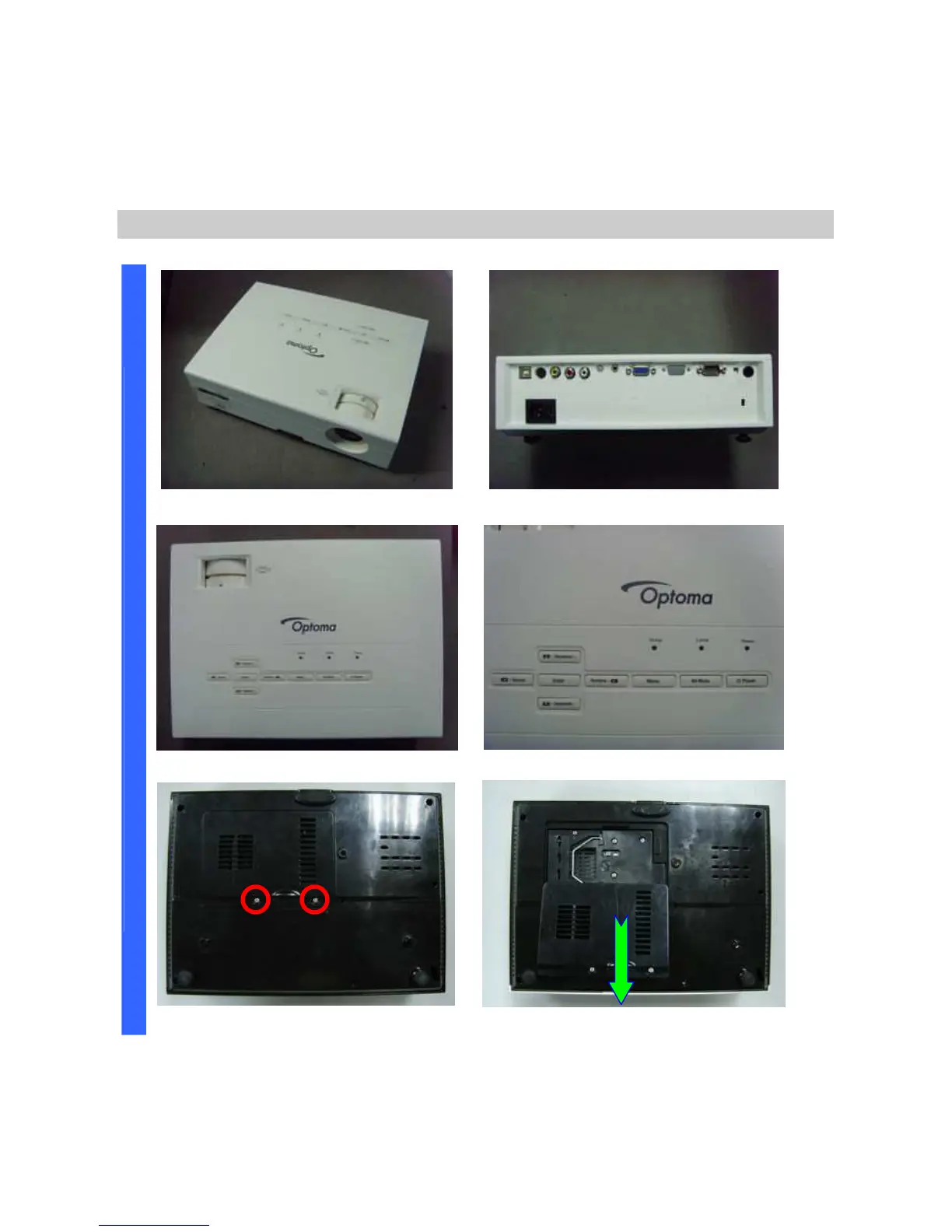

Look the full set projector. Look at the IO side.
Look at the case of top side. Look at the keypad of top side.
D
I
S
A
S
S
E
M
B
L
Y
Loose these two screws. Remove and take out the lamp cover.
