Optoma ES520 - Removing the Optical Engine

Delta Elec. Inc. ES520 & EX530 ver.02
Company Confidential Optoma___________________ Delta________________
32
2008/09/17

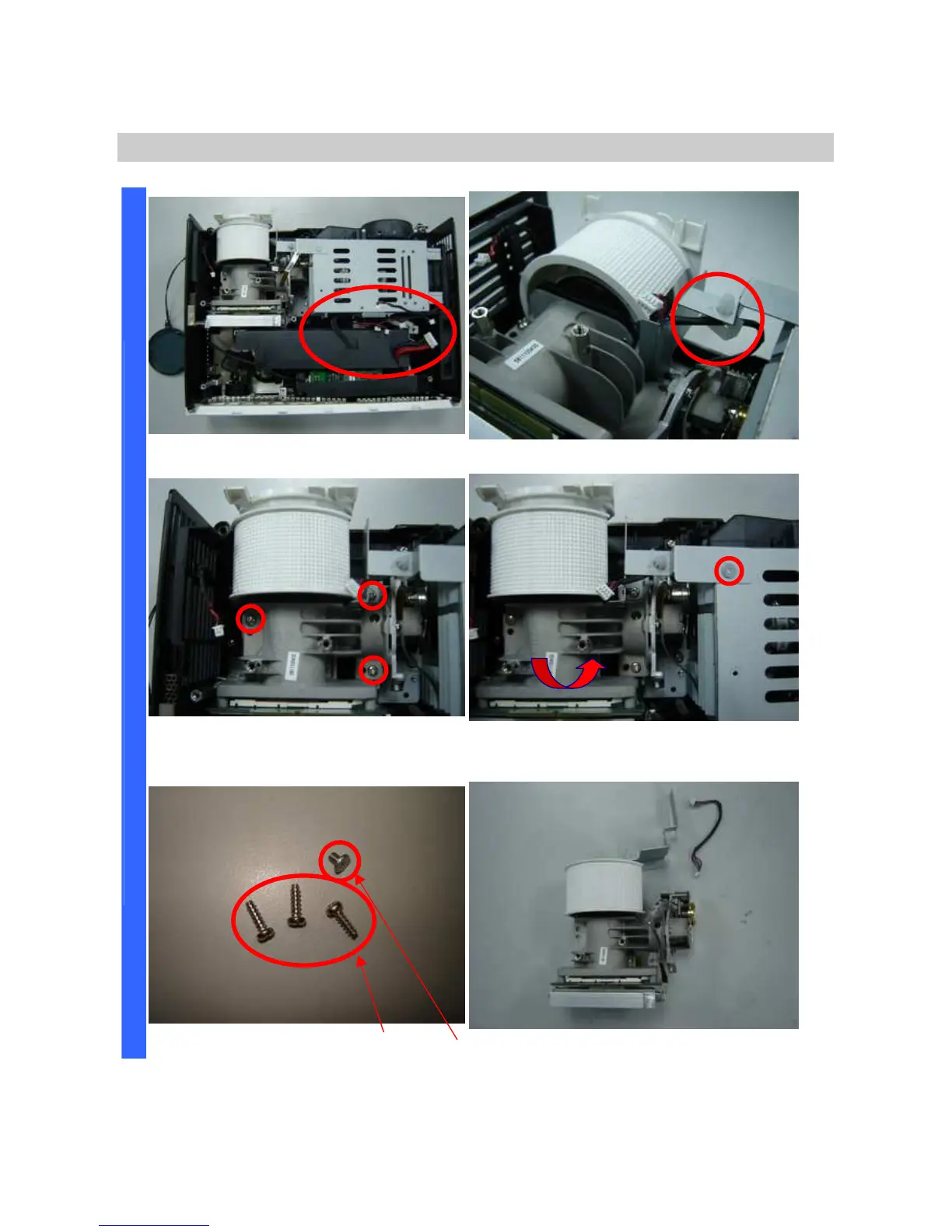

Removing the Optical Engine
Careful assembly when you assemble it.
Careful assembly when you assemble it.
Remove the three screws. Remove the screw and take off the
optical engine.
D
I
S
A
S
S
E
M
B
L
Y
Review the screws (two kinds S08 & S09).
Review the optical engine.
