Removing the Optical engine and Power Supply

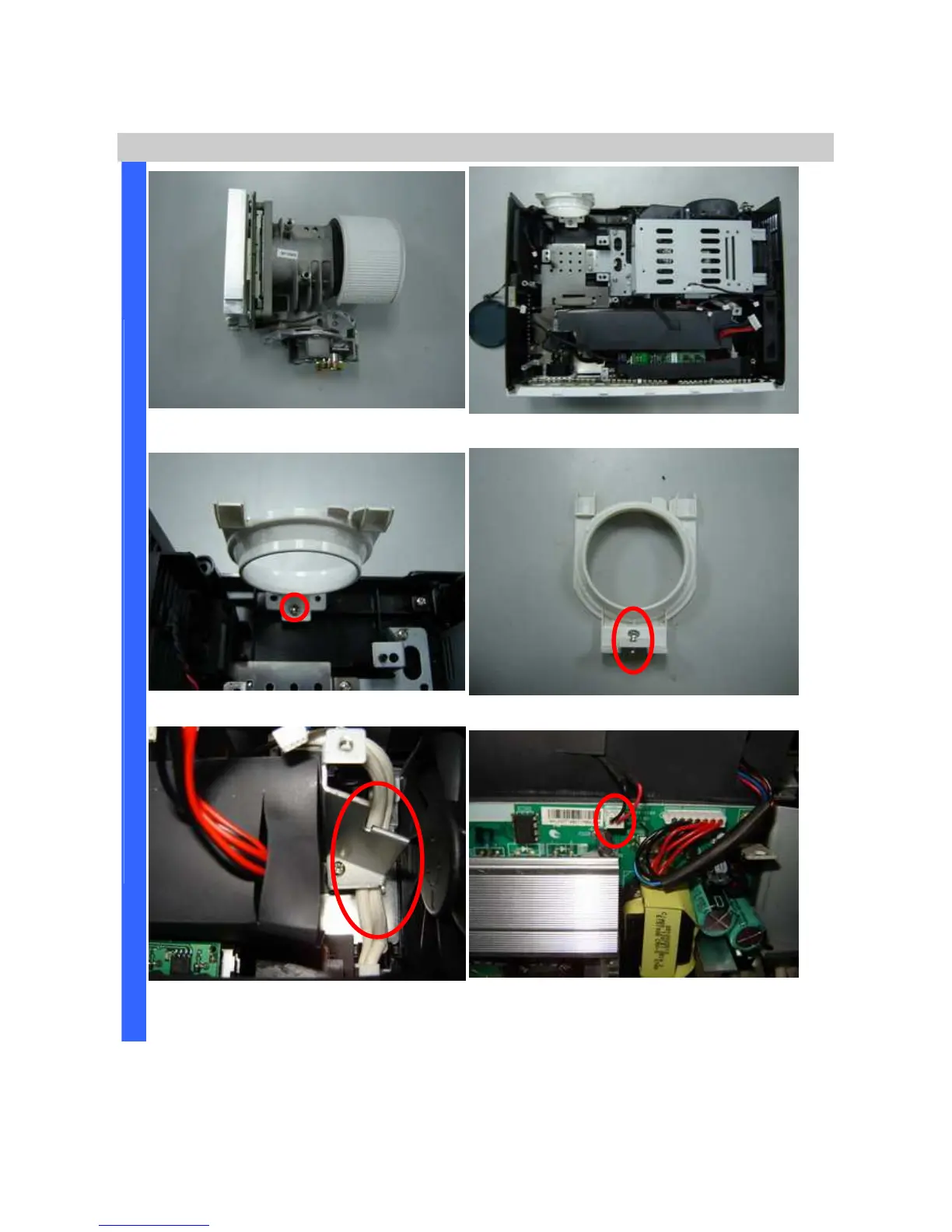

Review the optical engine (other side).
Review the bottom case w/o optical engine.
Remove the zoom ring screw (S10). Review the zoom ring and the screw.
D
I
S
A
S
S
E
M
B
L
Y
Careful
the HV wire position when you
assemble it.
Remove the wire connector.
