Optoma ES520 - Page 34

Delta Elec. Inc. ES520 & EX530 ver.02
Company Confidential Optoma___________________ Delta________________
34
2008/09/17

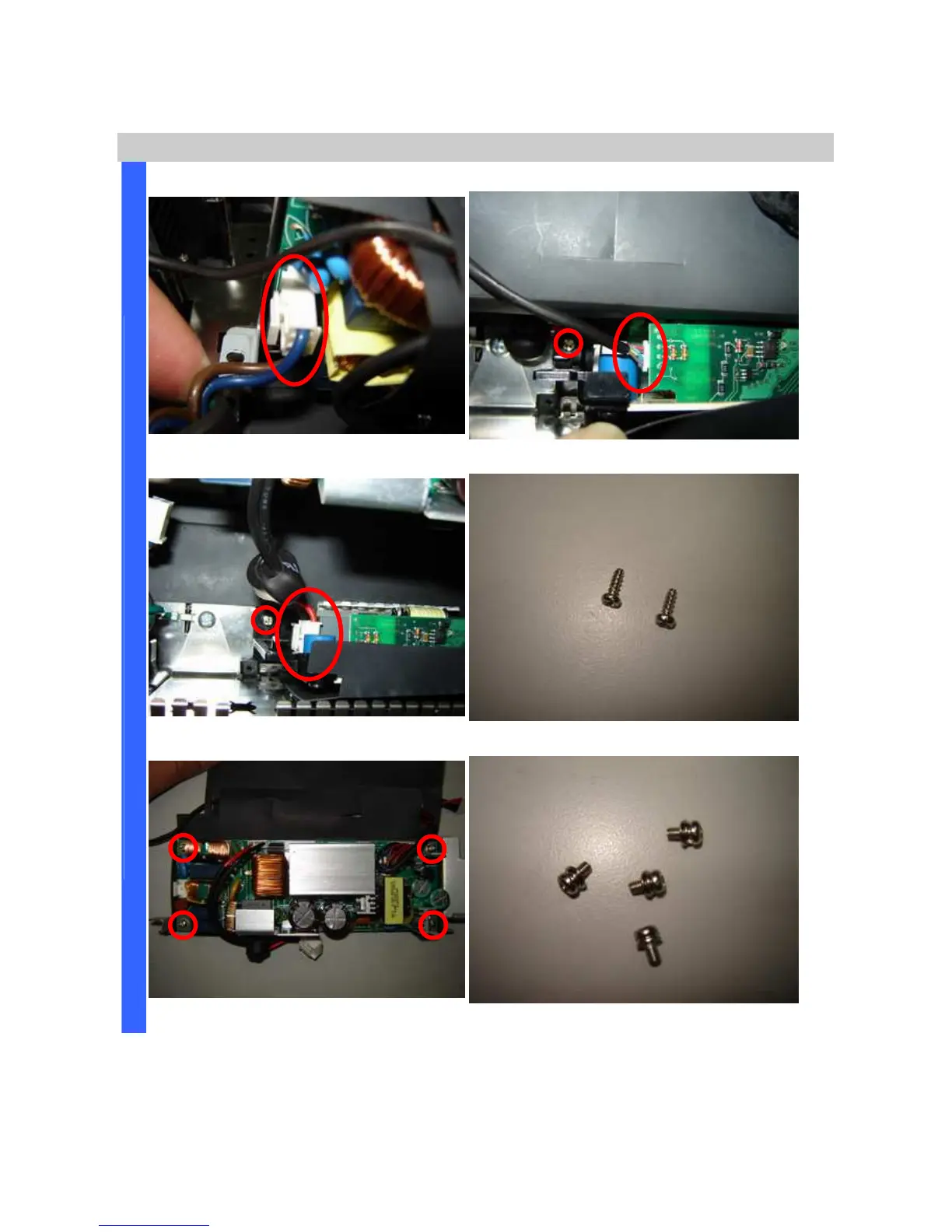

Removing the Power Supply
Remove the wire connector. Remove the wire connector and screw.
Remove the wire connector and screw.
Review these two screws (S11).
D
I
S
A
S
S
E
M
B
L
Y
Remove the four screws. Review these four screws (S12).
