Optoma ES520 - Page 35

Delta Elec. Inc. ES520 & EX530 ver.02
Company Confidential Optoma___________________ Delta________________
35
2008/09/17

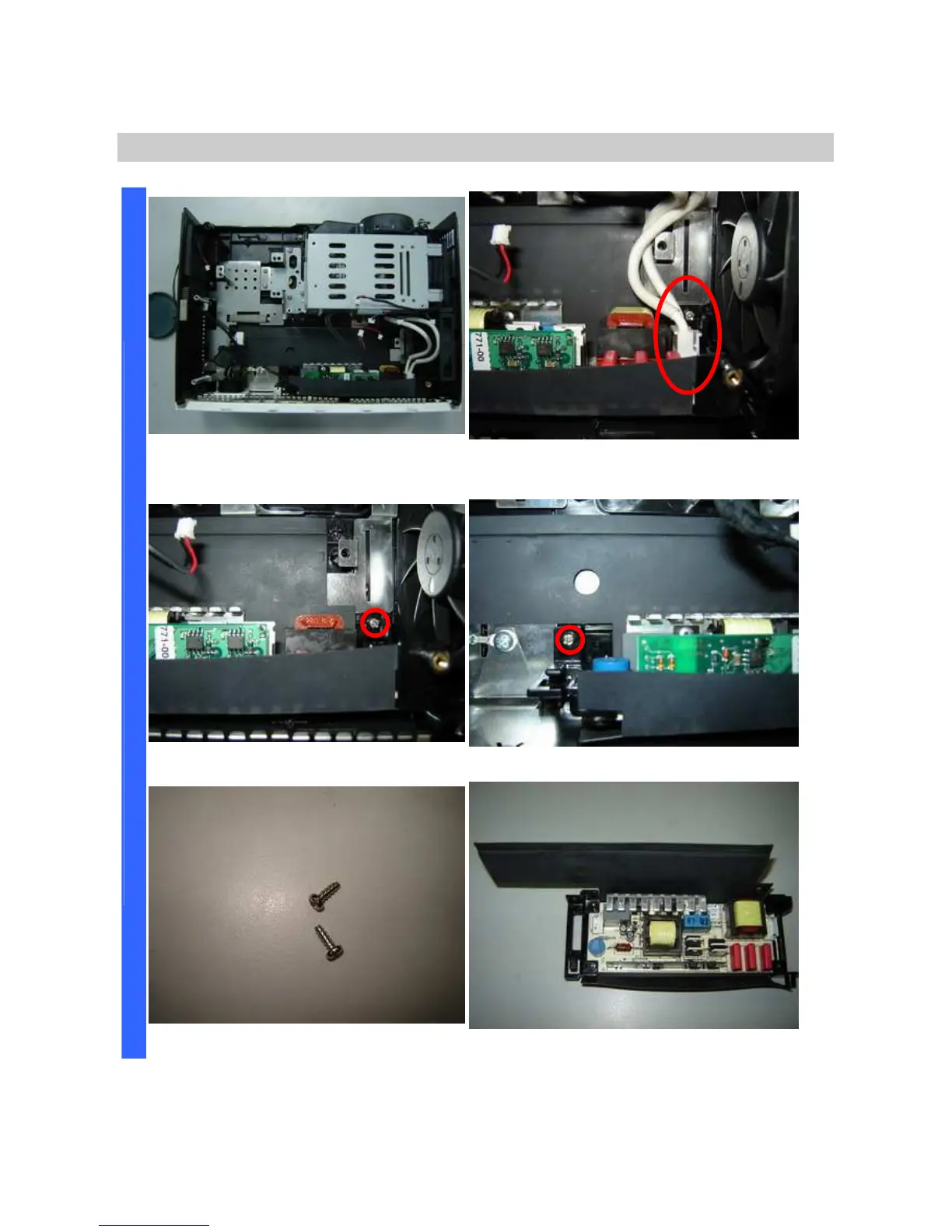

Removing the Ballast Board
Review the bottom case w/o Power
board.
Remove the HV wire.
Remove the screw 1 of 2. Remove the screw 2 of 2.
D
I
S
A
S
S
E
M
B
L
Y
Review the two screws (S13). Review the top side of Ballast with film.
