Installation
12

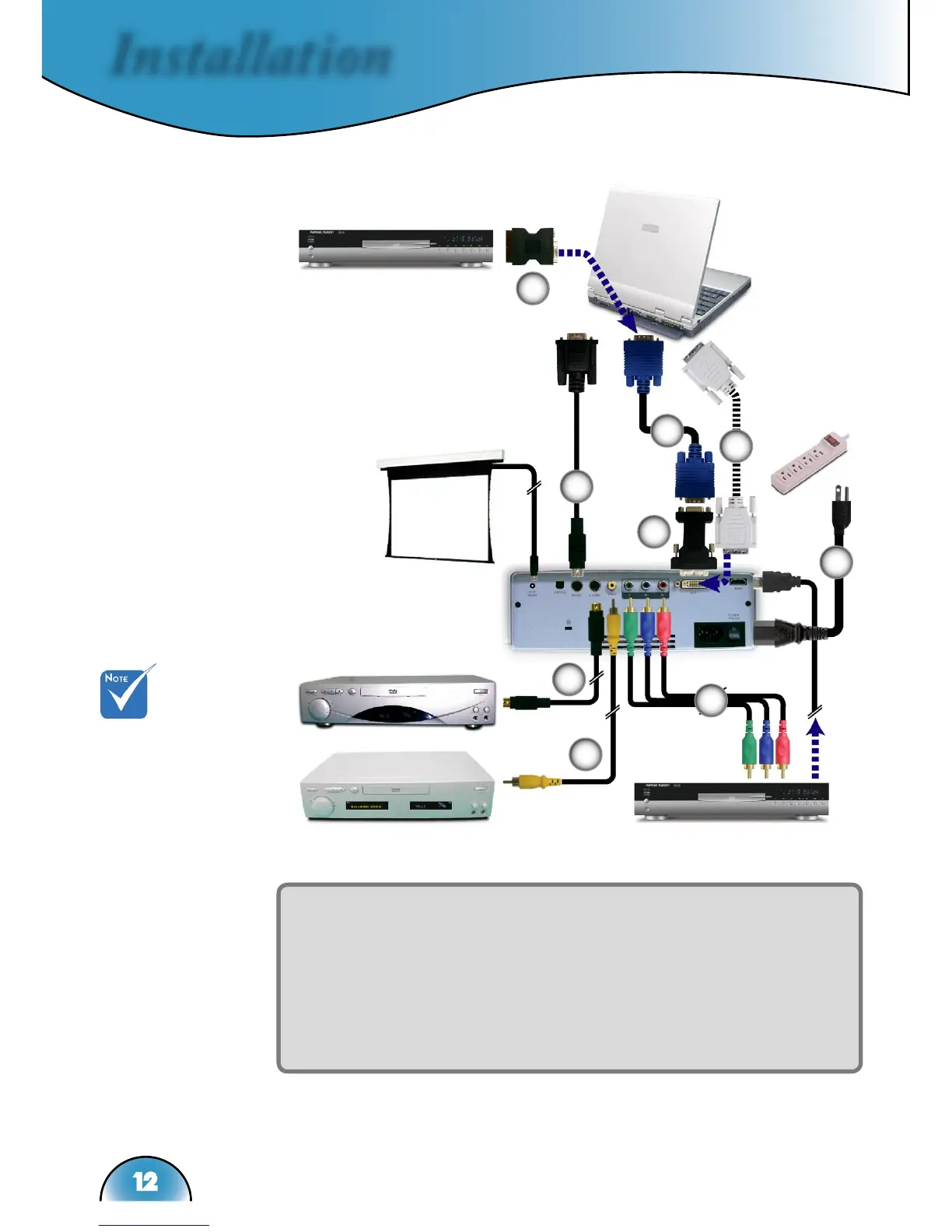

Connecting the Projector
 Due to the differ-
ence in applica-
tions for each
country, some
regions may have
different
accessories.
S-Video Output
Video Output
DVD Player, Set-top Box,
HDTV receiver
RGB
1. .............................................................................................................Power Cord
2. ..................................................... DVI to VGA Adaptor (For European Only)
3. ............................................................................................................ RS232 Cable
4. .........................................................................................................S-Video Cable
5. ........................................................................................ Composite Video Cable
6. ......................................................................RCA Component Cable for YPbPr
7. ......................................SCART RGB/S-Video Adaptor (For European Only)
8. ....................................................................... VGA Cable (For European Only)
9. ......................................................................... DVI Cable (Optional Accessory)
1
2
3
DVI
6
7
5
4
9
+12V Relay Output
SCART DVD Player
8
