EN-17
Connection

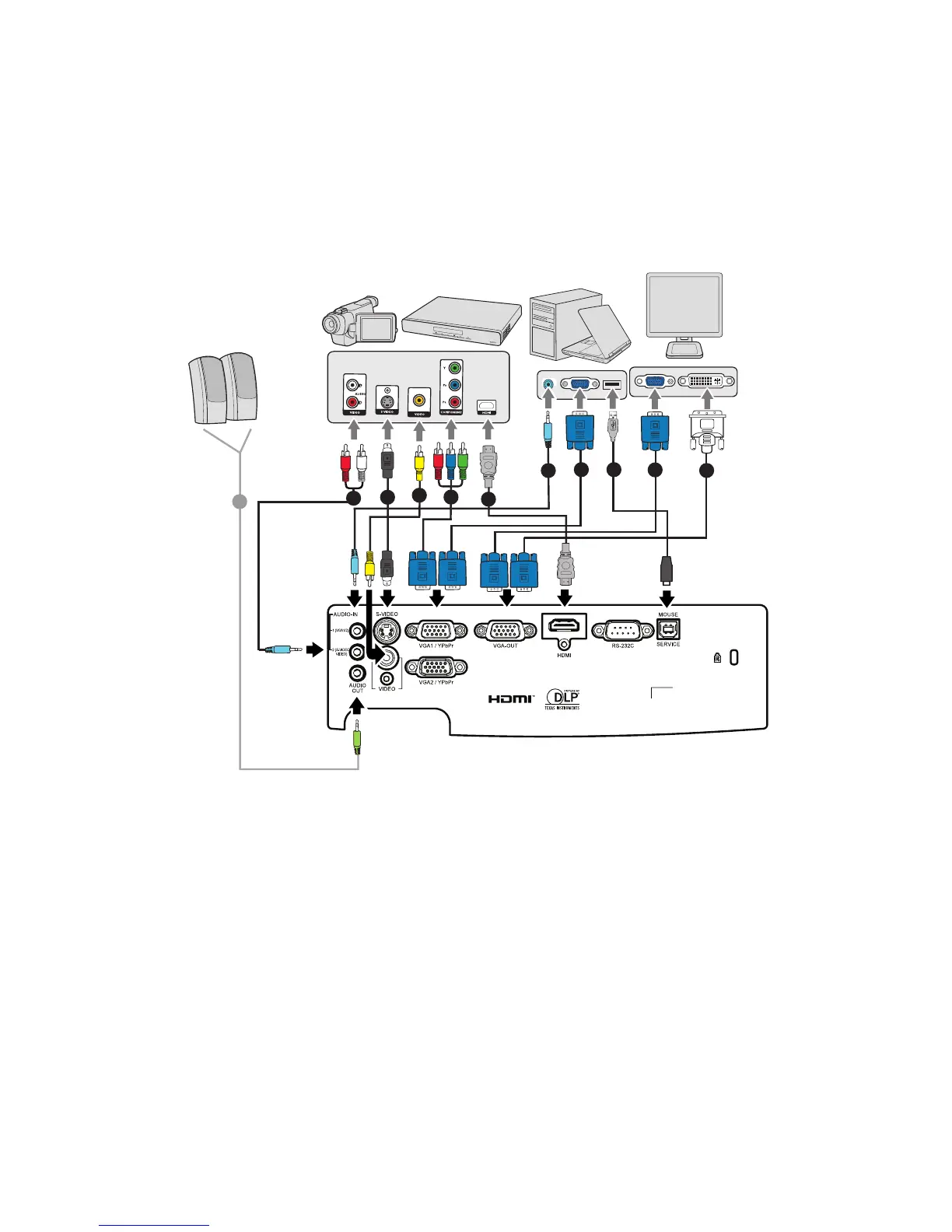

When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
1. ............................................................................................ *Audio cable
2. .........................................................................................*S-Video cable
3. .......................................................................... *Composite Video cable
4. .......................................................*VGA (D-Sub) to HDTV (RCA) cable
5. ............................................................................................ *HDMI cable
6. .................................................................. VGA cable (D-Sub to D-Sub)
7. .............................................................................................. *USB cable
8. .................................................................................*VGA to DVI-A cable
Note
Due to the difference in applications for each country, some regions may have different
accessories.
(*) Optional Accessory
