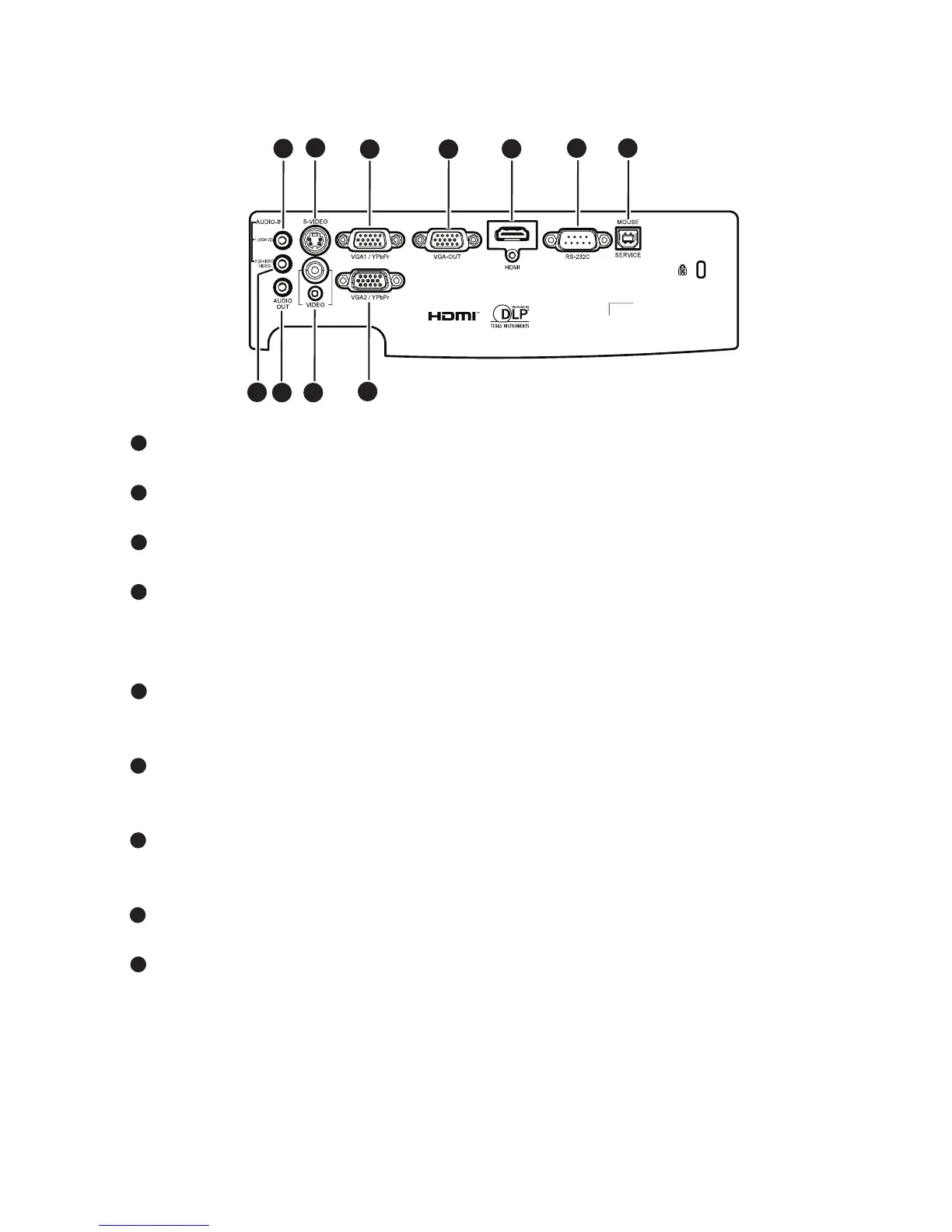

Connection Ports
AUDIO-IN 1
Connect an audio output from a computer to this jack connector.
S-VIDEO
Connect S-Video output from video equipment to this jack.
VGA1/YPbPr
Connect image input signal (analog RGB or component) to this jack.
VGA-OUT
Connect to an external monitor.
In Eco mode (Standby), VGA-OUT is disabled.
In Active mode (Standby), VGA-OUT is enabled.
HDMI
Connect HDMI output from video equipment to this jack.
(This function is only available for products with HDMI input jack.)
RS-232C
When operating the projector via a computer, connect this to the
controlling computer's RS-232C port.
Service/Mouse
This connector supports firmware update, remote mouse and page up/
down.
VGA2-IN/YPbPr
Connect image input signal (analog RGB or component) to this jack.
VIDEO
Connect composite video output from video equipment to this jack.
