EN-50
RS232 Commands and Protocol
Function List

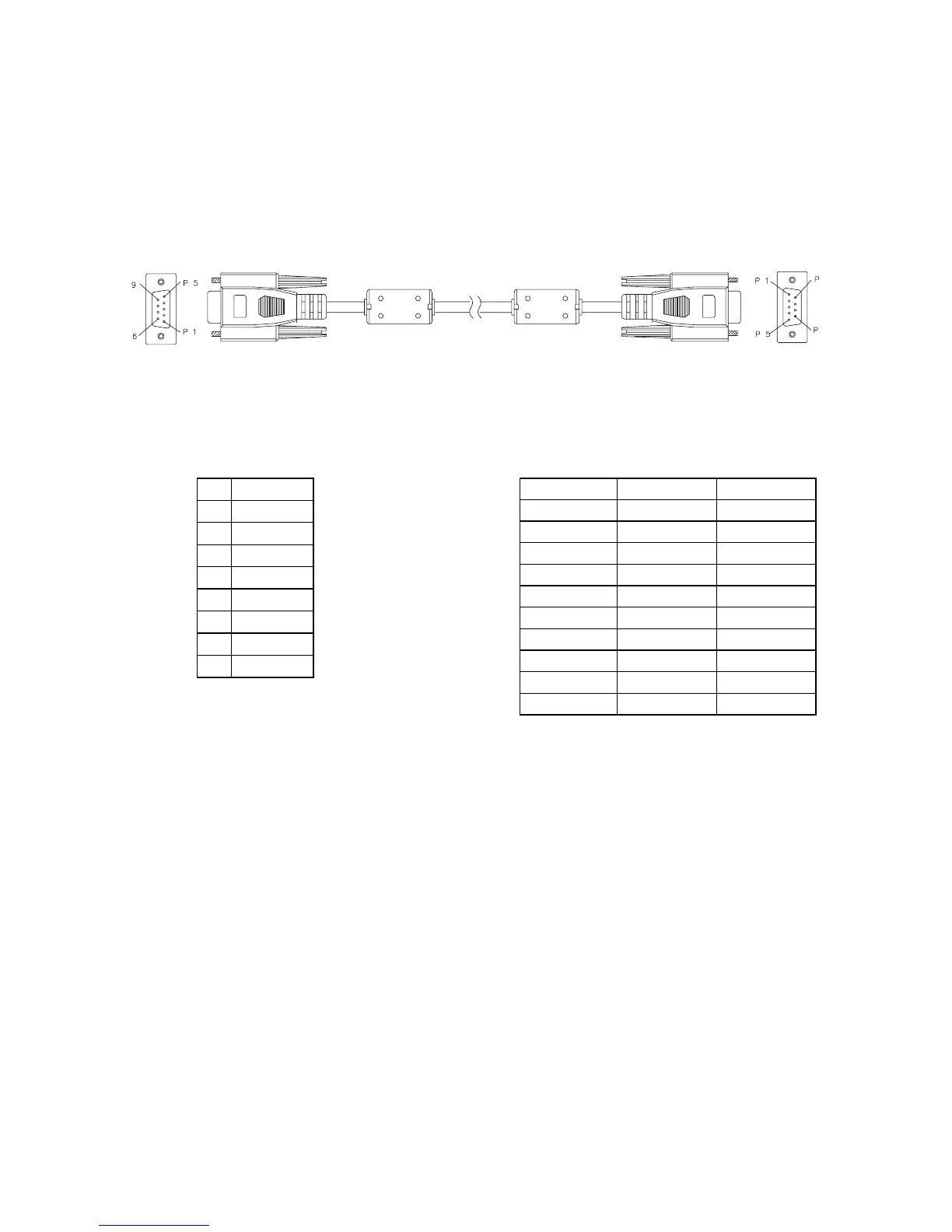

RS232 Pin Assignments
RS232 Protocol Function List
Note
There is a <CR> after all ASCII commands.
0D is the HEX code for <CR> in ASCII code.
Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
XX=01-99, projector's ID,
XX=00 is for all projectors
D-Sub 9 pin
(from the projector side)
11 CD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
Wire List
(from the cable side)
C1 COLOR C2
1 Black 1
2Brown3
3Red2
4 Orange 6
5 Yellow 5
6Green4
7Blue8
8 Purple 7
9White9
SHELL DW SHELL
