Optoma TX7156 - Page 34

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
34
2010/01/11

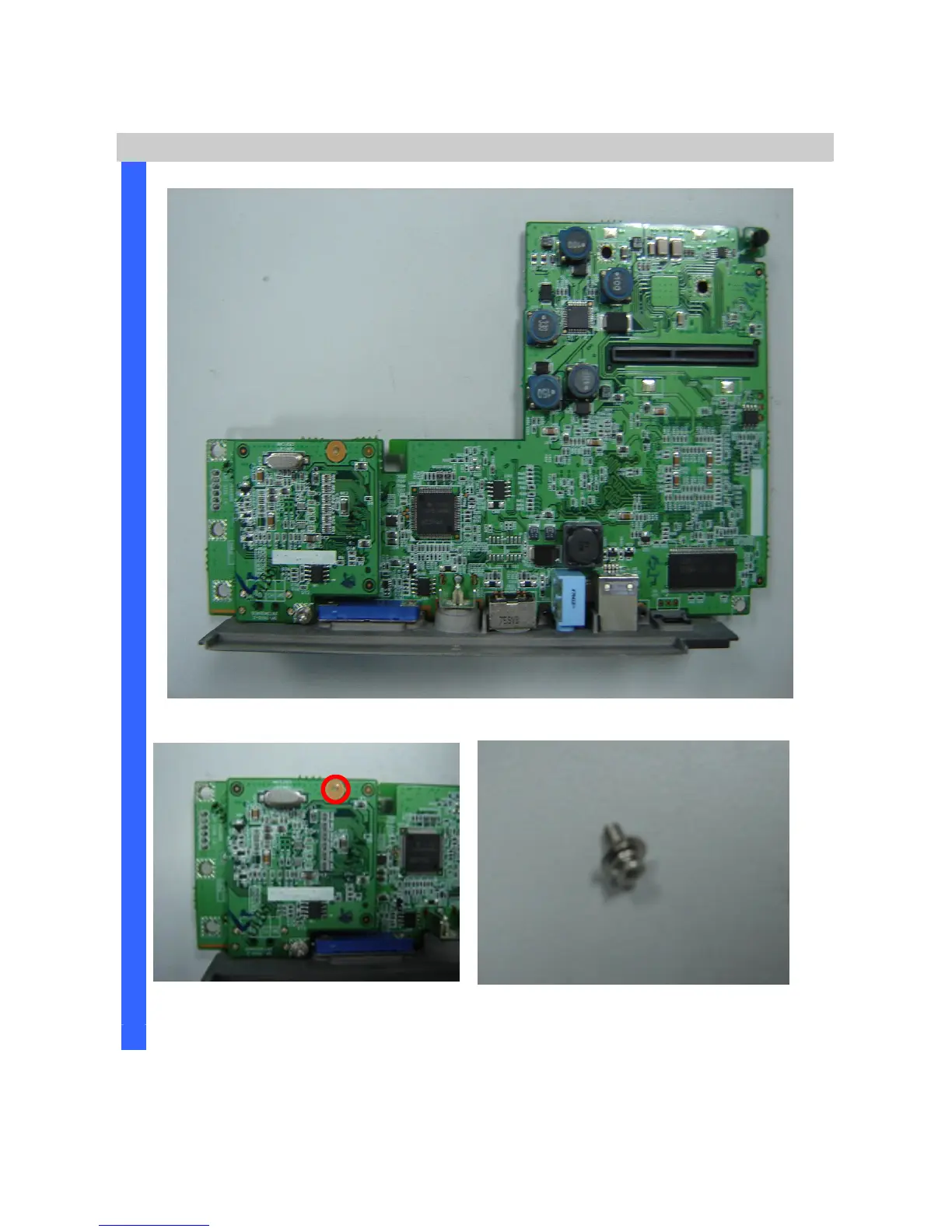

Main Board Review and Removing the HDMI Board
Main Board Review #Bottom side
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw and HDMI board
take off.
Look the screw(S06).
