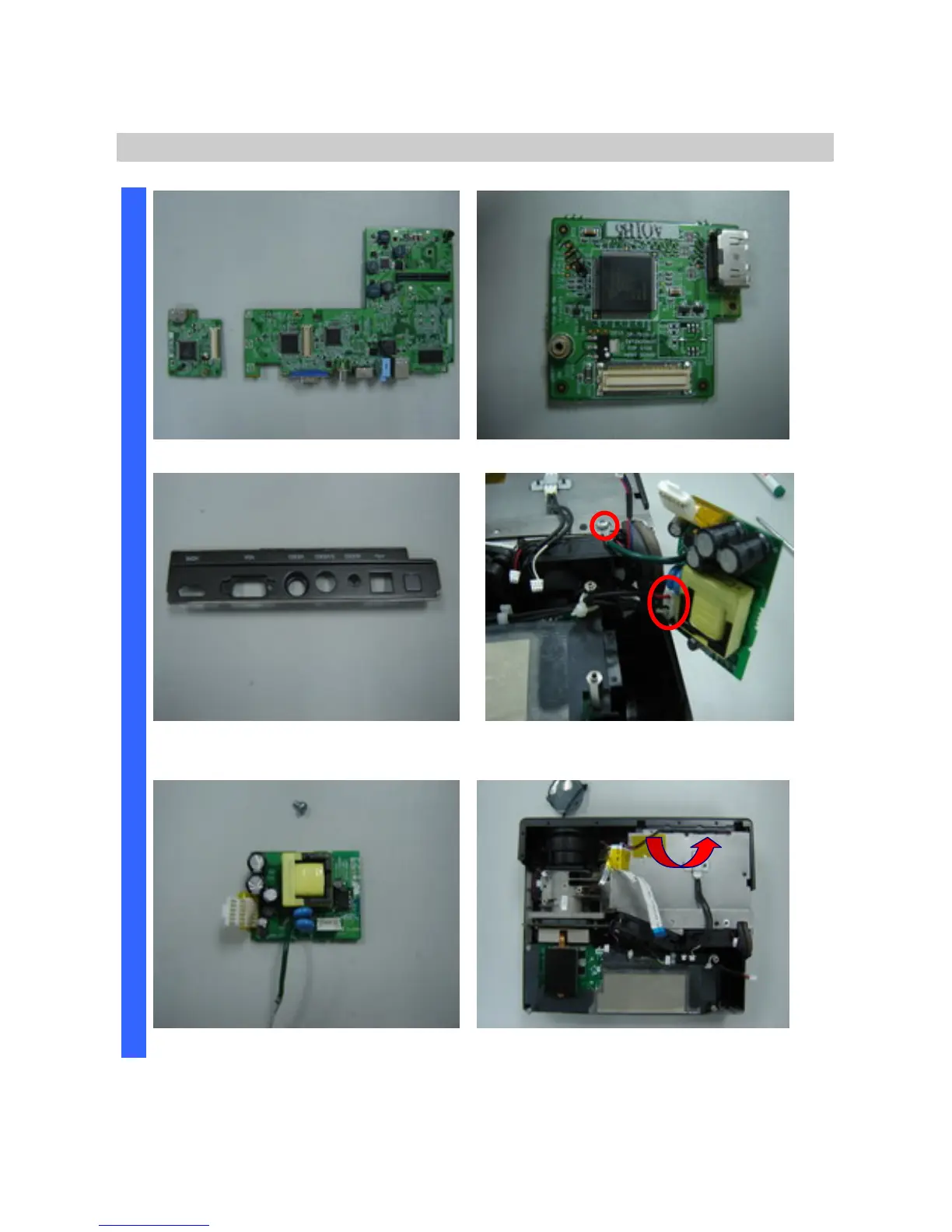

Removing the HDMI Board & Power Board
Review HDMI board and Main board. Review HDMI board.
Review the IO plant. Remove the screw and connector lets
the power board take off.
D
I
S
A
S
S
E
M
B
L
Y
Review the power board and screw (S07)
. Remove the front case.
