Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
36
2010/01/11
Removing the Front Case & the Top Cover Shield

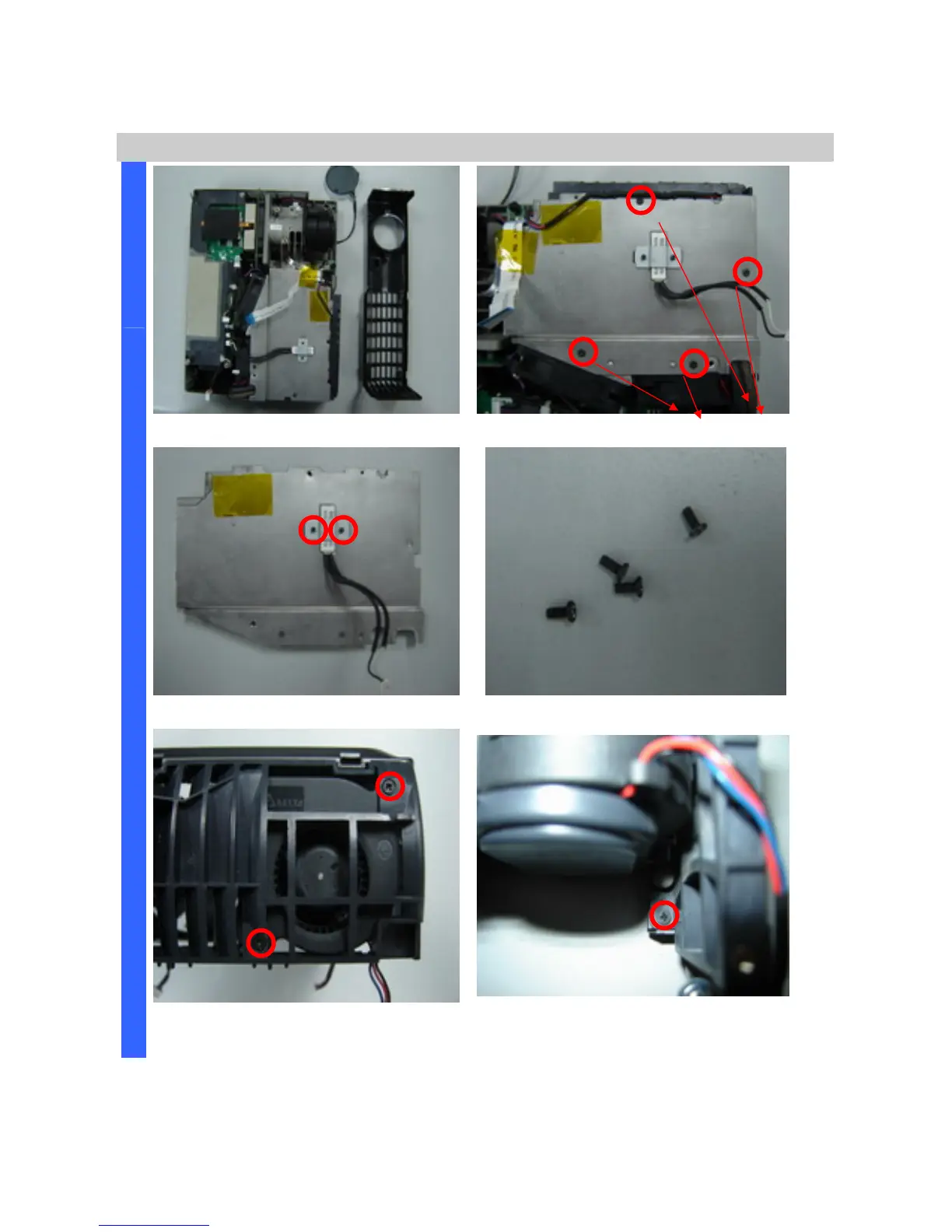

Review the front case and set. Remove the four screws(S08-2 & S08-1).
Review the Shield plant. Review these four screws.
D
I
S
A
S
S
E
M
B
L
Y
Remove the two screws and lets the
fan take off (S09).
Remove the screw (S10).
