SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.

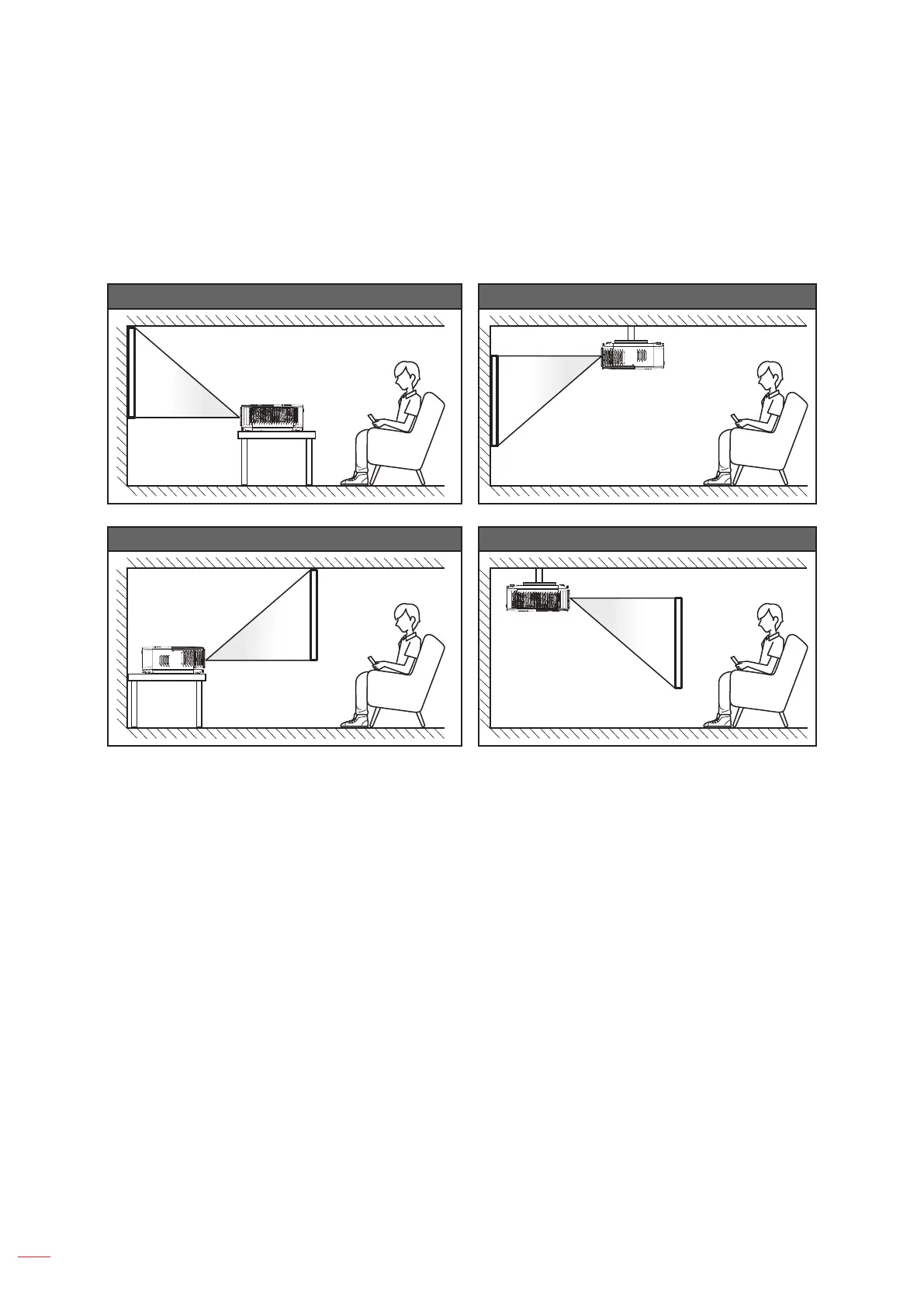

Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
 How to determine projector location for a given screen size, please refer to distance table on
page 67.
 How to determine screen size for a given distance, please refer to distance table on page 67.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate
the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard
installation advise please contact Optoma.

Optoma UHD35x Specifications

General

Product color	White
Product type	Standard throw projector
Market positioning	Home cinema
Native aspect ratio	16:9
Projection distance	1.21 - 9.9 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31 - 135 kHz
Projection technology	DLP
Supported aspect ratios	3:4, 16:9
Contrast ratio (typical)	1000000:1
Screen size compatibility	33 - 300 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-40 - 40 °
RMS rated power	10 W
Number of built-in speakers	1
Built-in display	No
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	305 W
Power consumption (standby)	0.5 W
Offset	105 %
Focal length range	15.84 - 17.42 mm
Supported 3D formats	Frame packing
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Noise level	28 dB
Number of OSD languages	10
Noise level (economic mode)	26 dB
On Screen Display (OSD) languages	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3980 g
