SETUP AND INSTALLATION
Adjusting the projector image
Image height

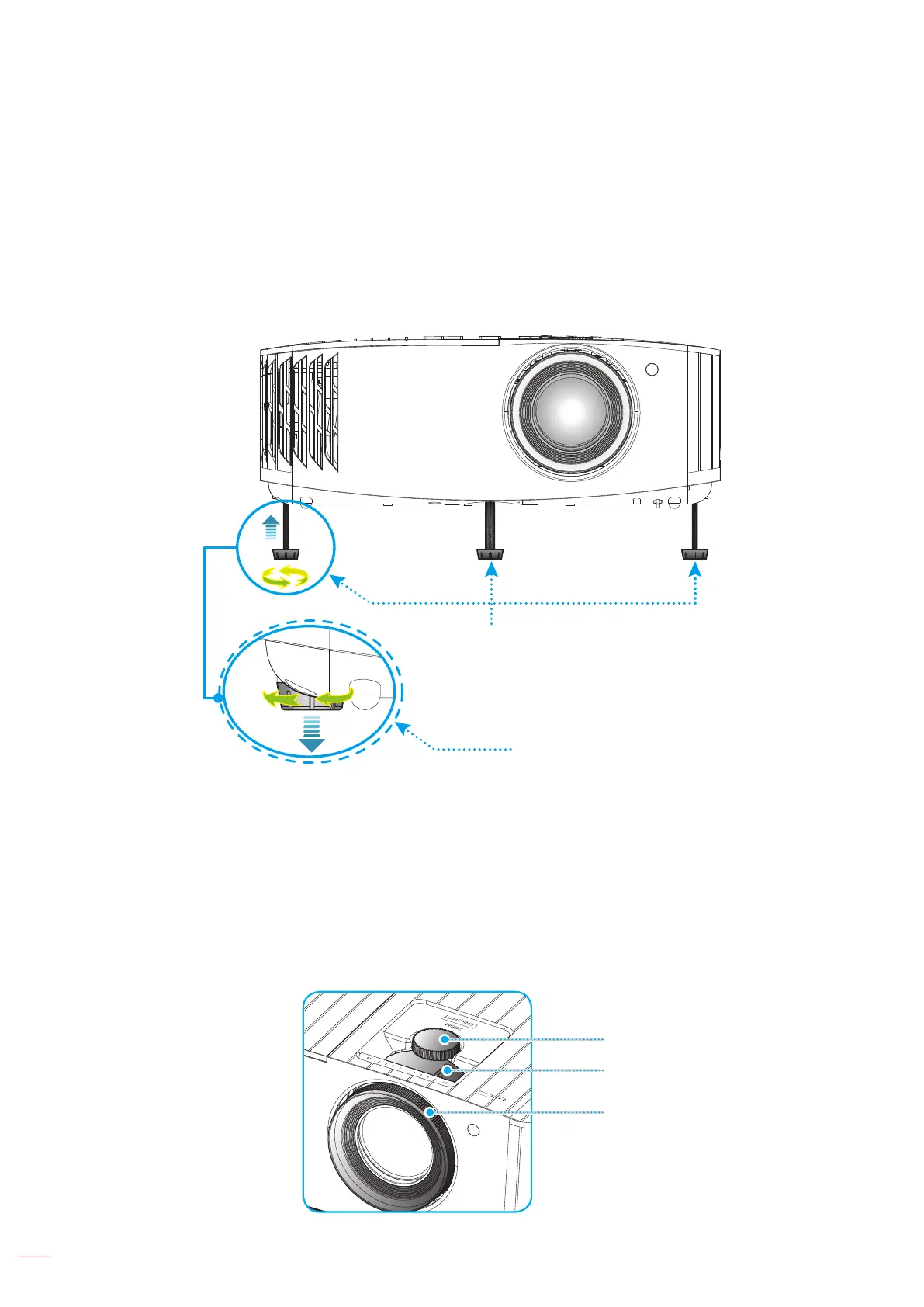

The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
 To adjust the image size and position, do the following:
a. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
b. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
 To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
Lens Shift
Zoom Lever
Focus Ring
Note: The projector will focus at a distance of 1.2m to 8.1m.

Optoma UHD35x Specifications

General

Product color	White
Product type	Standard throw projector
Market positioning	Home cinema
Native aspect ratio	16:9
Projection distance	1.21 - 9.9 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31 - 135 kHz
Projection technology	DLP
Supported aspect ratios	3:4, 16:9
Contrast ratio (typical)	1000000:1
Screen size compatibility	33 - 300 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-40 - 40 °
RMS rated power	10 W
Number of built-in speakers	1
Built-in display	No
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	305 W
Power consumption (standby)	0.5 W
Offset	105 %
Focal length range	15.84 - 17.42 mm
Supported 3D formats	Frame packing
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Noise level	28 dB
Number of OSD languages	10
Noise level (economic mode)	26 dB
On Screen Display (OSD) languages	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3980 g
