MAINTENANCE
Replacing the lamp (continued)
2
1
6
3
4
5

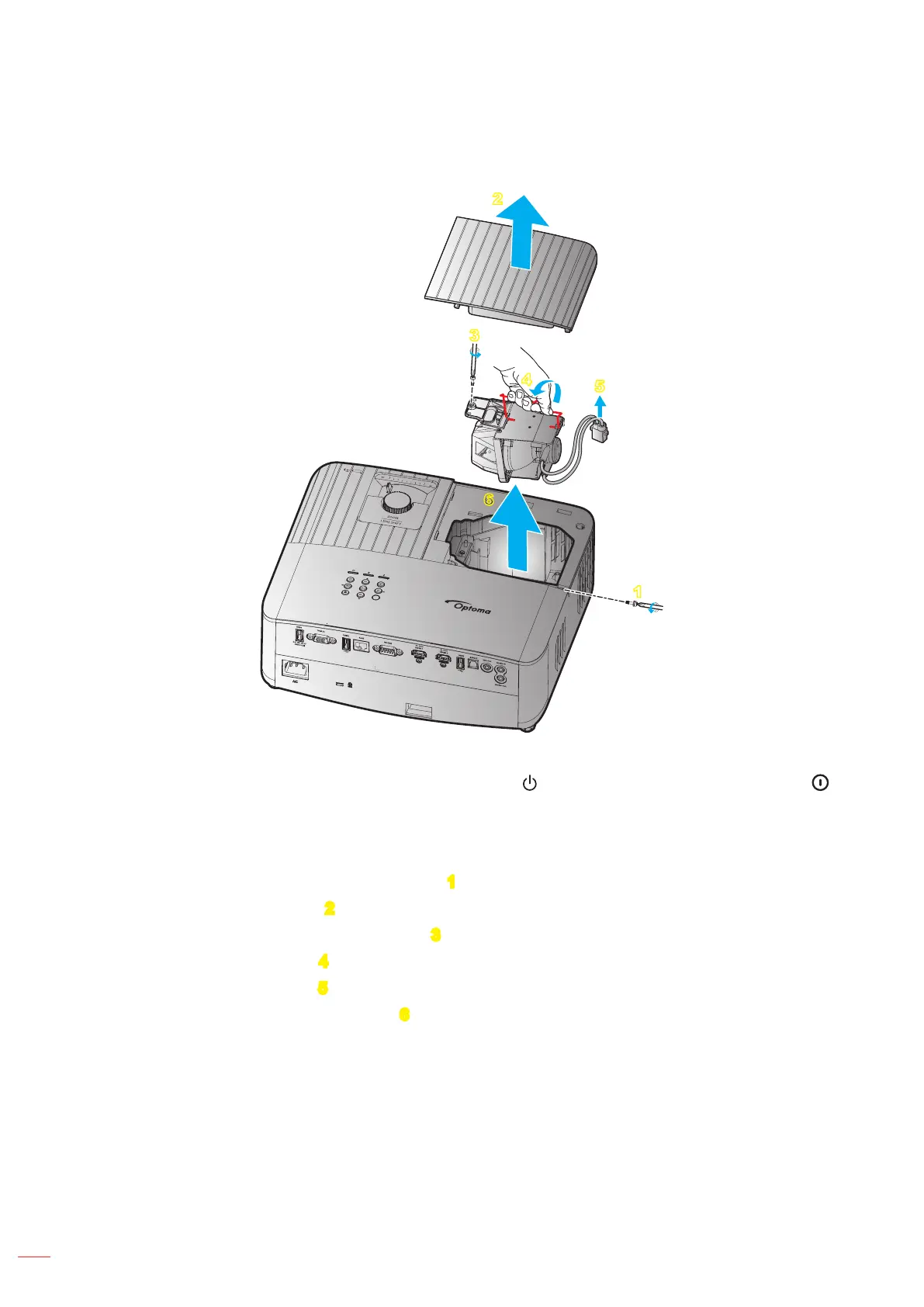

Procedure:
1. Switch o󰀨 the power to the projector by pressing the “ ” button on the projector keypad or the “ ”
button on the remote control.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Remove the screw securing the top cover. 1
5. Remove the lamp cover. 2
6. Remove the screw on the lamp module. 3
7. Lift up the lamp handle. 4
8. Remove the lamp cord. 5
9. Remove the lamp module carefully. 6
10. To replace the lamp module, reverse the previous steps.
11. Turn on the projector and reset the lamp timer.
12. Lamp Reset: (i) Press "Menu"  (ii) Select "Setup"  (iii) Select "Lamp Settings"

(iv) Select "Lamp
Reset"

(v) Select "Yes".
Note:
 The projector cannot be turned on if the lamp cover has not been placed back on the projector.
 Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean
the lamp module if it was accidentally touched.

Optoma UHD35x Specifications

General

Product color	White
Product type	Standard throw projector
Market positioning	Home cinema
Native aspect ratio	16:9
Projection distance	1.21 - 9.9 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31 - 135 kHz
Projection technology	DLP
Supported aspect ratios	3:4, 16:9
Contrast ratio (typical)	1000000:1
Screen size compatibility	33 - 300 \
Projector native resolution	2160p (3840x2160)
Keystone correction, horizontal	-40 - 40 °
RMS rated power	10 W
Number of built-in speakers	1
Built-in display	No
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	305 W
Power consumption (standby)	0.5 W
Offset	105 %
Focal length range	15.84 - 17.42 mm
Supported 3D formats	Frame packing
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Noise level	28 dB
Number of OSD languages	10
Noise level (economic mode)	26 dB
On Screen Display (OSD) languages	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3980 g
