22 Acme Packet 1100 Hardware Installation Guide
SYSTEM INSTALLATION
The following subsections describe these options in more detail and explain the
procedures for each mounting option.
Caution Failure to follow the instructions outlined in this section might
compromise the proper functioning of the Acme Packet 1100.
Unpacking the
Acme Packet 1100
To unpack the Acme Packet 1100:
1. Inspect the external packing materials and note
if they are damaged in any way.
2. Open the exterior box.
3. Unpack the contents of the Acme Packet 1100 shipment.
4. Locate the packing list that comes with the Acme Packet 1100 shipment; the
packing list is located o
utside of the shipment box.
5. Confirm that all of the components listed in the ship
ping box contents are
present and in good condition.
6. If you discover that any of the parts are missin
g or were damaged in shipment,
contact Acme Packet to request assistance.
Mounting
Hardware
The hardware used for the Acme Packet 1100 mounting procedures is presented in
the following subsections.
Equipment Rack
Installation H
ardware
The Acme Packet 1100 can be front- or center-mounted in a standard 19 in or 23 in
wide rack. Optional rack mount flanges are available to attach to each side of the
front of the chassis and then directly to the rack.

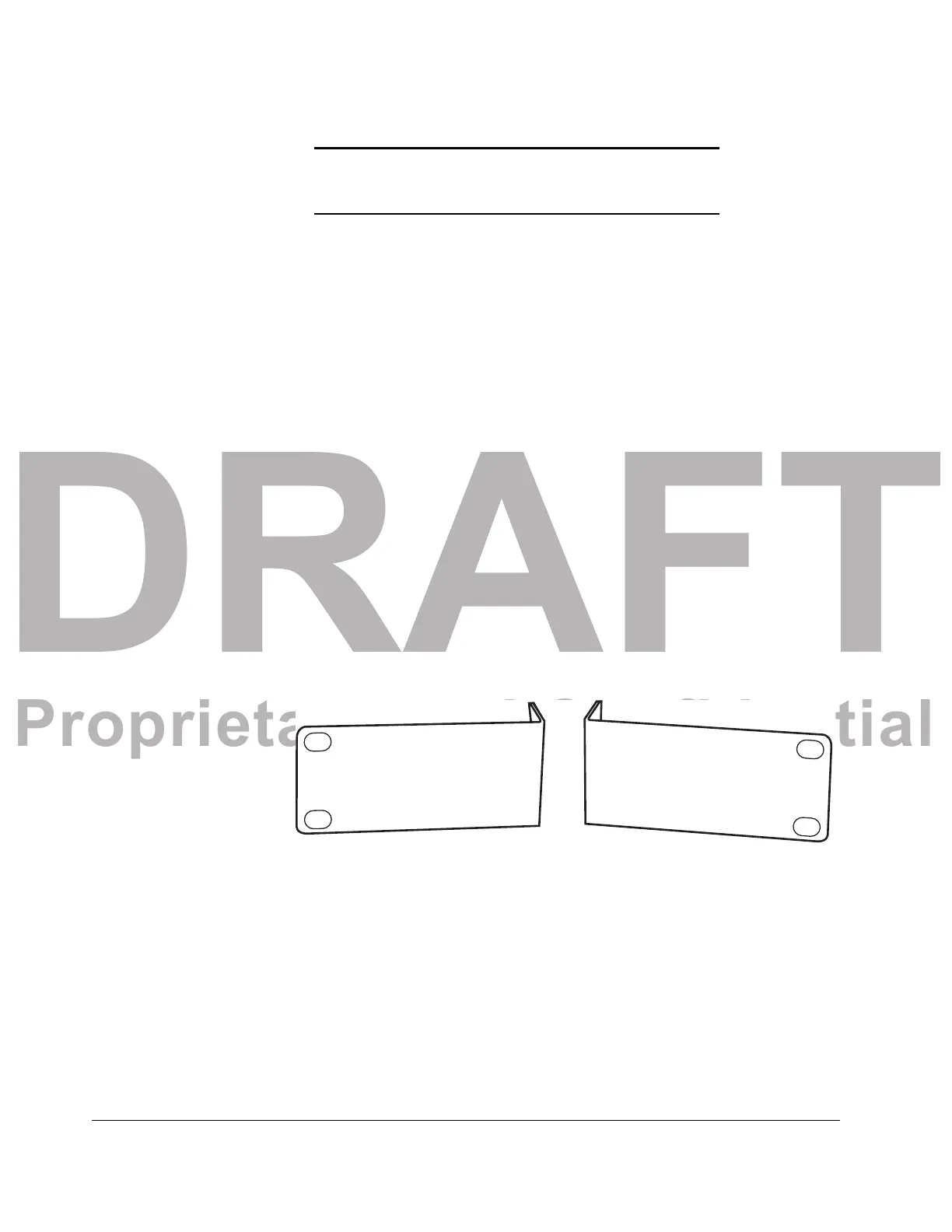

Figure 4 - 1. Rack Mount Flanges (Optional)
