COMPONENT OVERVIEW
Power Components
AC Power Supply Acme Packet offers AC power for the Acme Packet 1100 through an external power
supply that is a user-replaceable component.
There are no ON/OFF switches on the AC power supply or
on the chassis.
Connecting a live AC power cord to the 12V power inlet port on the rear of the
chassis powers up the chassis.

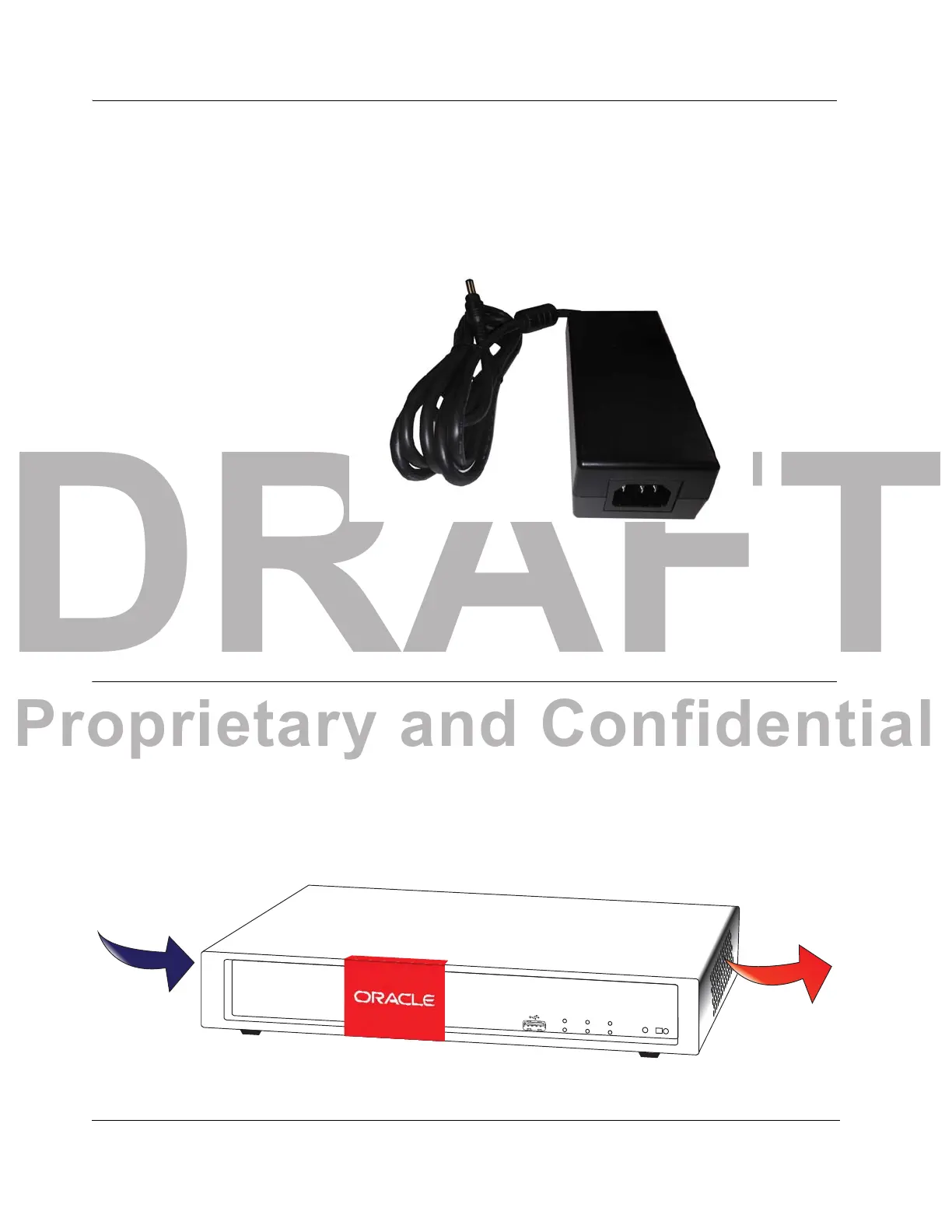

Figure 2 - 6. AC Power Supply
AC Power Cord Different country-specific AC power cords are available for connection to electrical
power outlets for use with the AC power supply. There is no ON/OFF switch on the
AC power supply.
Cooling Components
The Acme Packet 1100 must remain well ventilated for reliable and continuous
operation. The cooling features of the chassis include a solitary fan with vent holes
on two sides of the chassis designed to draw cool air through one side and vented
out of the opposite side.
Intake Fans A single intake fan provides cooling air for the Acme Packet 1100. The fan — located
o
n
the left side of the chassis — blows cool air over electronic components from the
left side of the chassis and vents heated exhaust air through the right side of the
chassis as illustrated below.
NET MGT INT EXT
PWR
ACME PACKET 1100
OK
LNK
ACT
LNK
ACT
LNK
ACT
Figure 2 - 7. Acme Packet 1100 Airflow Path
