SYSTEM INSTALLATION
Acme Packet 1100 Hardware Installation Guide 23
Wall Mount Installation
Hardware
Two optional brackets are available for mounting the Acme Packet 1100 onto a wall
or other vertical surface. The wall mount brackets attach to each side of the chassis
and onto the mounting surface.

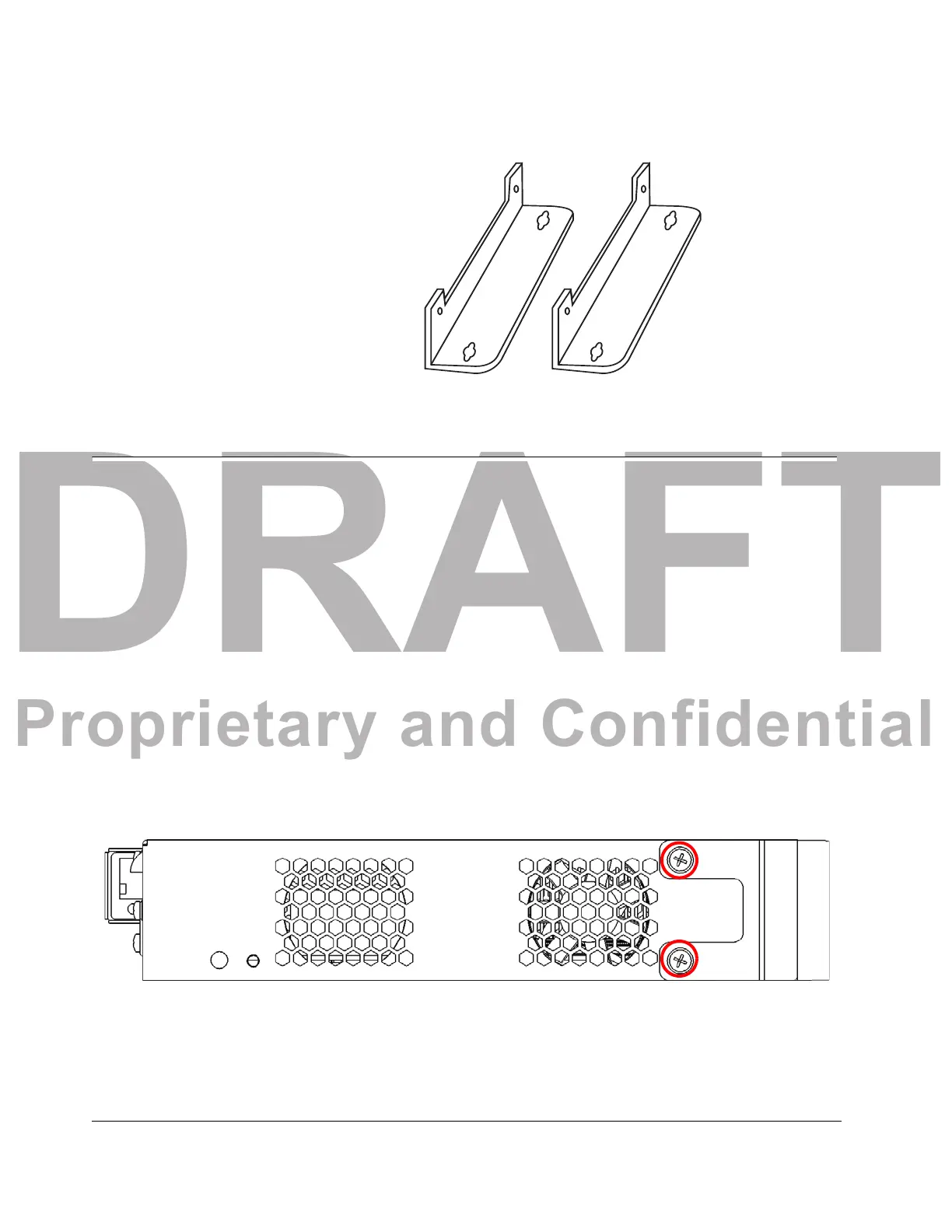

Figure 4 - 2. Wall Mount Brackets (Optional)
Installing the Chassis in a Cabinet-Style 2- or 4-Post Chassis
Rack mount flanges are mounted on each side of the chassis, and the other side of
the flanges are attached to the chassis rack. When the Acme Packet 1100 is installed
in the equipment rack, it is secured in place to the chassis with 2 screws/washers and
to t
he rack with 4 screws/washers.
The following subsections explain how to mount your Acme Packet 1100 in a
cabinet-style, 2- or
4-post equipment rack.
Installing the Rack
Mount Flanges
The following procedure describes how to install rack mount flanges on the Acme
Packet 1100 for use in front-mounting the chassis in a 2- or 4-post chassis rack.
To install rack mount flanges:
1. Locate the following components:
• Rack mount flanges (2)
• (4
) #6-32 x 5/16” screws with square cone washers
2. On the right side of the Acme Packet 1100 chassis, align the holes in the rack
moun
t flange with the two holes toward the front of the chassis.
Figure 4 - 3. Rack Mount Flange Installed on the Right Side of the Acme Packet
1100
