Chapter 4
Installation and Usage
4-4
Using the Quad Battery Charging Cradle
(Optional)

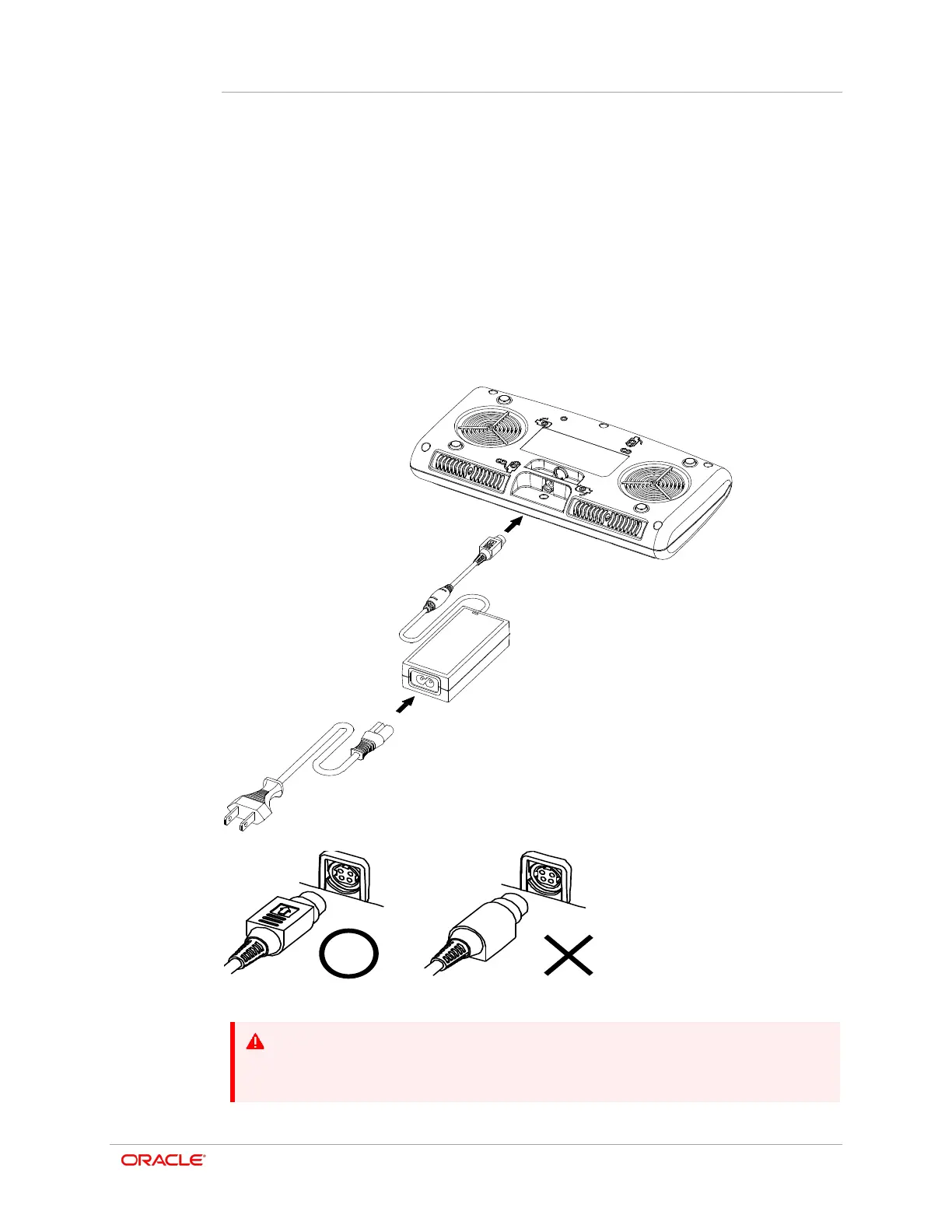

1. Connect the power cord to the power adaptor, and connect the adaptor to the power
connector of the Quad Battery Charging Cradle.
2. Plug the power cord into a power outlet. Input power is 100 ~ 240VAC, 50/60Hz,
1.0A.
3. When power is supplied, the yellow, green, and red LEDs appear for three seconds
during the self-test.
Use only the designated power supply (12VDC, 3A).
