3-60 Operation
x 2B (Two Band) CROSSOVER – Selects the type of crossover filter between the bass and master band.
x 2B (Two Band) BASS COUPLE – Determines how closely the bass band will follow the master band. Less
coupling leads to more independent bass compression.
x 2B (Two Band) GATE THRESHOLD – Determines the lowest audio input signal that will be recognized as
program audio.

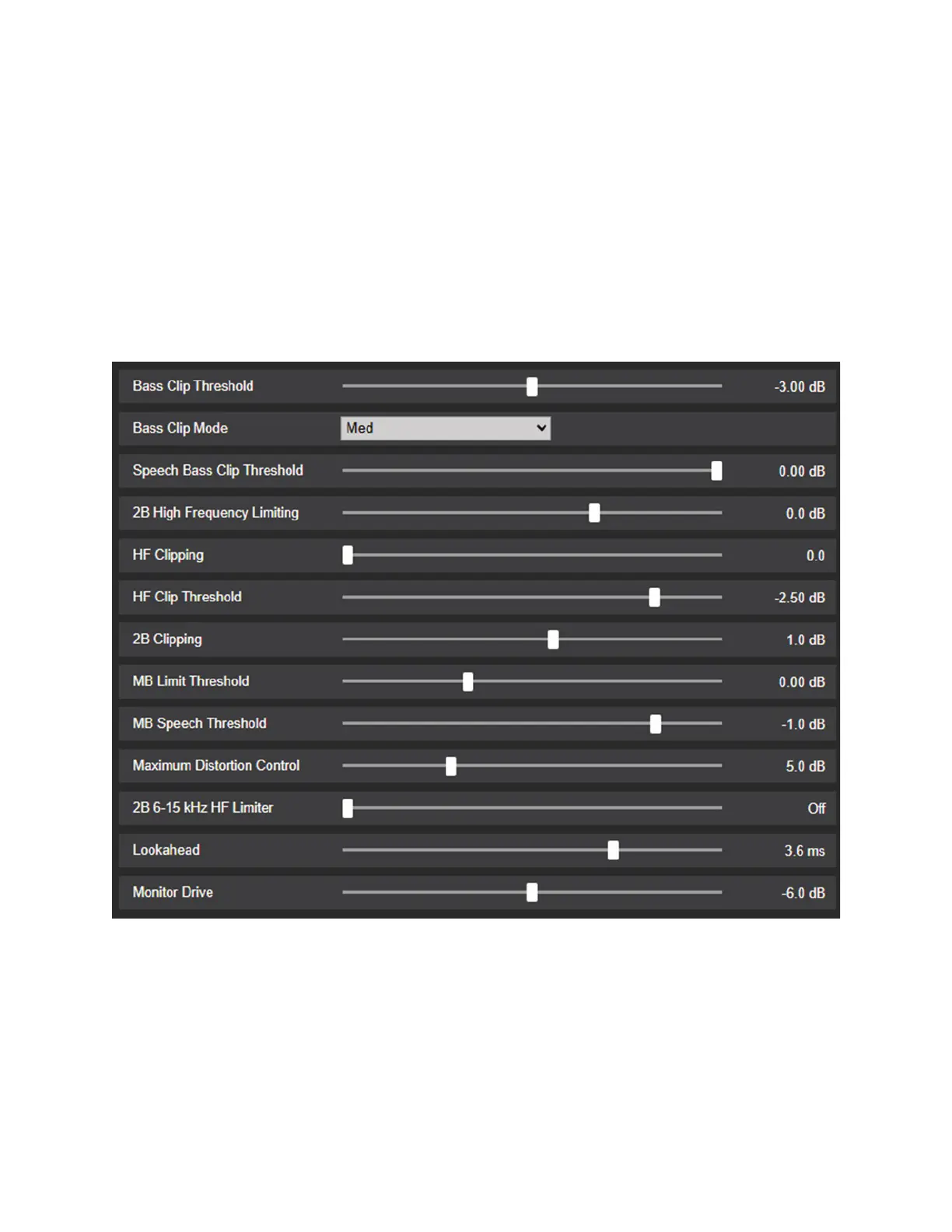

x BASS CLIP THRESHOLD – Sets the embedded bass clipper threshold in dB below the final clipper.
x MEDIUM, HARD and LL HARD.
x SPEECH BASS CLIP THRESHOLD – Sets the hard bass clipper threshold when speech is detected.
x 2B (Two Band) HIGH FREQUENCY LIMITING – Sets the threshold of the high frequency limiter with reference
to the final clipper.
