Orbit DripMaster User Manual

3
Distribution/Supply Tube
The main supply line that feeds
water to the Drip-Irrigation system.
Distribution Tube may be installed
either above or below ground.
(part # 67345 or 67346)
TIP— To make installation easier,
allow the 1/2" Distribution/Supply
Tube to sit in the sun and soften prior
to installation.
4
Tube End Cap
Plugs the end of the 1/2"
Distribution/Supply Tube and
serves as a drain for the Drip-
Watering system. (part # 67462 or
69462)
COMMON USES FOR DRIPIRRIGATION
1. Potted/Hanging plants—page 8
2. Ground Cover and Flower Beds—page 10
3. Large Plants, Small Trees & Shrubs—page 12
Select the application that best matches your needs.
Drip M a s t e r
6 7
DripMaster
®
3
4
SECTION
3

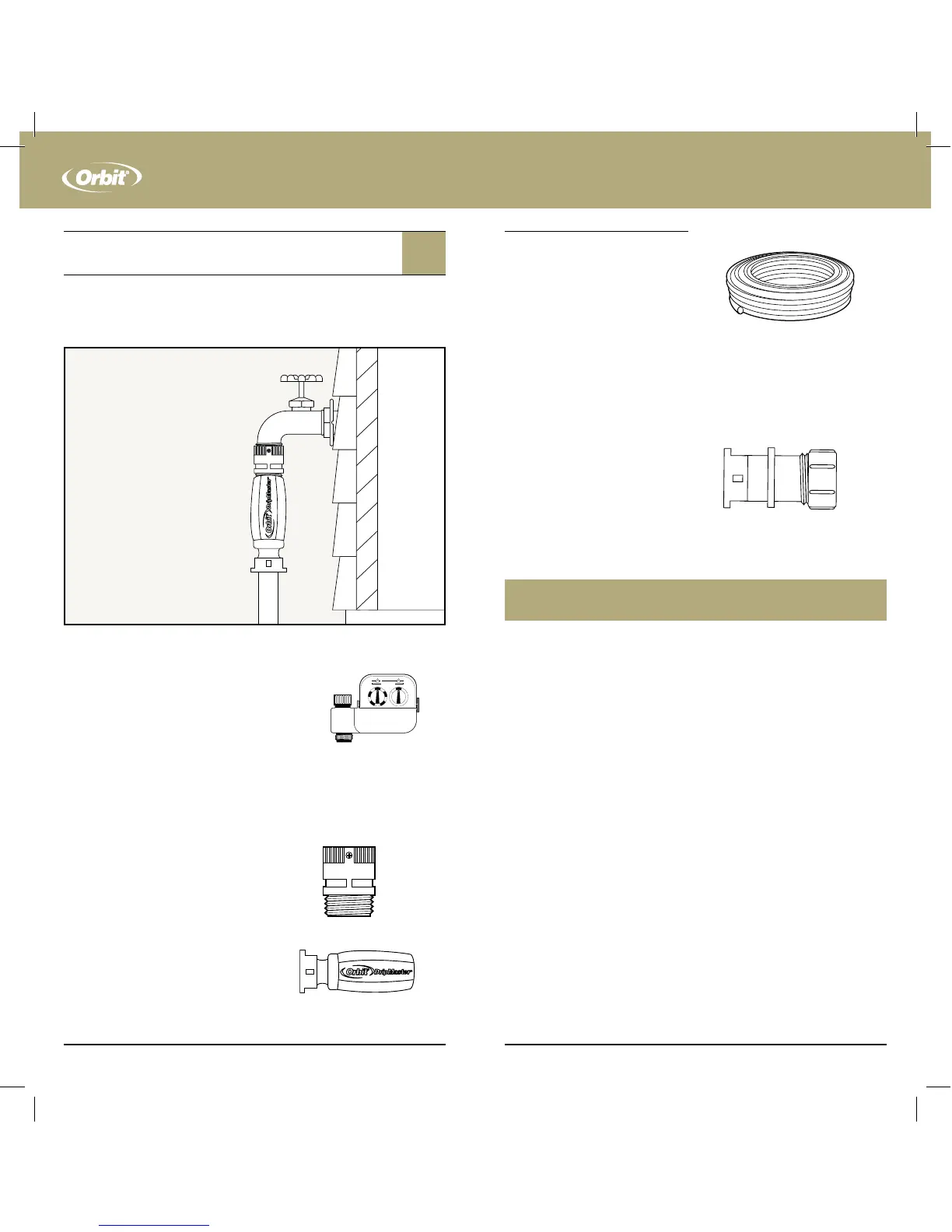

Connecting To A Hose Faucet
CONNECTING TO AN OUTSIDE
HOSE FAUCET
An outside hose faucet is one of the simplest ways to
connect your Drip-Irrigation system.
TIP—For complete hands-free watering,
install an Orbit Electronic Hose Timer
to the hose faucet prior to connecting
your Drip-Irrigation system.
The following items are recommended for your hose
faucet Drip-Irrigation system:
1
Anti-Siphon
Prevents contaminants from entering
your drinking water supply. (Required
in most areas).
(part # 67750 or 69750)
2
3-in-1 Drip Faucet Connection
A Pressure Regulator (20 PSI), Filter,
and 1/2" Drip Tubing Adapter in one.
(part # 67739 or 69739)
Orbit
®
2
3
1
Important: Check local code
requirements prior to installing any
watering system.
Orbit
®
DripMaster
®
| Installation Guide Orbit
®
DripMaster
®
| Installation Guide
