Drip M a s t e r
14 15
DripMaster
®

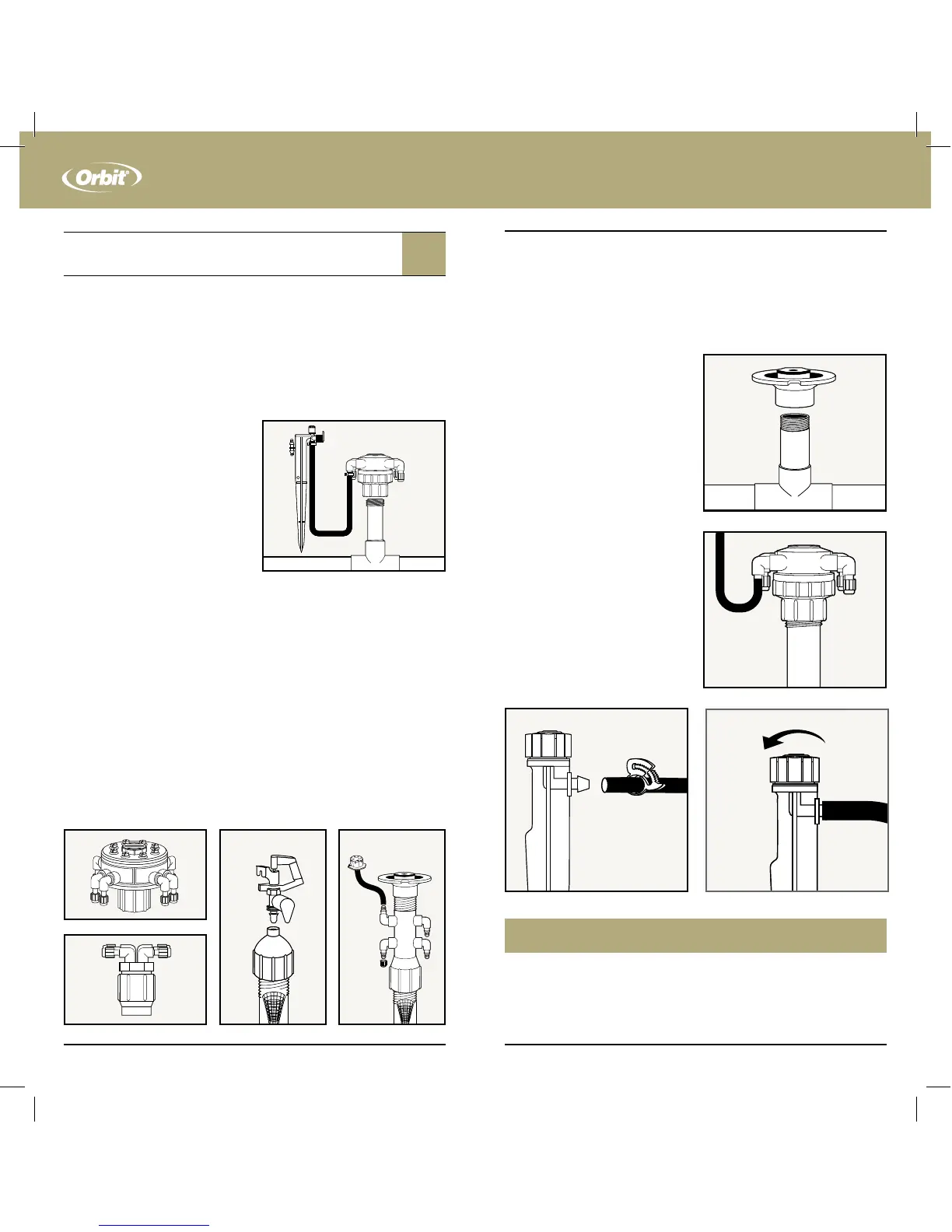

SECTION
5
CONVERTING A SHRUB
HEAD TO DRIP IRRIGATION
Converting a shrub head to drip, using a drip manifold, is a simple way to
supply water to your Drip-Irrigation system. Retrofits are commonly used to
conserve water by replacing inefficient shrub sprinklers and bubblers.
Retrofit Drip-Irrigation
systems consist mainly of
1
Manifold—Attaches to a 1/2" riser
and consists of 1 to 8 outlets.
2
1/4" Distribution/Supply Line
3
Low-Volume Sprinkler, Dripper,
or Soaker Tube
MANIFOLDS
The main function of a Manifold is to distribute water through 1/4" outlets.
There are 4 types of Manifolds
1
Adjustable Flow Manifolds—Ideal when water system pressures
exceeds 40 PSI and where flow control is desired.
2
Full Flow Manifolds—Ideal for replacing inefficient shrub heads and
bubblers.
3
Shrub AdapterIdeal for micro-sprinklers.
4
Riser Adapter ManifoldsPermits Drip-Irrigation without
eliminating a sprinkler head.
Retrofit
3
2
1
1 3
2
4
INSTALLATION FOR ADJUSTABLE
FLOW, FULLFLOW, AND RISER
ADAPTER MANIFOLDS
1
Remove sprinkler head from a 1/2"
Riser and attach the manifold. (For
Riser Adapter Manifold, reattach
sprinkler head).
2
Remove Cap(s) from the 1/4"
Barb(s) and insert 1/4" Distribution/
Supply Line.
3
Attach a Low-Volume Sprinkler or
Drip-Irrigation Dripper to the end of
the Distribution/Supply Line.
4
To avoid high water pressure
failure, install a 1/4" High Pressure
Clamp on all tube connections.
5
Position Drip-Irrigation Dripper
next to plant.
6
If applicable, adjust flow-control
knob for desired flow rate.
1
2
COMMON RETROFIT PROJECTS
1. Container Plants and Shrubs—page 16
2. Shrubs and Large Plants—page 19
