Drip M a s t e r
16 17
DripMaster
®
SECTION
6

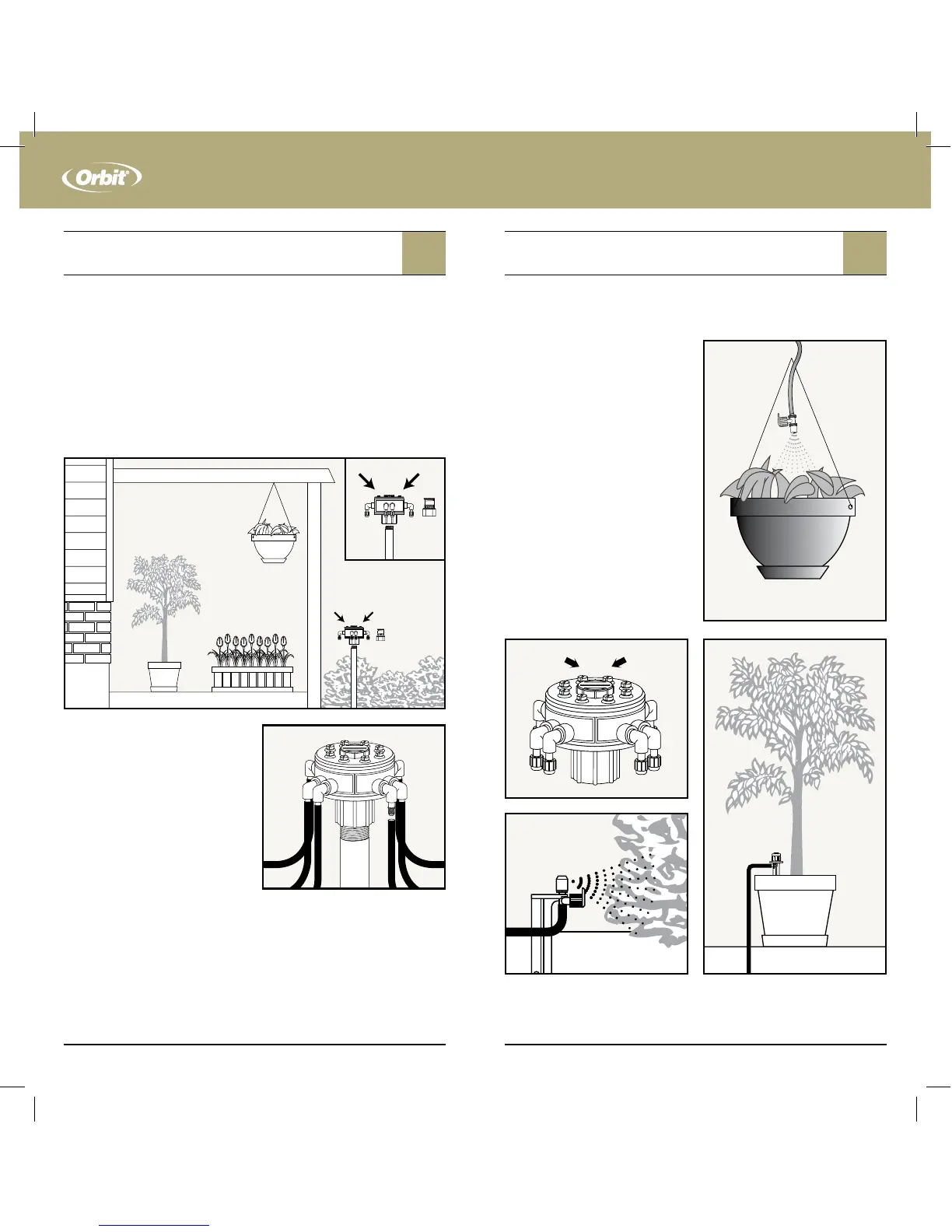

CONTAINER PLANTS AND SHRUBS
Replacing hand watering with Drip-Irrigation
1
Connect an 8-Port or a 4-Port Adjustable Manifold to an exposed shrub
riser. If a vacant riser is not available, use a Saddle Adapter to connect to the
sprinkler line.
2
Remove Caps and attach 1/4" Distribution/Supply Line to each 1/4"
Barb.
3
Run each 1/4" Distribution/
Supply Line to each container. Use
1/4" Tube Straps to hold tube in
place. (Window boxes and large
containers may require more than
one line.)
IMPORTANT: A single 1/4"
Distribution/Supply Line should
not exceed 30'.
4
Flush lines to clear any debris.
5
Select the appropriate Drip-
Irrigation Dripper for each container
and plant.
Common Retrofit Projects
1
2
SECTION
6
HANGING BASKETS AND WINDOW BOXES
Use Orbit’s
®
FlexMist
(part # 66190 or 69190).
POTTED PLANTS
Use Orbit’s
®
Multi-Stream on a Stake
(part # 67105 or 69105) or a Micro-
Bubbler on a Stake (part # 67110).
SHRUBS
Use Orbit’s
®
Low-Volume Sprinkler
Head on 12" Stake. (See Parts List
at end of manual for spray pattern
options)
6
Adjust the flow rate by
turning the flow control screw.
Continued on next page
Common Retrofit Projects
Flow
Control
6
Orbit
®
DripMaster
®
| Installation Guide Orbit
®
DripMaster
®
| Installation Guide
