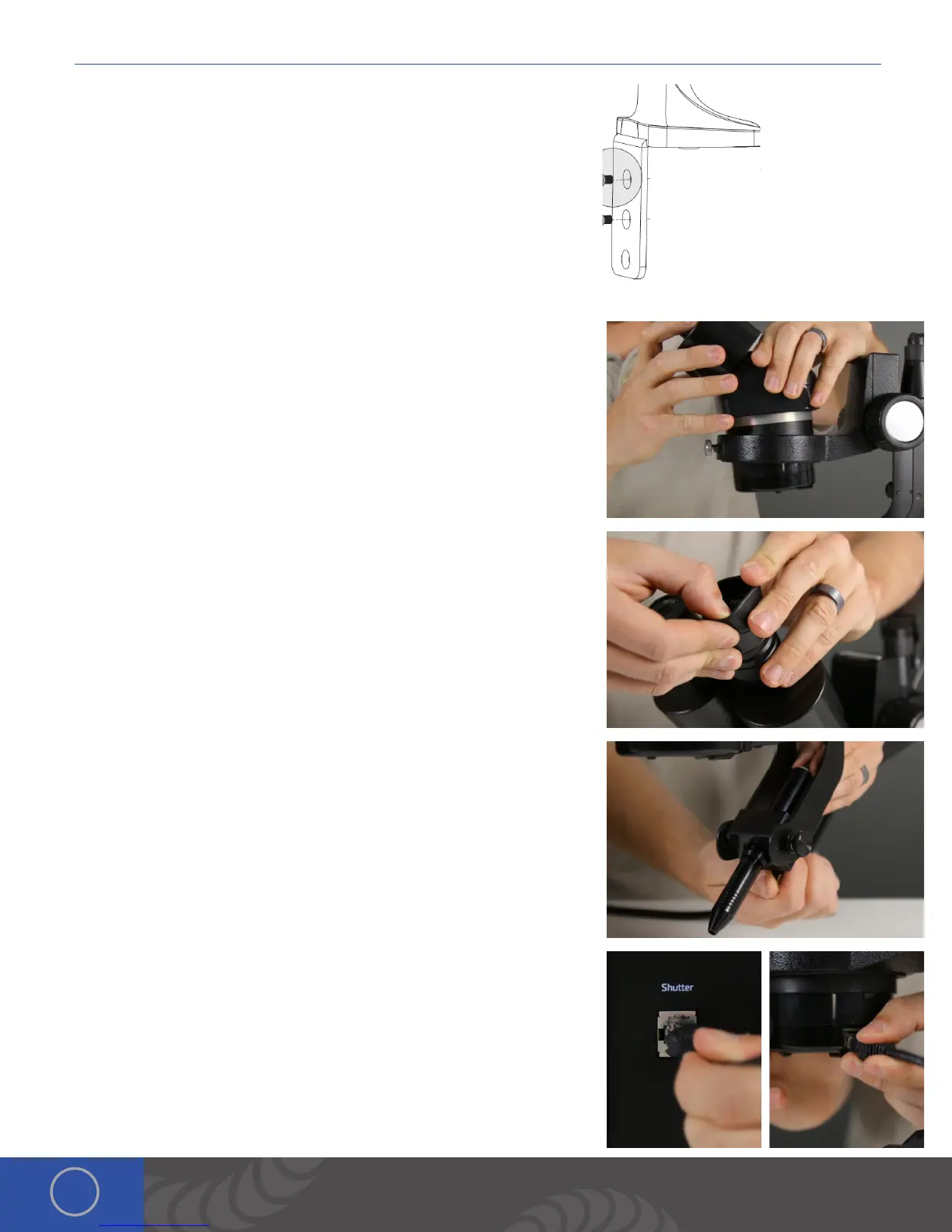

Mounting Option 3 - Bolt to table
• Remove the clamp and position the base against the table.
• Trace drill holes with a pen or marker.
• Drill 1/4’ holes in the tabletop.
• Run screws through the base into the drilled holes.
MICROSCOPE SETUP
• Remove the microscope from the box and place it into the round clamp
at the top of the arm.
• Tighten the screw on the round clamp to secure the microscope to the
arm.
• Install the rubber eyepiece covers onto the microscope lenses.
• Insert the welding stylus into the stylus holder under the microscope
then tighten the stylus holder knob.
• Ensure the microscope cable is plugged into the RJ45 port on the
microscope (the bottom of the microscope head).
• Ensure the microscope cable is plugged into the “Shutter” port on the
back of the power supply.
*Orion RJ45 ports are not compatible with any other RJ45 ports. Connecting
them to other devices may damage the welder and/or the other devices.
