Chapter 3: Make a Weld
Gray Waveform
• When the welder is paused the waveform screen will appear gray.
Remember to push play in order to perform welds.

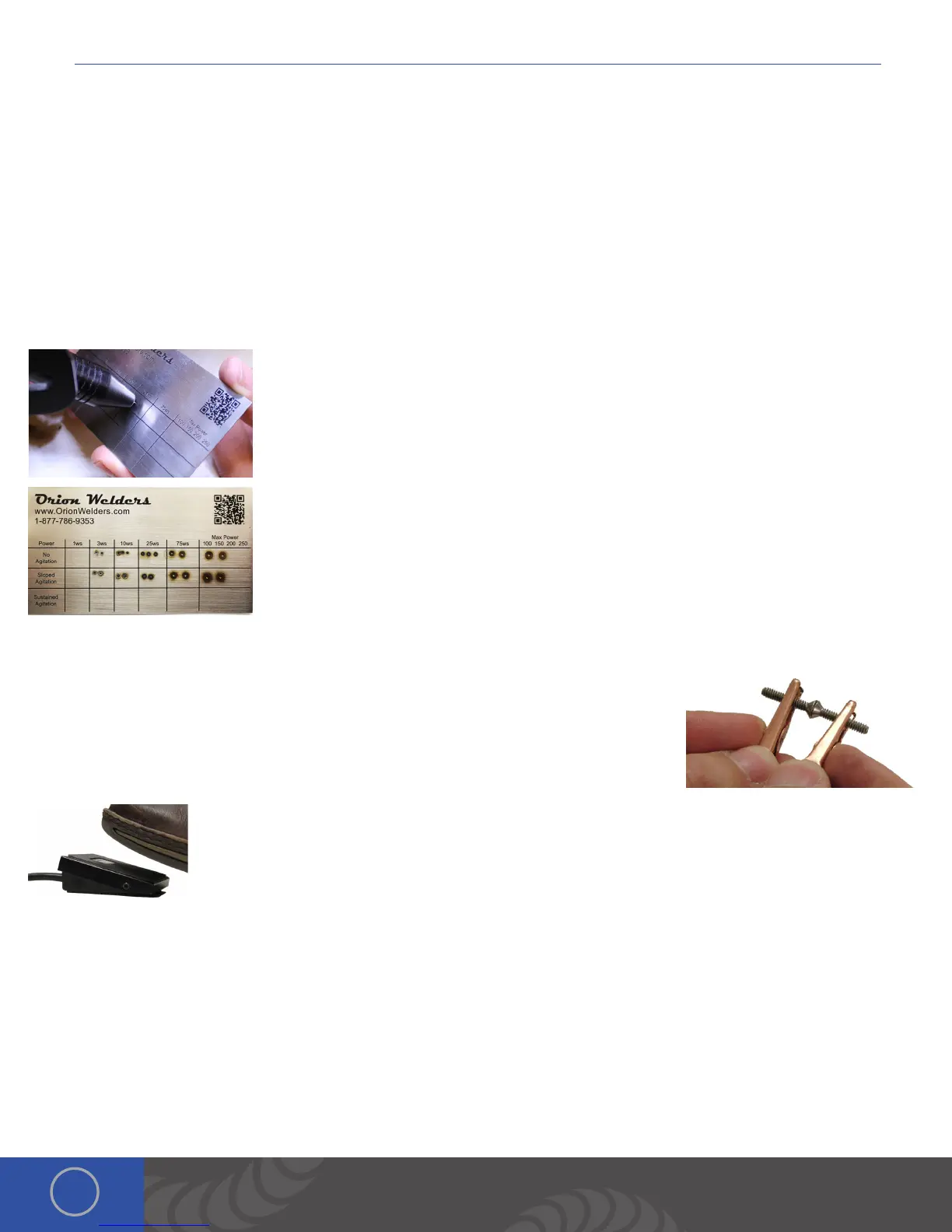

Make An Arc Weld (using the provided weld plate)
1. From the Arc Screen select 16 Ws on the Energy bar, 15 ms on the Length bar, Reverse Agitation from the Agitation options,
51 on the Percentage of Weld bar, Standard from the Ignition options, Single Fire on the Welds Per Second bar, Touch Detect
for trigger type, and then hit Play. *Remember to verify the gas pressure and microscope connection, .
2. Lightly touch the electrode in the box on the provided weld plate. Maintain contact &
keep hands steady by resting them on the table.
3. Use the provided stainless steel weld plate as a guide to try different settings. Make
several welds on the weld plate to get comfortable with the stylus and the different
weld parameters.
Make a Tack Weld
1. Select Medium from the Quick Power Settings row, Short from the Pre-Weld Delay row,
Foot Pedal for the Trigger Type, and then touch the Play button.
2. Attach the negative alligator clip to one work piece and the positive alligator clip to the
other work piece.
3. Lightly touch the two work pieces together where you want to tack them.
4. Step on the foot pedal.
5. If the work pieces stay together, proceed to the Arc screen to perform a permanent
weld using the Pulse Arc Welding Stylus. If the pieces do not stay together, move the Total
Energy up and repeat steps 2-4.
Chapter 4: Recommended Welder Settings
General Settings
• ese settings are to help users get started. Remember to adjust the power up and down as needed.
