General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Operations sequence
Disconnection

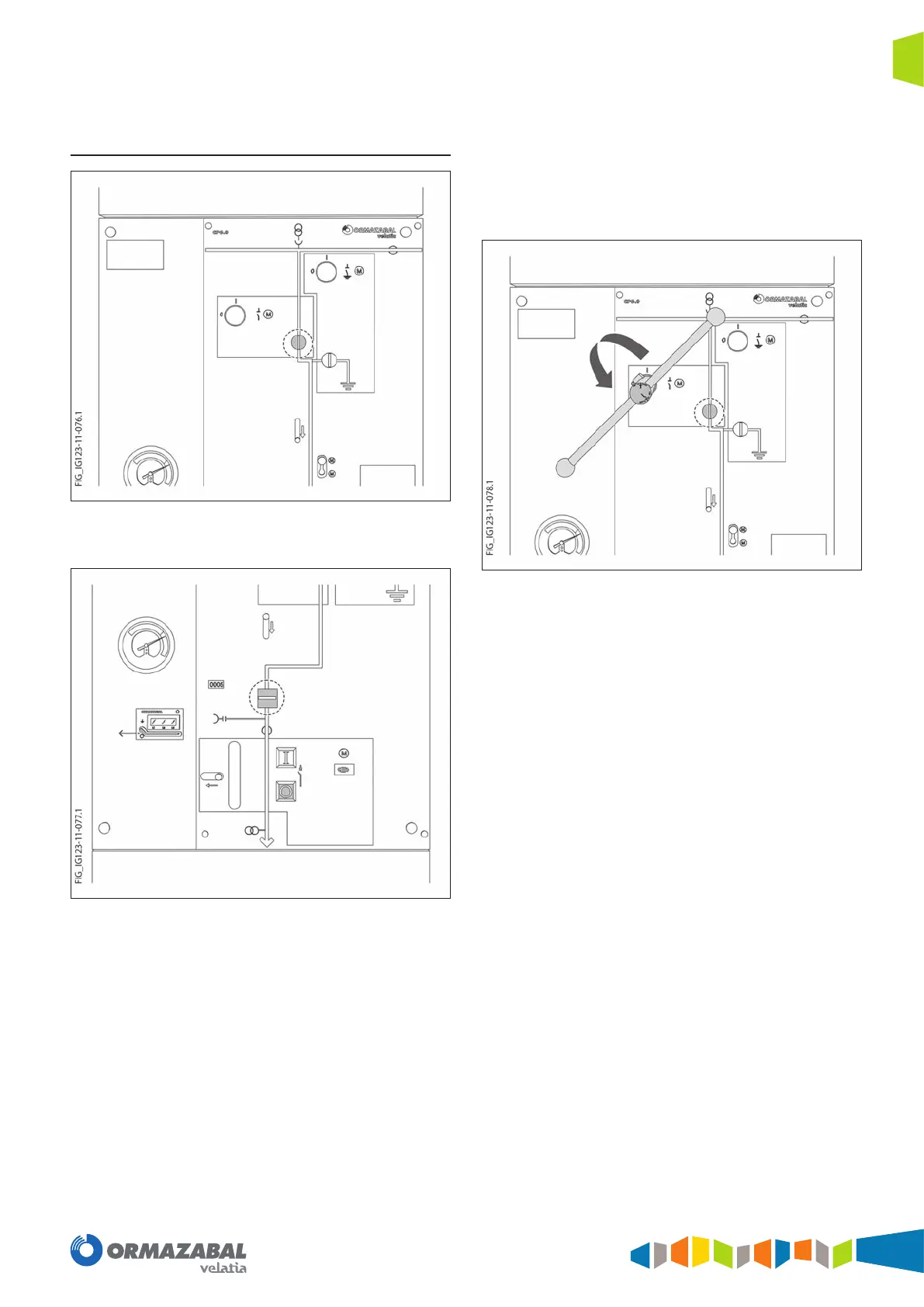

Figure 7.29. Starting position of the cpg.0-v disconnector
Press the "0" pushbutton to disconnect the circuit-breaker.
Figure 7.30. Circuit-breaker opened indicator
Insert the lever in the feeder disconnector's actuating shaft.
Then turn 90º ANTI-CLOCKWISE. Check that the feeder
disconnector status indicator shows opened.
Figure 7.31. Feeder disconnector opening sequence
