Operations sequence General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Voltage transformer disconnector operation
This characteristic is only available in the following
models:
• cpg.0-v up to 36 kV, 1250 A outgoing current and
25 kA short-circuit current.
• cpg.0-v up to 12 kV, 2000 A outgoing current and
25 kA short-circuit current.
Initial operations
Starting position:
Feeder disconnector OPEN, earthing switch CLOSED
and circuit-breaker CLOSED. See operations sequences
in chapter 7.1.2.
Check that there is no voltage in the outgoing cables:
the indicator lights in ekor.ivds voltage detectors must
be switched o (see chapter 8.1 for more information).
1. Remove the cable compartment cover.

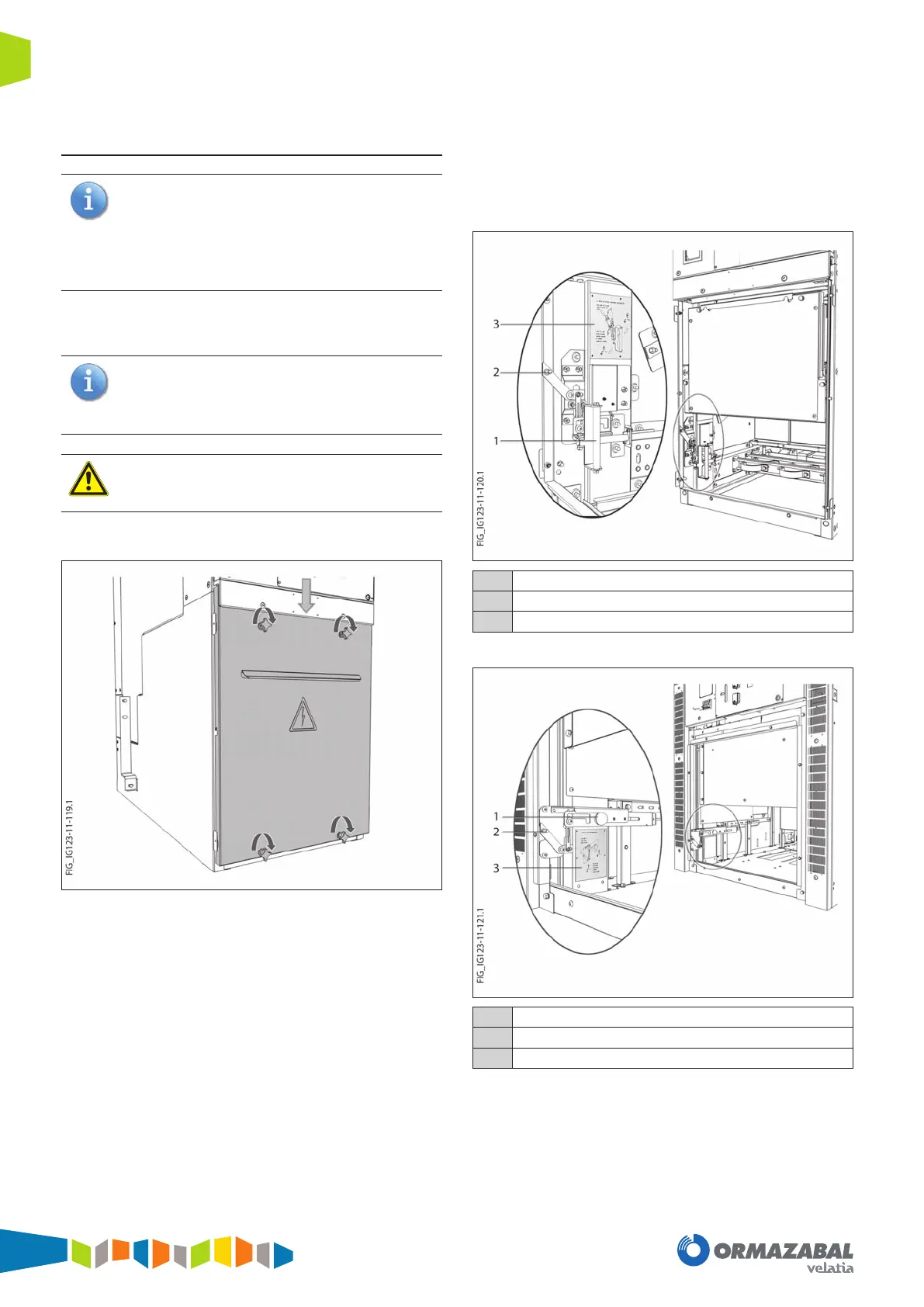

Figure 7.32. Cable compartment cover opening
Disconnecting the voltage transformers
The voltage transformer disconnector's actuating
mechanism is located in the bottom left-hand side of the
cable compartment.
1
Voltage transformer disconnector actuating mechanism handle
2
Mechanism locking lever
3
Abridged operating instructions
Figure 7.33. Actuating handle location cpg.0-v 36 kV/1250 A/25 kA
1
Voltage transformer disconnector actuating mechanism handle
2
Mechanism locking lever
3
Abridged operating instructions
Figure 7.34. Actuating handle location cpg.0-v 12 kV/2000 A/25 kA
