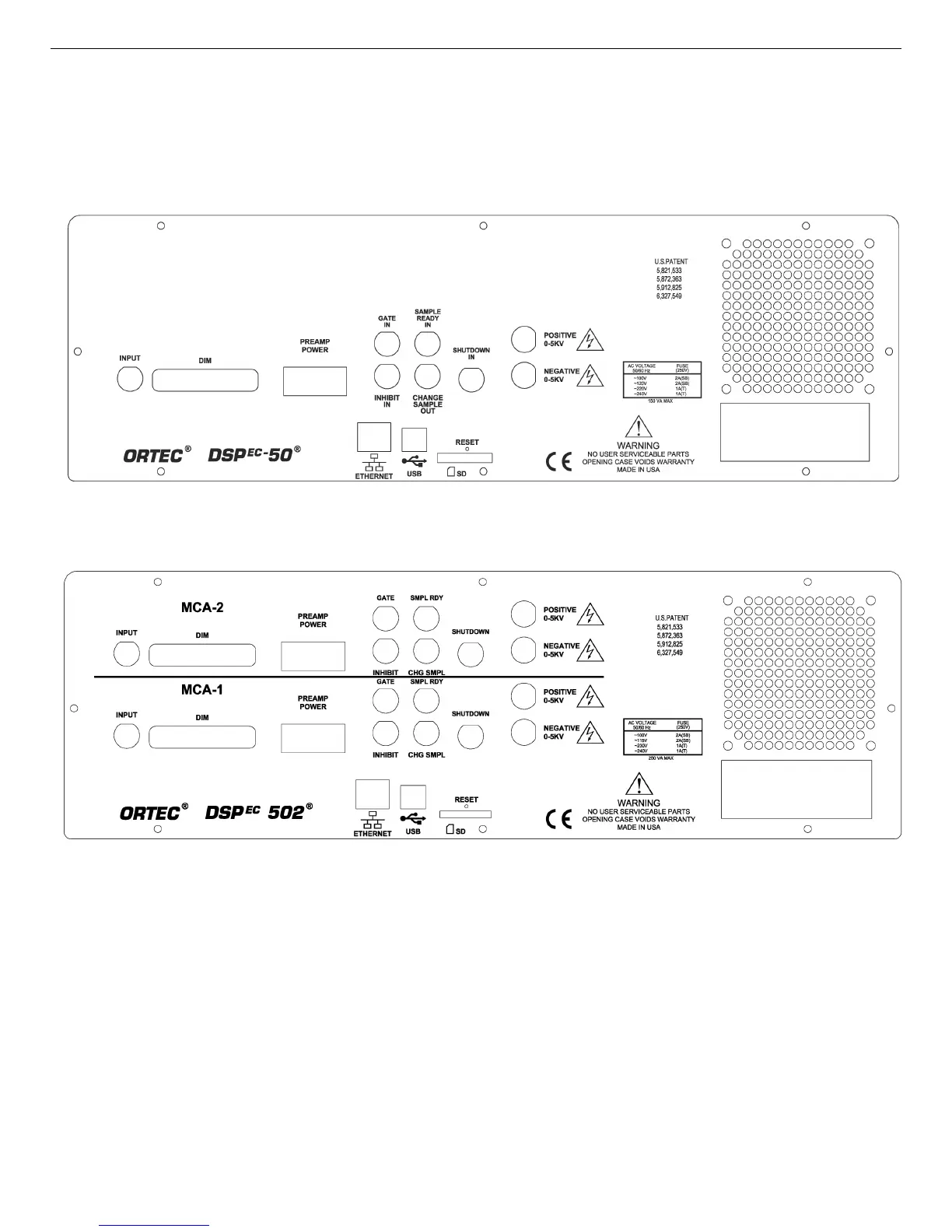

Figure 17. The DSPEC 50 Rear Panel.
Figure 18. The DSPEC 502 Rear Panel.
INPUT Rear-panel BNC accepts preamplifier output signals of either polarity.
PREAMP POWER Rear-panel, 9-pin D connector; provides ±24 V and ±12 V for
preamplifier power.
GATE IN (GATE) Accepts slow-positive NIM input; Software-selectable as off,
coincidence, or anticoincidence.
INHIBIT IN (INHIBIT) Rear-panel BNC connector accepts reset signals from TRP or POF
preamplifiers.
